AD9850 module modest capacity AD9850 DDS Function Generator up to 40MHZ new

 2W2I0XW$C0X}6B%}X%RXU)9

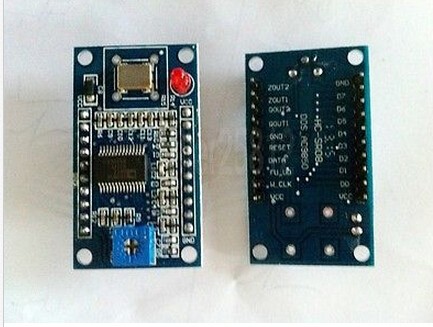

Module can output sine wave and square wave， two sine wave and 2 square wave output .

AD9850: 0-40MHz

Frequency after 20-30 MHZ ，the harmonic is more and more big， the waveform will be more and more unsharp.

Square: 0-1 MHZ

Using 70 MHZ low pass filter， make the wave of SN ratio better .

Produce DA benchmark pin (PIN12) extraction， convenient to output waveform amplitude control application.

The comparator reference input terminal voltage produced by variable resistance， Adjust the resistance can get different duty wave.

AD9850 module adopts 125 MHZ active crystal oscillator.


We can offer the data for this module ，but we can\'t  provide technical support .Thanks !





';
Unit Type:
piece
Package Weight:
0.200kg (0.44lb.)
Package Size:
10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
