Item Descriptions:

Product introduction

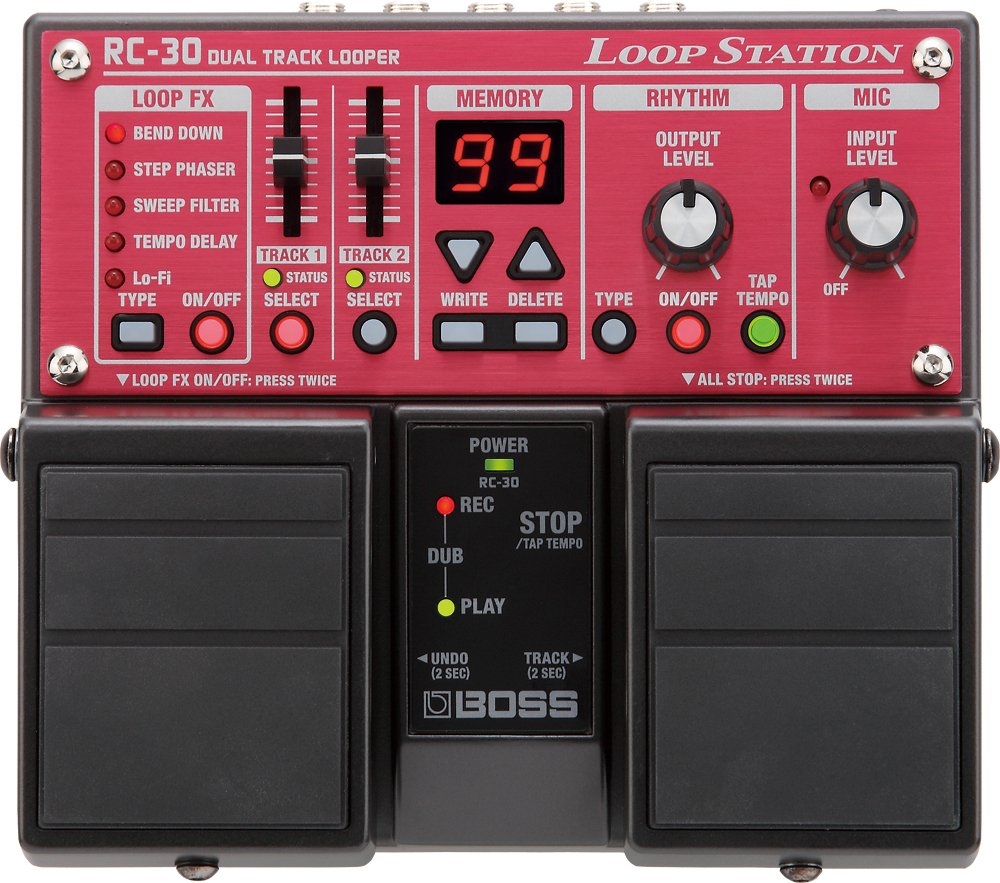

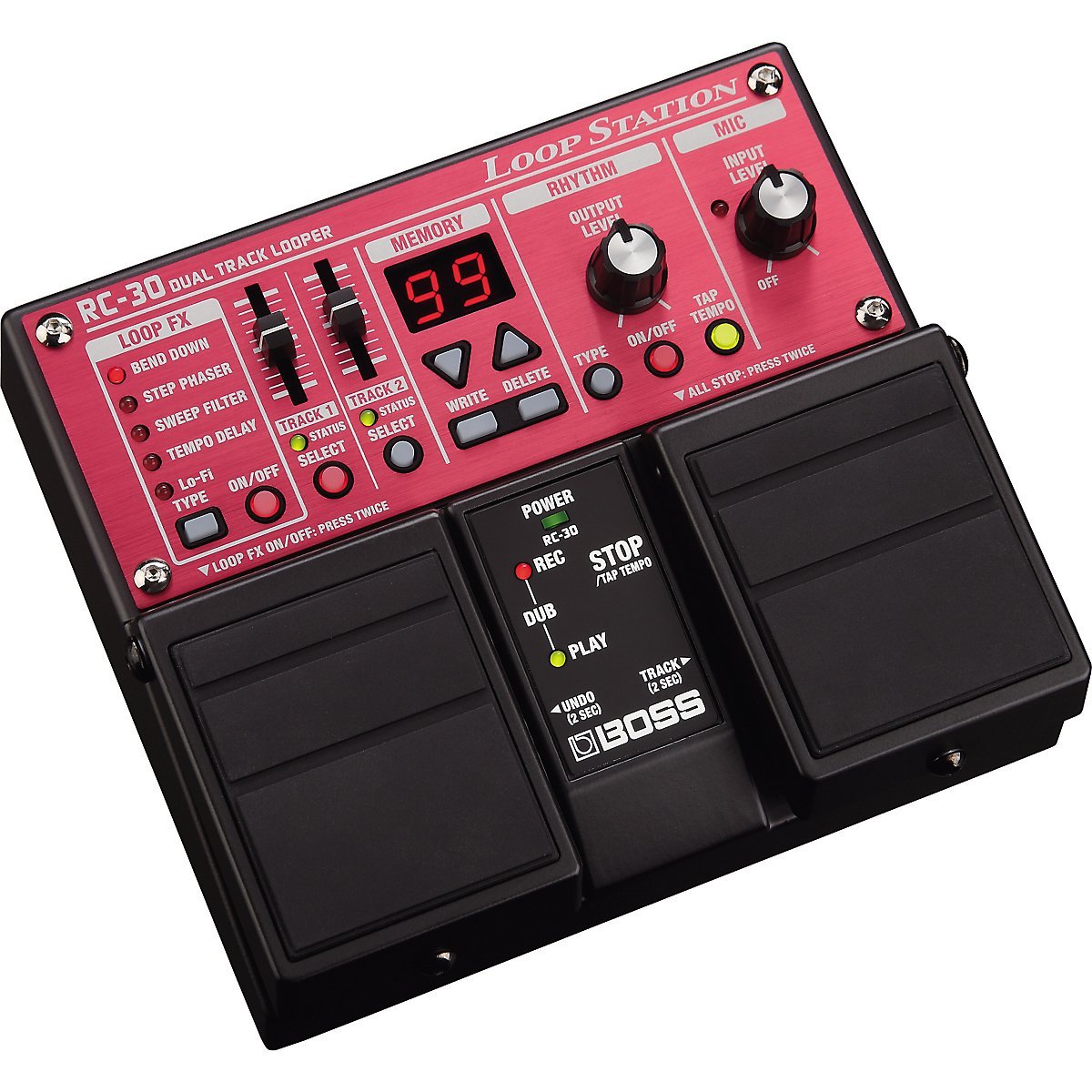

Twin · pedal type RC - 30 greatly expanded the recording time from 16 minutes to 3 hours of the previous model.

Since it is possible to store up to 99 kinds of loop phrases in the main body, you can develop performance using more phrases and longer phrases without worrying about recording time.

From Amazon

The latest looper of pedal type which can easily perform recording / playing.

RC - 30 is a loop station that can perform recording / loop playback speedily.

The RC-30 is a twin pedal type equipped with two stereo tracks.

Built-in dedicated onboard effects suitable for performance such as "BEND DOWN" and "TEMPO DELAY", and volume control with independent faders for each track.

RC - 30 can be driven by dry batteries.

As well as the stage, loop performance can be easily done outdoors such as street.

Up to 3 hours, 99 loop phrases can be recorded.

The RC - 30 significantly strengthens the built - in memory of the main body.

The maximum recording time of the conventional model RC - 20 XL was 16 minutes, whereas the RC - 30 achieved a dramatic improvement that it is possible to record up to 3 hours.

Recorded data is recorded in the main unit without using external memory, so you do not need to replace the media, stable operation and operation is possible.

Also, as the recording time increases, the maximum saved phrase number corresponds to 99 as well.

With sensitivity to sensitivity, it is possible to record as many phrases as you can think of.

In addition, it is equipped with a rhythm function that also serves as a guide for recording.

Adjustment of BPM by tap tempo can be done easily.

Supports stereo input / output with no source.

RC - 30 corresponds to stereo input.

In addition to monaural sources such as guitar, you can also connect stereo-out compatible effects, or connect stereo source instruments such as synths and perform loop performance.

Also equipped with an AUX input terminal that can directly connect audio player etc.

It can be used for various purposes such as favorite songs and karaoke, and it is also possible to perform loop performance while playing a backing track.

Export / import by USB is possible.

The RC - 30 also has a USB terminal that can be connected to a personal computer.

You can also back up the recorded phrases via USB.

Also, it is possible to import WAV files from the personal computer into the main body.

For example, importing favorite songs, capturing backing tracks created with DAW software etc. as files, and performing sessions while playing at loop stations, the range of mastery is expanded widely.

Two stereo track specifications that can perform various loop performance.

RC-30 can record / loop by 2 tracks.

For example, you can create more versatile loops, such as cutting on one track and arpeggio on the other track, so you can combine the tracks freely in the song or demonstrate a great deal of power in solo performance that overlays the sounds in real time.

Of course, each track can record in stereo.

Since each volume has a volume fader for each track, it is easy to adjust volume and mute for each track.

Five types of special effects are installed.

Equipped with special effects of type.

On the RC - 30, five kinds of on - board effects are built in.

It is possible to add a unique effect to the recorded loop.

There are five types of effects: "BEND DOWN" "STEP PHASER" "SWEEP FILTER" "TEMPO DELAY" "Lo-Fi".

Effect parameters are automatically set to optimum in synchronization with the tempo.

Equipped with XLR microphone input compatible with phantom power.

The RC - 30 has an XLR input terminal compatible with microphone connection.

Since it is also possible to supply phantom power, you can also record with high quality using a condenser microphone.

Equipped with the XLR microphone terminal, the range of utilization is greatly expanded.

Utilizing the 2-track configuration, it is possible to produce a variety of effects depending on ideas, such as real time performance of vocalist / rapper by voice source and rhythm construction of sound on sound by drummer / percussionist.

Rear panel

Main Specifications

Specified input level

MIC IN = -40 dBu (variable), INST IN = -20 dBu, AUXIN = -10 dBu

Input impedance

MIC IN = 4 kΩ, INST IN = 1 MΩ, AUX IN = 22 kΩ

Specified output level

-20 dBu

Output impedance

1 kΩ

Recommended load impedance

10 kΩ or more

Recording / playback

Maximum recording time = approximately 3 hours, Maximum number of saved phrases = 99 phrases, Number of tracks = 2, Data format = WAV (44.1 kHz, 16 bit linear, stereo)

Rhythm type

Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion

Effect type

BEND DOWN, STEP PHASER, SWEEP FILTER, TEMPO DELAY, Lo-Fi

USB interface

Supports USB 2.0 / 1.1 mass storage device class

Control

REC / PLAY / OVERDUB pedal, STOP / TAP TEMPO pedal, MIC INPUT LEVEL knob, MEMORY DOWN button, MEMORY UP button, MEMORY WRITE button, MEMORY DELETE button, RHYTHM OUTPUT LEVEL knob, RHYTHM ON / OFF button, RHYTHM TYPE button, RHYTHM

TAP TEMPO button, TRACK 1 slider, TRACK 1 SELECT button, TRACK 2 slider, TRACK 2 SELECT button, LOOP FX ON / OFF, LOOP FX TYPE button, PHANTOM switch

indicator

POWER indicator, REC, PLAY (DUB) indicator, PEAK indicator, TRACK 1 STATUS indicator, TRACK 2 STATUS indicator, BEND DOWN indicator, STEP PHASER indicator, SWEEP FILTER indicator, TEMPO DELAY indicator, Lo-Fi indicator

display

7 segments 2 digits (LED)

Connecting terminal

MIC IN terminal = XLR type (balanced / phantom power supply: 48 V DC, 10 mA Max), INST IN terminal (L / MONO, R) (standard type), AUX IN terminal (stereo mini type), OUTPUT terminal (L /

MONO, R) (standard type), FOOT SW terminal (TRS standard type), USB terminal, DC IN terminal (DC 9 V)

Power supply

DC 9 V = Alkaline battery or manganese battery (AA type) x 6, AC adapter (PSA - 100: sold separately) * Rechargeable Ni - MH rechargeable battery can not be used.

Current consumption

Maximum 195 mA (DC 9 V) * Battery life during continuous use (varies depending on usage condition) Alkaline battery (AA type): about 7.5 hours, manganese battery (AA type): about 1.5 hours

accessories

Instruction manual, warranty card, leaflet (safety precautions / notes on use / service window), alkaline batteries (AA size) x 6

Optional items

AC adapter (PSA - 100), foot switch (FS - 5 U, FS - 6)

External dimensions / mass

Width (W)

173 mm

Depth (D)

158 mm

Height (H)

57 mm

mass

1.2 kg

Features:

• Please enter model number Confirm this is compatible:
• It corresponds to the memory of up to 3 hours of recording and 99 phrases.
• Loop station which can also perform stereo input / output.
• Up to 3 hours, you can record 99 stereo loop phrases.
• Import / export of personal computer and WAV file is possible with USB connection.
• 2 stereo track specification equipped with independent faders.
• Equipped with XLR microphone input compatible with phantom power.
• Five types of dedicated onboard effects are installed.

Product information:

Shipping Weight: 1837 g

Package Dimensions: 10.67 x 23.62 x 24.13 cm
