Item Descriptions:
size:
Multimeter 20A
Parameters:
Operating voltage: 6.5 to 100 V DC
Measurement range: 6.5 to 100 V DC
Rated power: 20 A / 2000 W
Measurement accuracy: 1.0 grade
Test range and display format:
Power range: 0 to 2 kW
Within 1 kW, display 0.0 to 999.9 W
The above 1 kWh and indication 1000 to 2000 W
Energy range: 0 to 999 kWh
Within 10 kWh, display 0 to 9999 Wh
The above 10 kWh and display 10 to 9999 kWh
Voltage range: 6.5 to 100 V (display 6.50 to 99.99 V)
Current range: 0 to 20 A (display 0.00 to 20.00 A)
Caution:
This module is suitable for indoor use, please do not use outdoors.
Make sure that the applied load does not exceed the rated power.

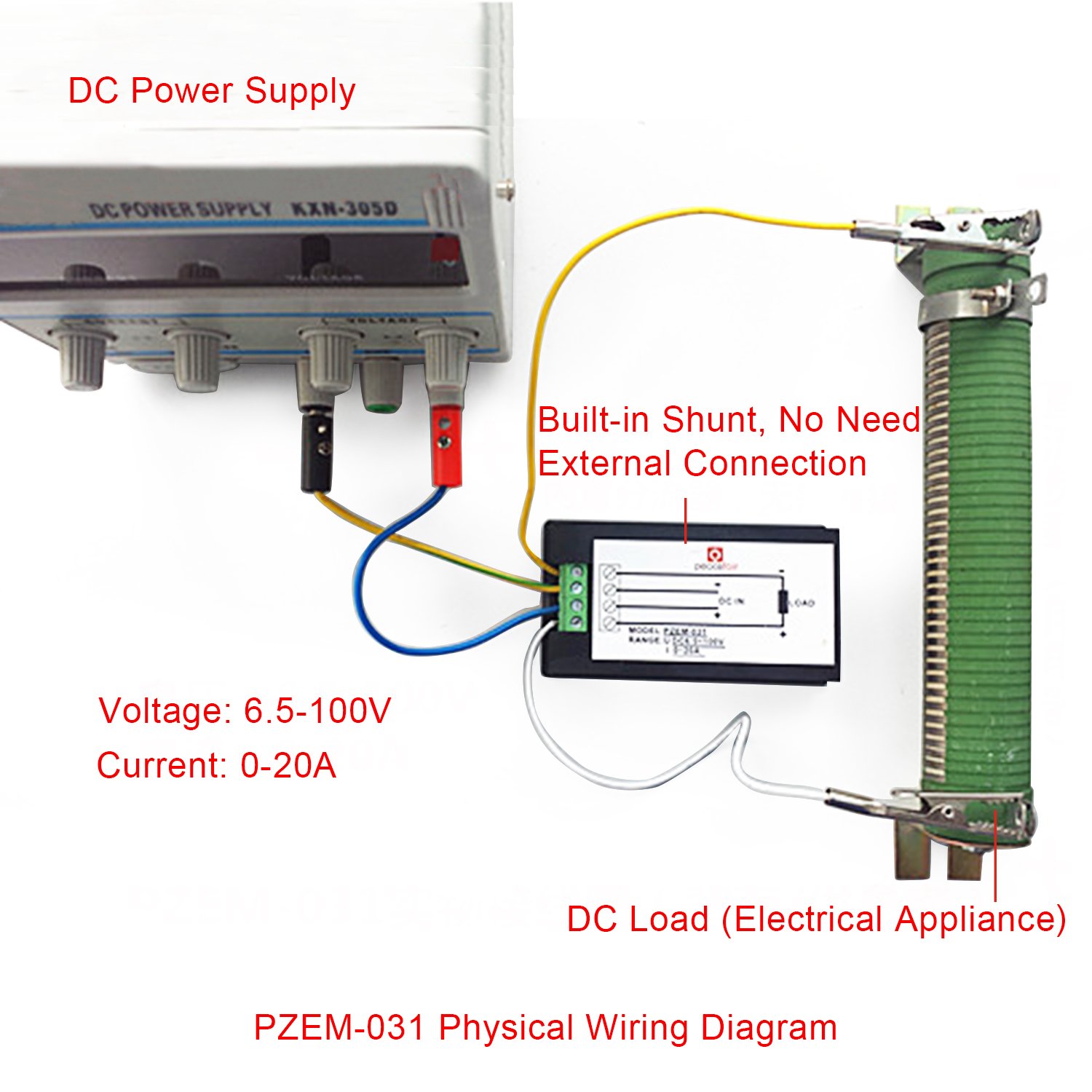

The wiring order can not be wrong.
Package Included:
1 x DC power multimeter
Features:
- Please enter model number Confirm this is compatible:

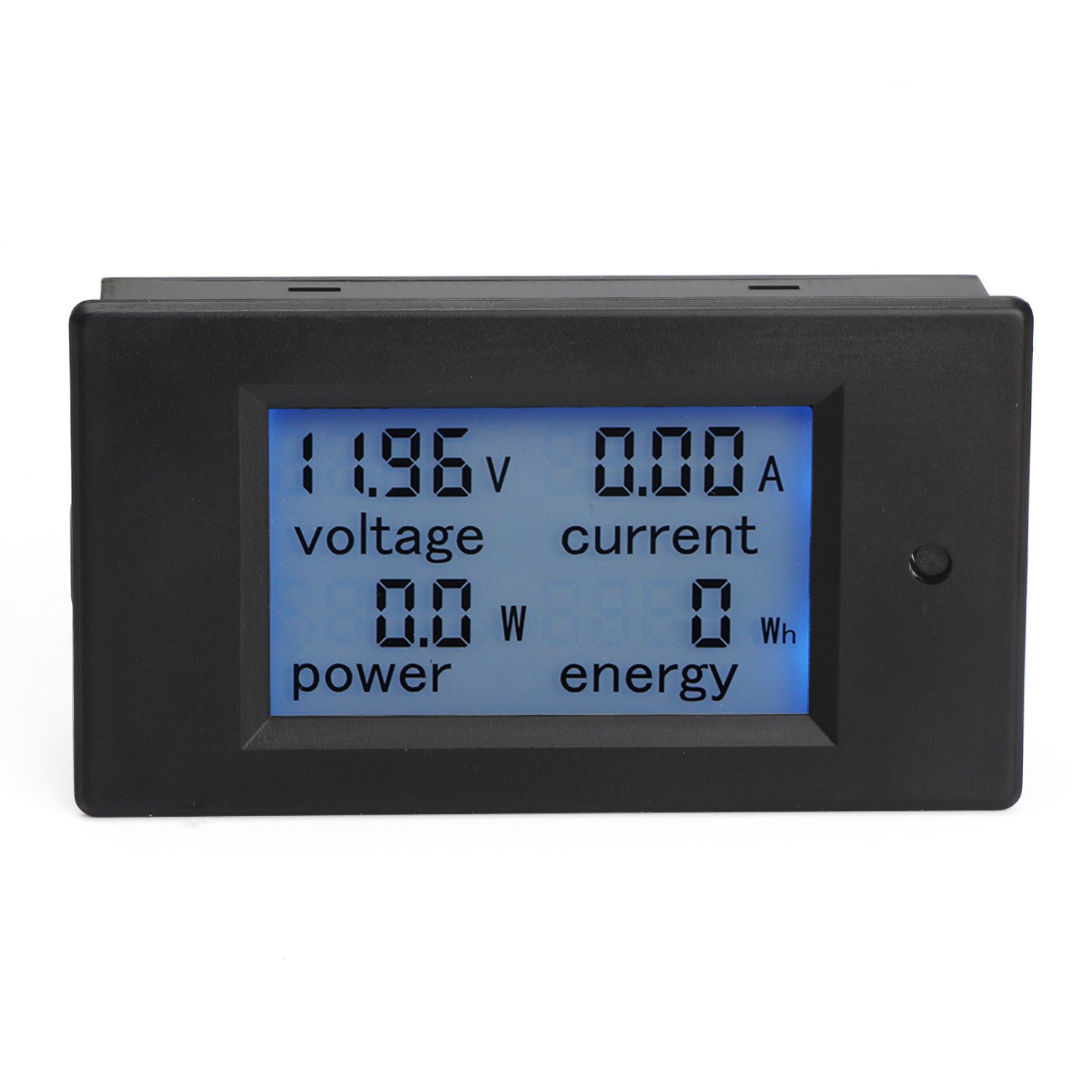

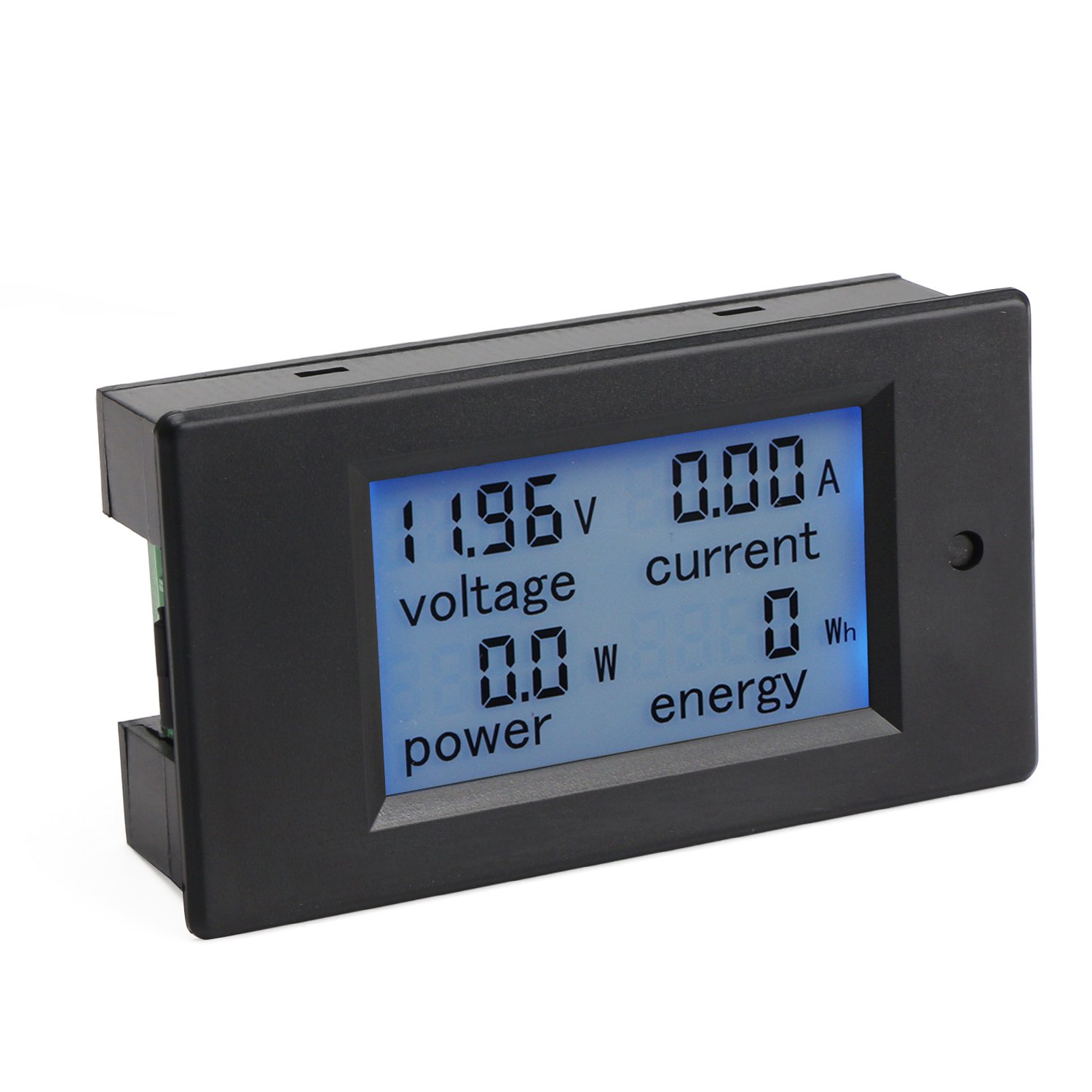

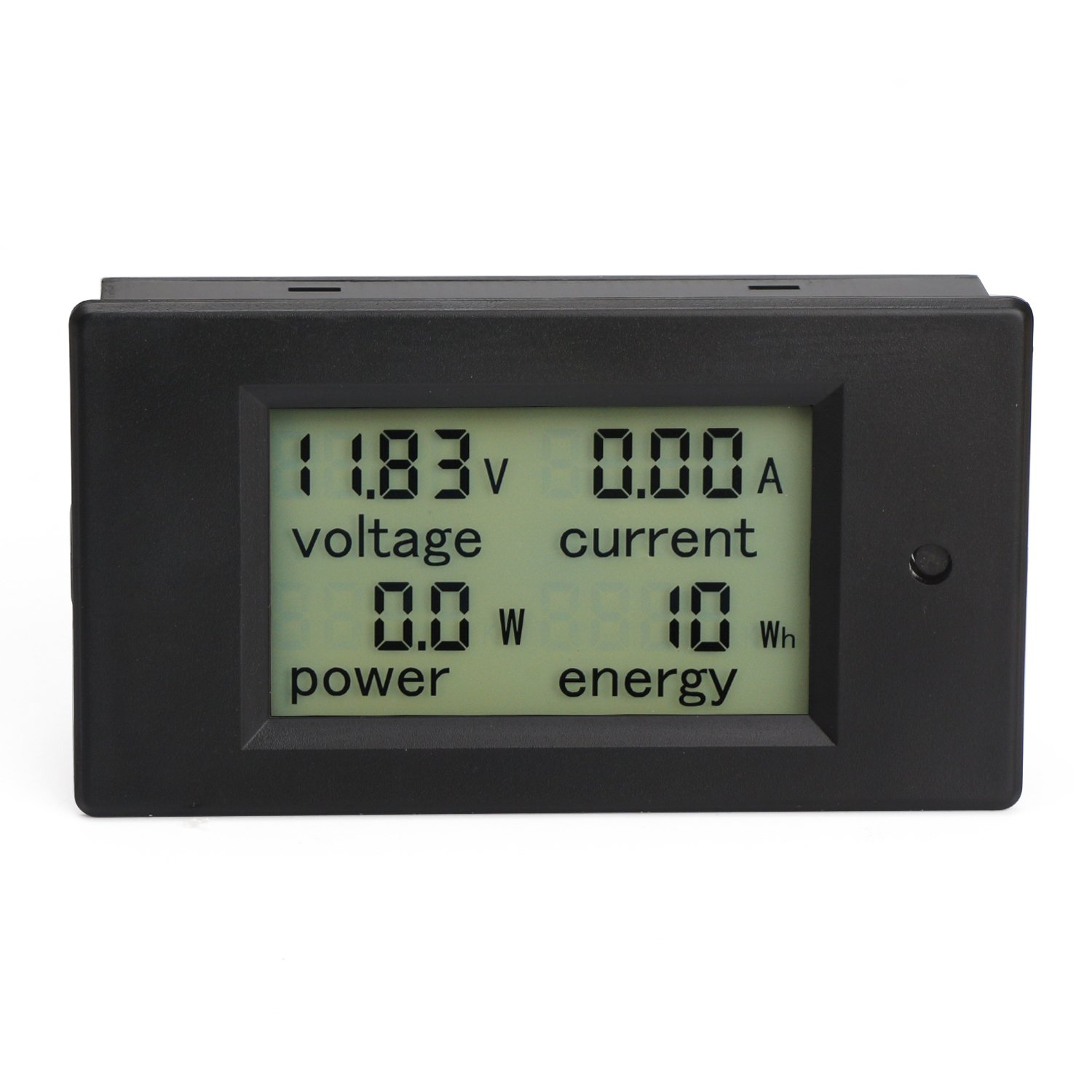

- The large screen LCD can simultaneously display voltage, current, power and energy.
- Voltage warning function (When the threshold value of overvoltage warning is exceeded, the backlight and power supply will flash and alarm will be generated.)

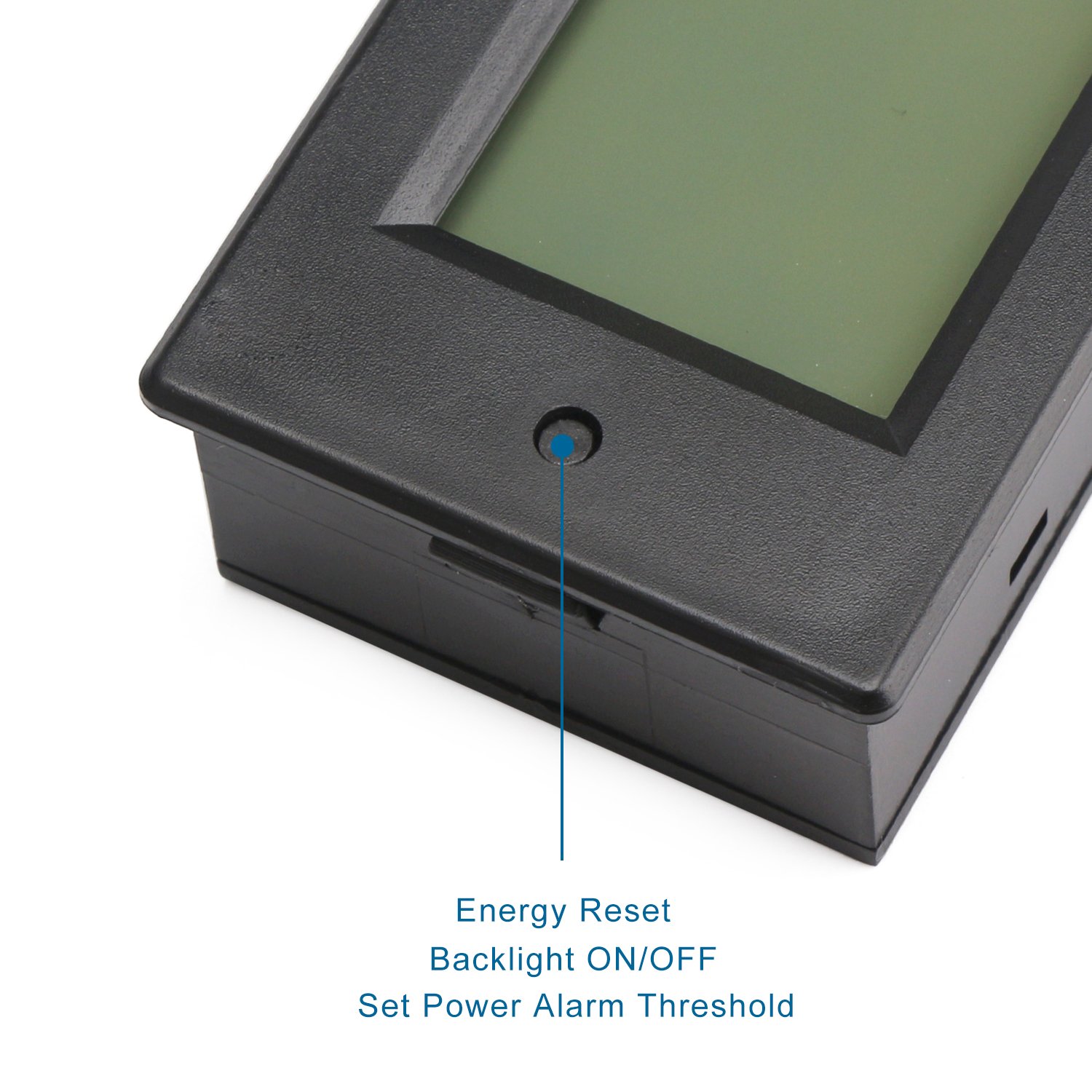

- Reset function: Energy can be reset with buttons.
- Save the data when you turn off the power.
- Please press the button on the panel immediately.
- You can turn on / off the blue backlight manually.
- Built-in shunt.
- Accurate measurement is possible, external power supply is unnecessary.
Product information:
Shipping Weight: 99 g

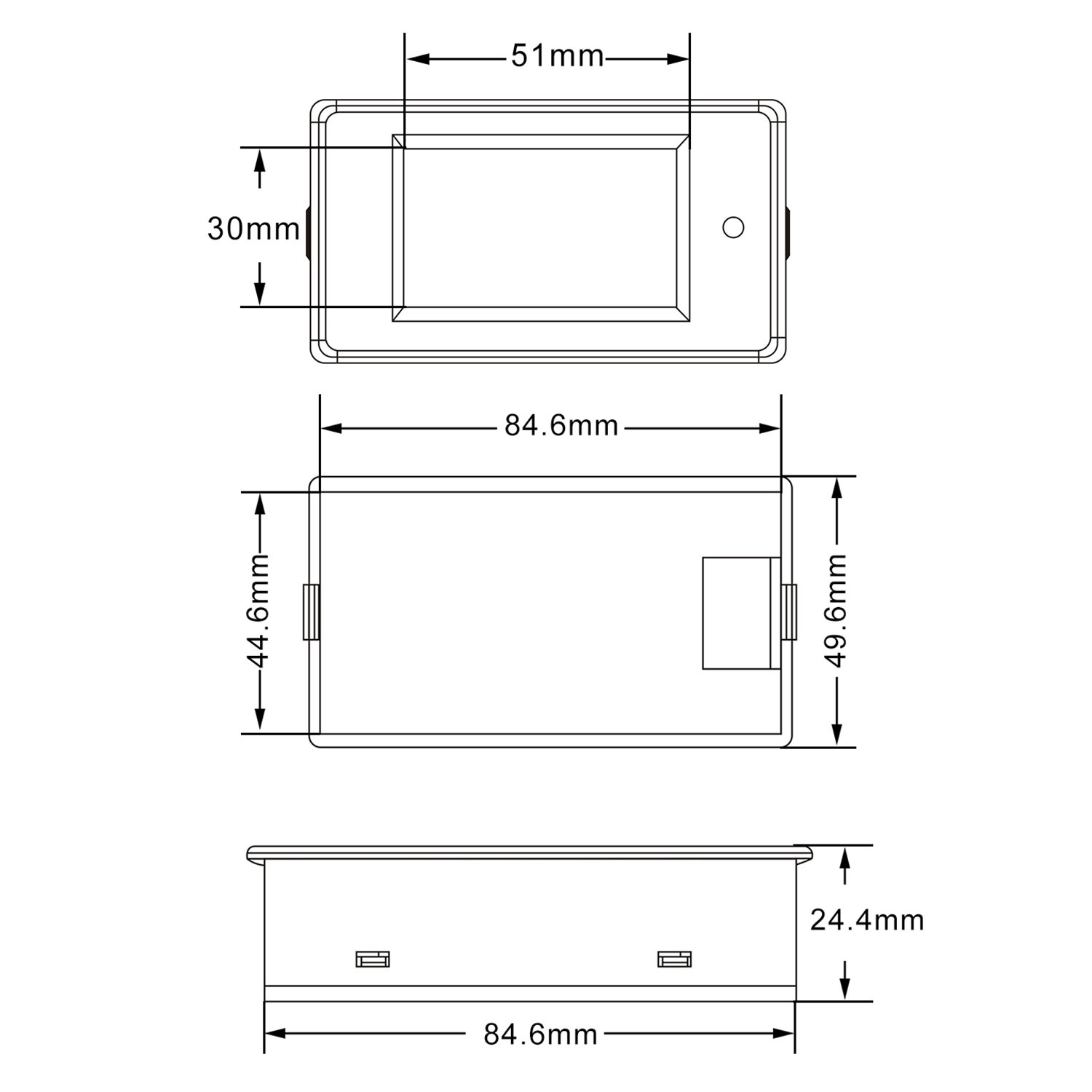

Package Dimensions: 5.00 x 13.49 x 13.59 cm
