Features:

150Mbps wireless transmission rate

CCA idle channel detection technology

WPS a key security settings

IP bandwidth control

WDS wireless bridge

Parental control features

Key Features:

Using 802.11n wireless technology， in line with 802.11g / b， 802.3 / 3u standards

1 WAN port， 4 Mbps LAN ports support auto-negotiation and port auto-flip

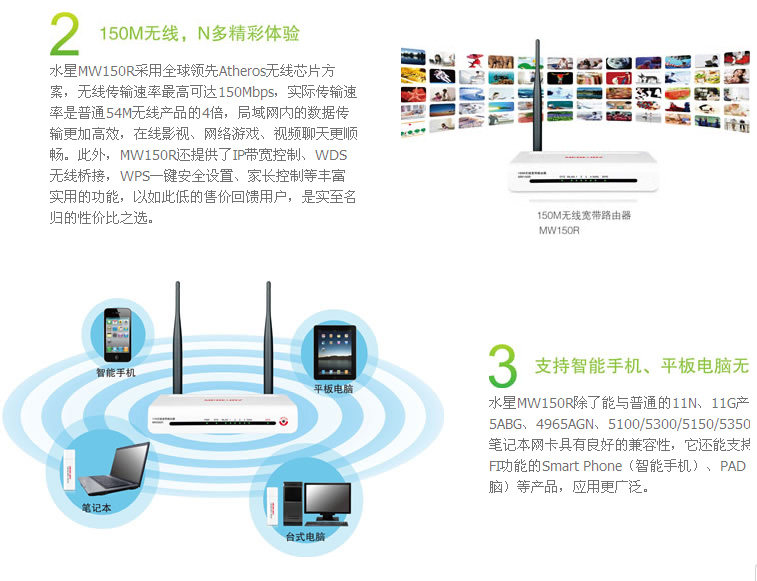

150Mbps wireless speed， network more efficient and stable

CCA technology to enhance wireless stability， expand wireless coverage

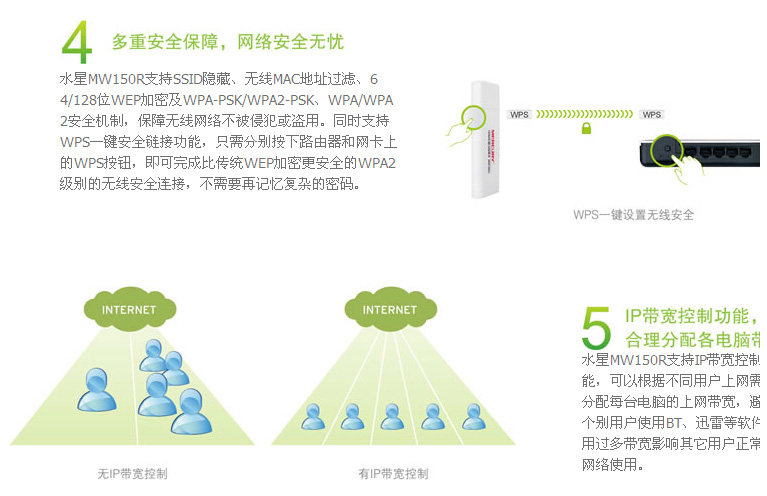

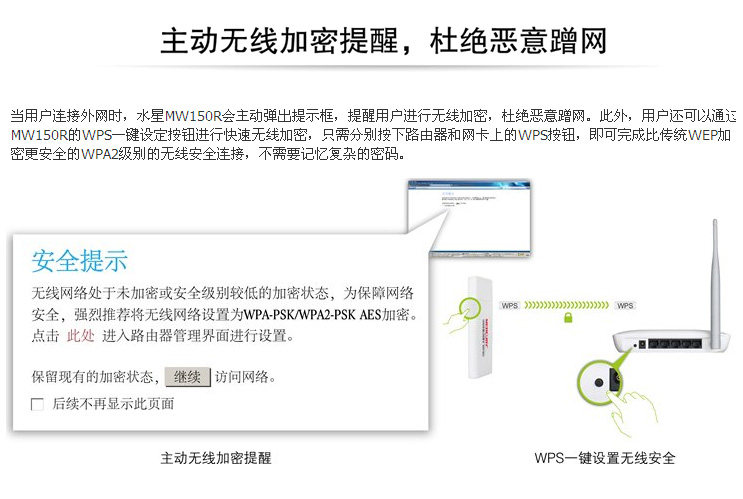

WPS fast security settings， to ensure a secure connection between the wireless card

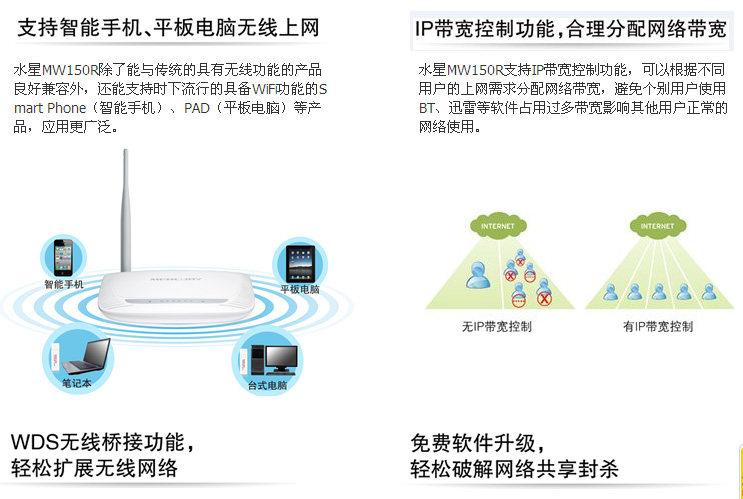

IP bandwidth control functions， the free allocation of network bandwidth users

WDS wireless bridging function， easy to expand the wireless network

Parental controls， flexible control of the child or employee online behavior

Support PPPoE， Dynamic IP， Static IP and other broadband access

Automatic dialing? Onions Can  screwed ⒍ ㄊ generation  cattle  countenance mane sik  sentenced doorpost?

Support UPnP， DDNS， static routing， VPN Pass-through

Provide DoS attack prevention， with automatic virus isolation

Supports virtual server， special application and DMZ host a variety of port forwarding， can be used in the construction of the network sites

Support SSID broadcast control， MAC address access control lists based on

Provide 64/128/152 bit WEP encryption， support WPA / WPA-PSK， WPA2 / WPA2-PSK security mechanism

Built-in firewall， supports IP， MAC， URL filtering， can be flexibly control access permissions and access time

Built-in DHCP server automatically， dynamically assigned IP address



Protocols and Standards

  IEEE 802.11g， IEEE 802.11b， IEEE 802.3， IEEE 802.3u， CSMA / CA， CSMA / CD， TCP / IP， DHCP， ICMP， NAT， PPPoE



Port

  LAN port

  4 10 / 100M adaptive RJ45 ports (Auto MDI / MDIX)



WAN port

  A 10 / 100M adaptive RJ45 ports (Auto MDI / MDIX)



No line parameters

  Frequency Range

  2.4 ~ 2.4835GHz



Transfer rate

  11n: 135 / 121.5 / 108/81/54 / 40.5 / 27 / 13.5Mbps

130/117/104/78/52/39/26 / 13Mbps

65 / 58.5 / 52/39/26 / 19.5 / 13 / 6.5Mbps



11g: 54/48/36/24/18/12/9 / 6M (adaptive)



11b: 11 / 5.5 / 2 / 1M (adaptive)



Working channels

  13



Spread Spectrum Technology

  DSSS (Direct Sequence Spread Spectrum)



Data modulation scheme

  DBPSK， DQPSK， CCK， OFDM， 16-QAM， 64-QAM



SensitivityPER

  135M: -68dBm @ 10% PER; 65M: -68dBm @ 10% PER

108M: -68dBm @ 10% PER; 54M: -68dBm @ 10% PER

11M: -85dBm @ 8% PER; 6M: -88dBm @ 10% PER

1M: -90dBm @ 8% PER



RF power

  20dBm (max)



Antenna gain

  3dBi



Antenna Type

  A fixed omnidirectional antenna



Network Media

  10Base-T: Category 3 or higher UTP Category 3

100Base-TX: 5 UTP category



LED indicator

  Per port

  Link / Act (port to connect / work)



Other

  PWR (power)， SYS (system instructions)

WLAN (wireless status indicator)， WPS (a key security settings)



Dimensions

(L x W x H)

  160mm × 103mm × 29mm



Environment

  Operating temperature: 0 ℃ to 40 ℃

Storage temperature: -40 ℃ to 70 ℃

Humidity: 10% to 90% RH non-condensing

Storage humidity: 5% to 90% RH non-condensing
