Item Descriptions:

size:

6 tatami

Adopted NEC's original LED light distribution technology "Multi Angle System II".

By optimizing the angle and position of the LED, light is also steadily turned to the center and the outside of the lighting equipment to realize bright illumination to the ceiling face.

In addition, NEC adopts its own multi-diffusion cover.

Diffuse the light evenly and improve the brightness of the room more.

Large light quantity, brightness within applicable tatami number MAX.

(One company) Japan Lighting Industry Association has determined the range of brightness of the number of tatami mats for LED ceiling lights in "Guide 121-2011".

According to the guide, it is the maximum brightness within the applicable tatami number.

It adopts daylight color LED module (6700 K) clearly white and fresh.

The contrast between white and black is highlighted, and there are also effects that clear letters such as newspaper etc. become clear.

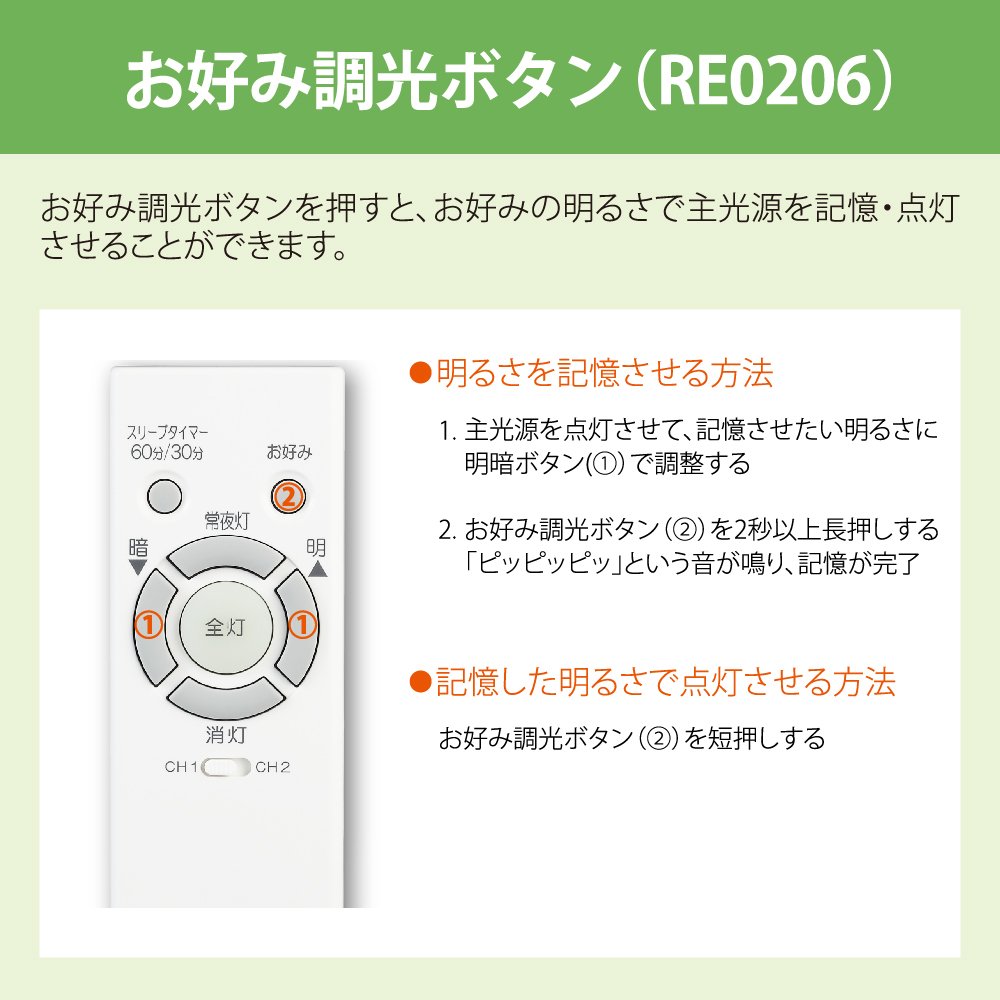

Continuous dimming function · Favorite memory: By pressing the favorite dimming button, it is possible to memorize the main light source with the brightness of your choice and light it.

Sleep timer: 60 minutes, OFF timer setting of 30 minutes is possible.

Fade off function: Pressing the off button slowly turns off.

I will produce a gentle luxury feel.

Insecticide guide: It is easy to install the cover and it is difficult for insects to enter.

"Easy installation" function adopted tool with installation / removal OK with one touch.

If the ceiling is hooked with sealing, it can be installed without tools.

It can not be mounted on hanging ceiling with an embedded rosette with a length of less than 10 mm or with a drawer of 21 mm or less.

Please do not use it in a circuit with a dimmer such as a wall switch with dimming function.

Do not insert metals (hairpins, wires, etc.) into the gaps of the equipment, and do not block the holes.

Please do not attach instruments to damaged or wobbling wiring equipment (rosette).

Do not attempt to disassemble or modify the equipment (LEDs can not be replaced) Ceilings with protrusions, uneven ceilings, weak ceilings that bend easily, deformed ceilings, lattice ceilings, etc. can not be fitted with instruments.

An inclined ceiling (within 55 degrees), a part sold separately is required for attachment to the bordered ceiling.

Features:

• Size: 48.7 x 10.9 cm
• Body weight: 1.5 kg
• Cover material: milky white acrylic glove
• Power consumption: 30 W
• Warranty period: 1 year (LED light source LED power supply is guaranteed for 5 years)

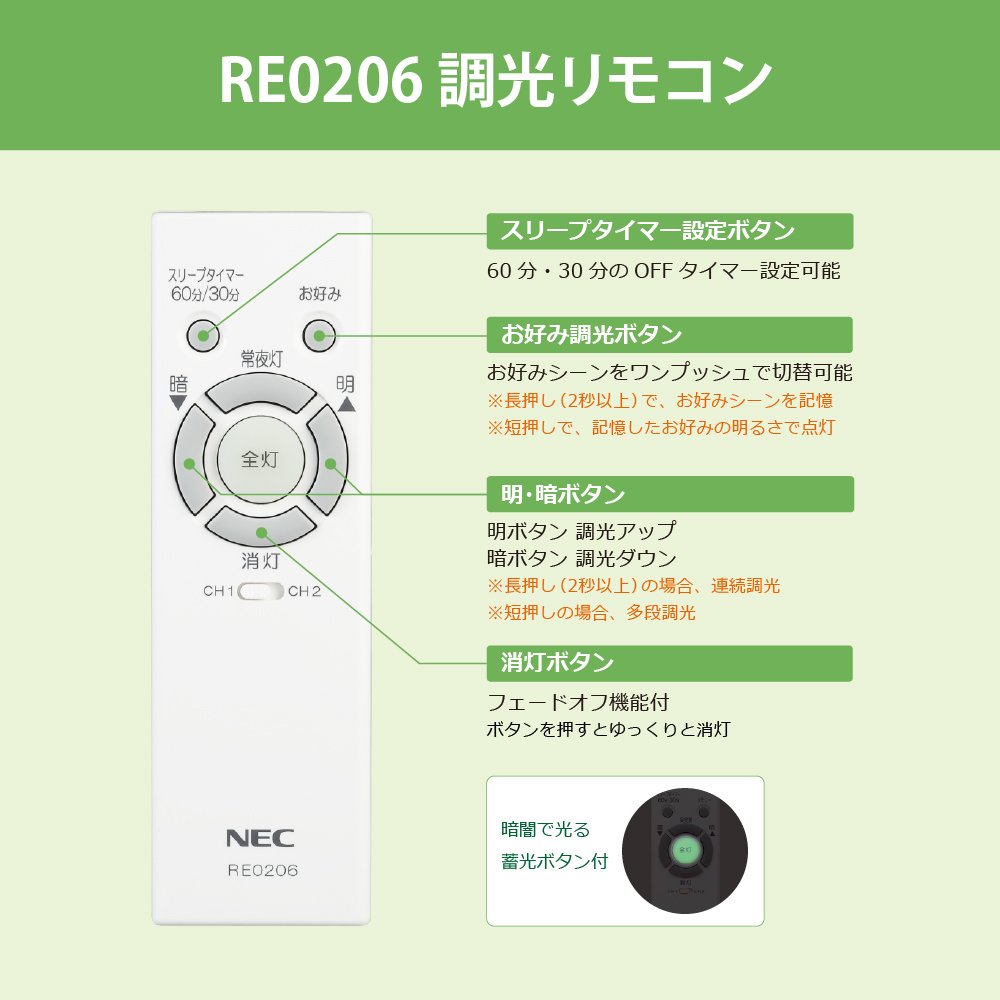

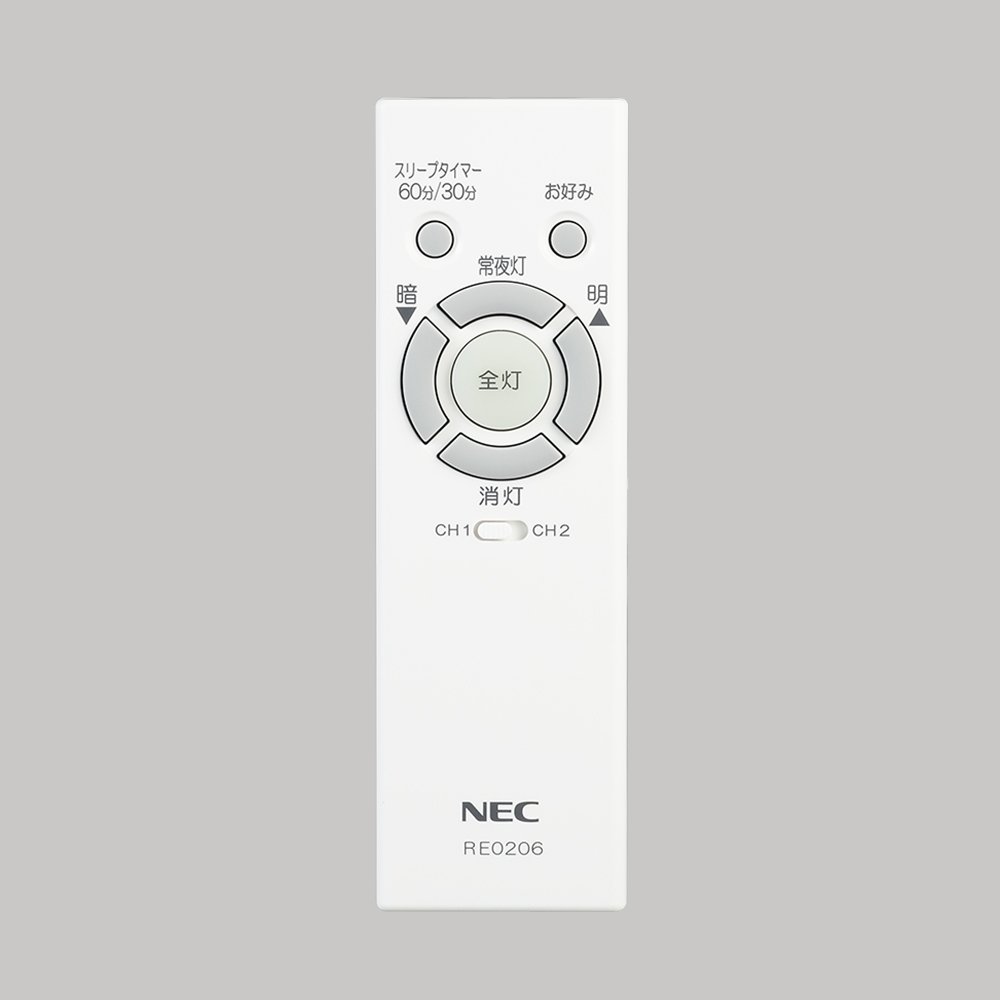

• Accessory: Remote control (RE 206) With remote control case
• Light source: LED (daylight color 6700 K · Ra 85), rated luminous flux: 3699 lm, rated power consumption: 30 W, intrinsic energy consumption efficiency: 123.3 lm / W, module lifetime: 40,000 hours (luminous flux maintenance ratio: 70%
• Remote control: [Full light · Night light · OFF] Dimming: Continuous dimming (100% ~ about 10%), multistage dimming (100% about 70% about 50% about 30% about 10%), LED night light

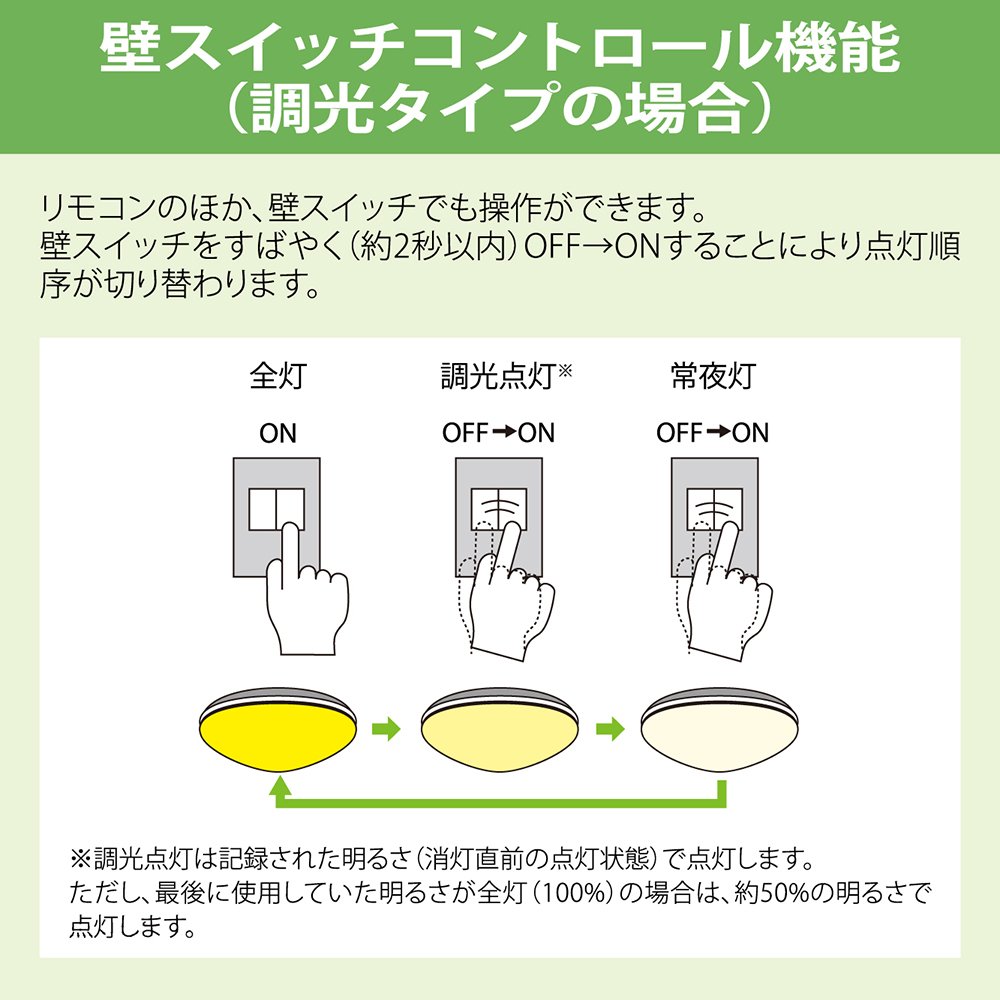

• Dimmer), blinking, Wall switch control (All lights, Memory dimming lighting, Night lighting) By switching the wall switch quickly (within about 2 seconds), the lighting sequence changes by turning ON → ON.
• Fade off function, sleep timer (30 minutes, 60 minutes)
• Other: Insecticide guide, easy installation (one-touch installation, removable)

Product information:

Shipping Weight: 2358 g

Package Dimensions: 13.79 x 54.99 x 55.60 cm
