Eyourlife DMX512 Wireless Receiver 2.4GHz XLR for DJ Lightning Control
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way. No time delay when signal data is transmitting, signal data is real time and reliably. This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design; 126 channels jumping frequency automatically, high anti-jamming ability.
Operating manual:ID code and LED color corresponding relationship:(1: RED/2: GREEN/3: RED+GREEN/4: BLUE/5: RED+BLUE/6: GREEN+BLUE/7: RED+GREEN+BLUE
1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition: LED constant lit up: No DMX or wireless signal. Red LED flash: Transmitting. Green LED flash: receiving
4. RF frequency 2.400 - 2.525G, total 126 channels, it's searching automatically,
5. ID Code ¡°1-7¡± groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color)

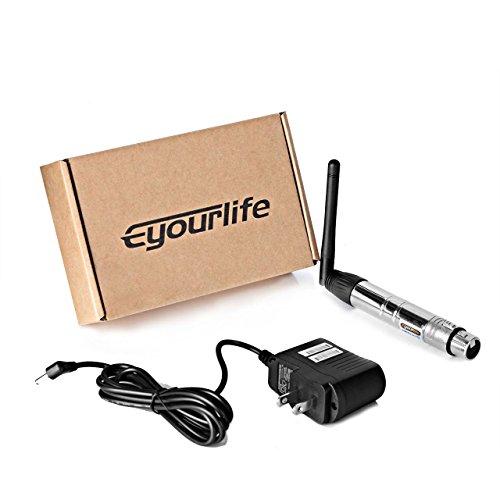

Package Included
1 x DMX512 wireless transmitter (male)
1 x Power adapter (US Plug)
1 * User Manual

Feature

2.4G wireless DMX512 receiver,Automatic 126-channel jumping, high anti-jamming ability.
7 groups ID code settable. User can use 7 groups individual wireless net without any interfere.Each other in the same place. (Tricolor LED displaying Indicators)
Input voltage: 5VDC 500mA MIN,Communication distance: 400M (visible distance)
Work frequency section: 2.4G ISM, 126 channel frequency section.Max transmitting power rate: 20dBm
Package Included:1 x DMX512 wireless receiver (female)/1 x Power adapter (US Plug)/1 * User Manual
Brand : Eyourlife
Item model num : DMX512WBJ806
MPN(PartNumber) : DMX512WBJ806
Package Dimensions(LxWxH) : 17x11x5cm ; 159 g
