Item Descriptions:

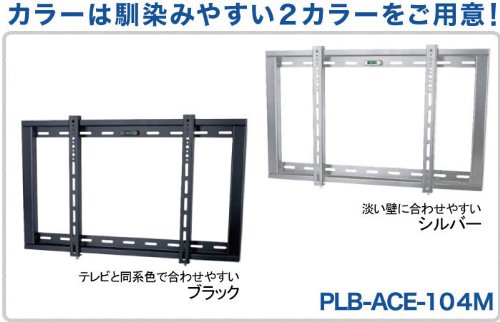

Color:
black
LCD TV and wall
Thinness to integrate!
"PLB - ACE - 104" is a fixed metal fitting with reduced thickness, so it sticks perfectly to the wall and you can realize the ideal wall hanging style!

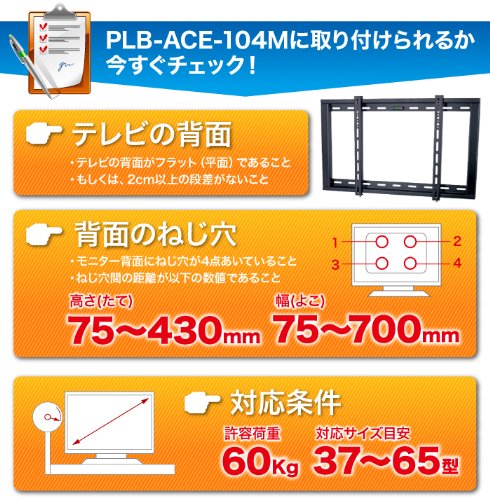

Installable condition
· There are four or more screw holes on the back of the monitor and it is possible to remove the stand
· The back of the monitor is flat (flat), or there is no irregularity which interferes with metal fittings of 2 cm or more
· The monitor size is 37 to 65 inches (it is a standard number of inches)
· The weight of the monitor is 60 kg or less
· The screw hole on the back of the monitor is between 75 mm and 430 mm in length and 75 mm to 700 mm in width

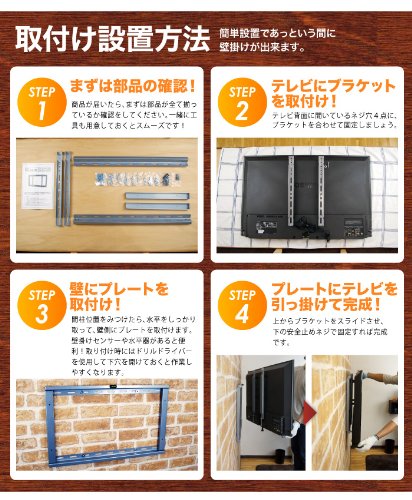

First of all, check the parts!
When the item arrives, please check first whether all the parts are complete.
Please contact us if any necessary parts are missing.
In case
Attach the bracket to the TV!
Let's attach the metal fitting on the TV set to the 4 screw holes opened on the back of the TV.
Plate the plate on the wall!
Firmly check the state of the installation location and attach the wall side metal fittings to the studs and reinforced walls.
If you drill a hole with a drill driver or the like, installation becomes easy.
Completed hooking the TV on the plate!
Attach the TV to the wall by hooking it from above on the wall side metal fitting.
Fully secure the safety screw and it is completion!
Features:
- Please enter model number Confirm this is compatible:

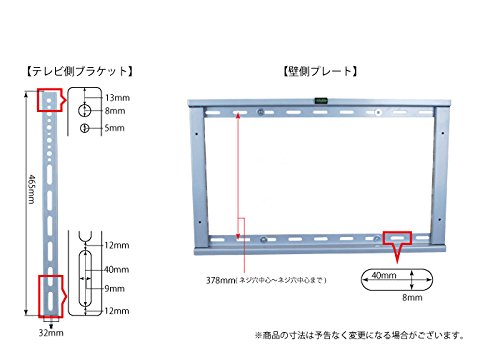

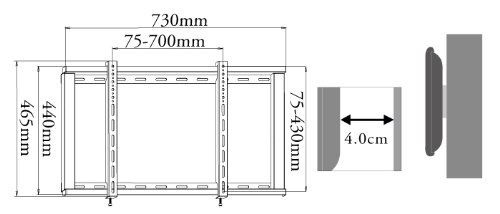

- [Dimensions] See the drawing
- [Product weight] 4.1 kg
- 【Angle adjustment】 Angle fixed
- 【Product Details】 ■ Metal fittings body ■ ■ Various screws set | ■ Japanese installation instructions
- [Mounting load capacity] 60 kg
Product information:
Shipping Weight: 3950 g
Package Dimensions: 3.81 x 16.51 x 73.99 cm
