Item Descriptions:

size:

HDMI audio separator (1080P compatible)

BLUPOW HDMI audio separator (1080P compatible) ◆ Please note the seller well before ordering because there are many imitation items ◆

If you purchase this product from BLUPOW, you will receive a "3.5 mm stereo mini jack ⇒ - 2 RCA pin plug conversion cable (10 cm)".

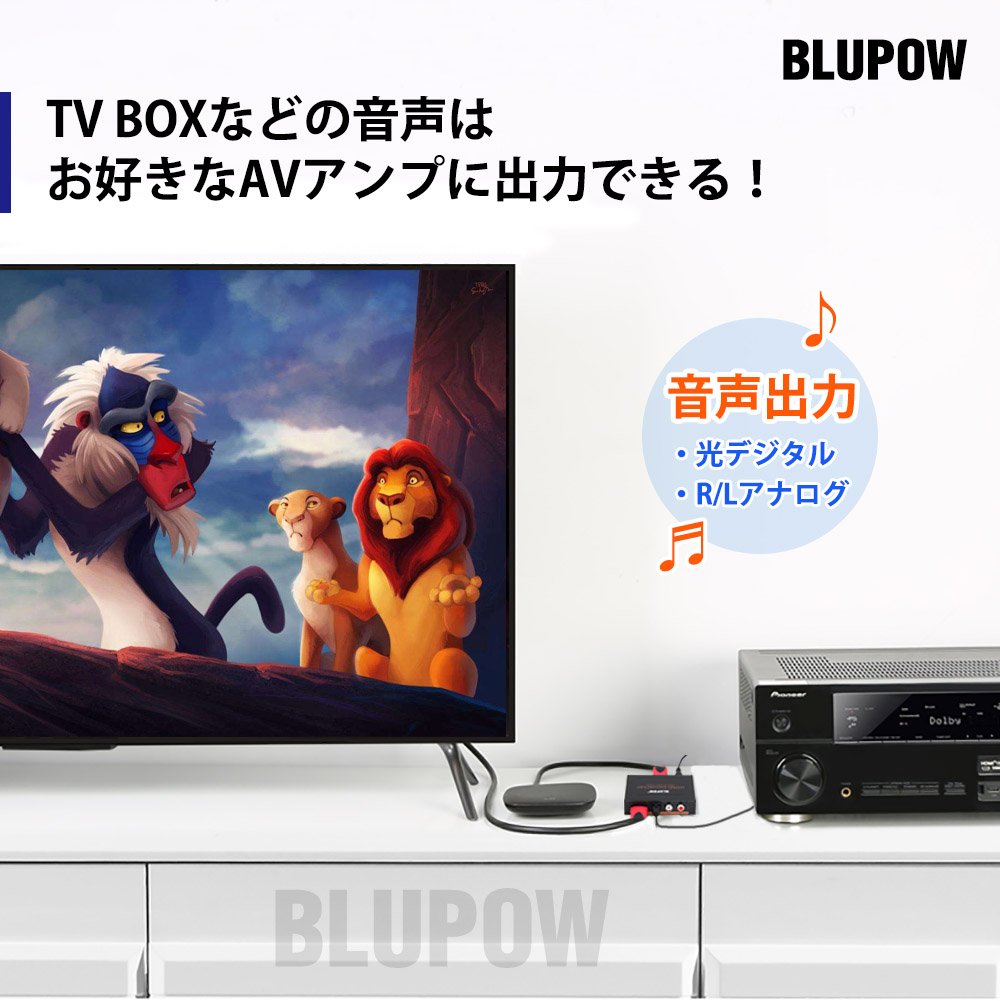

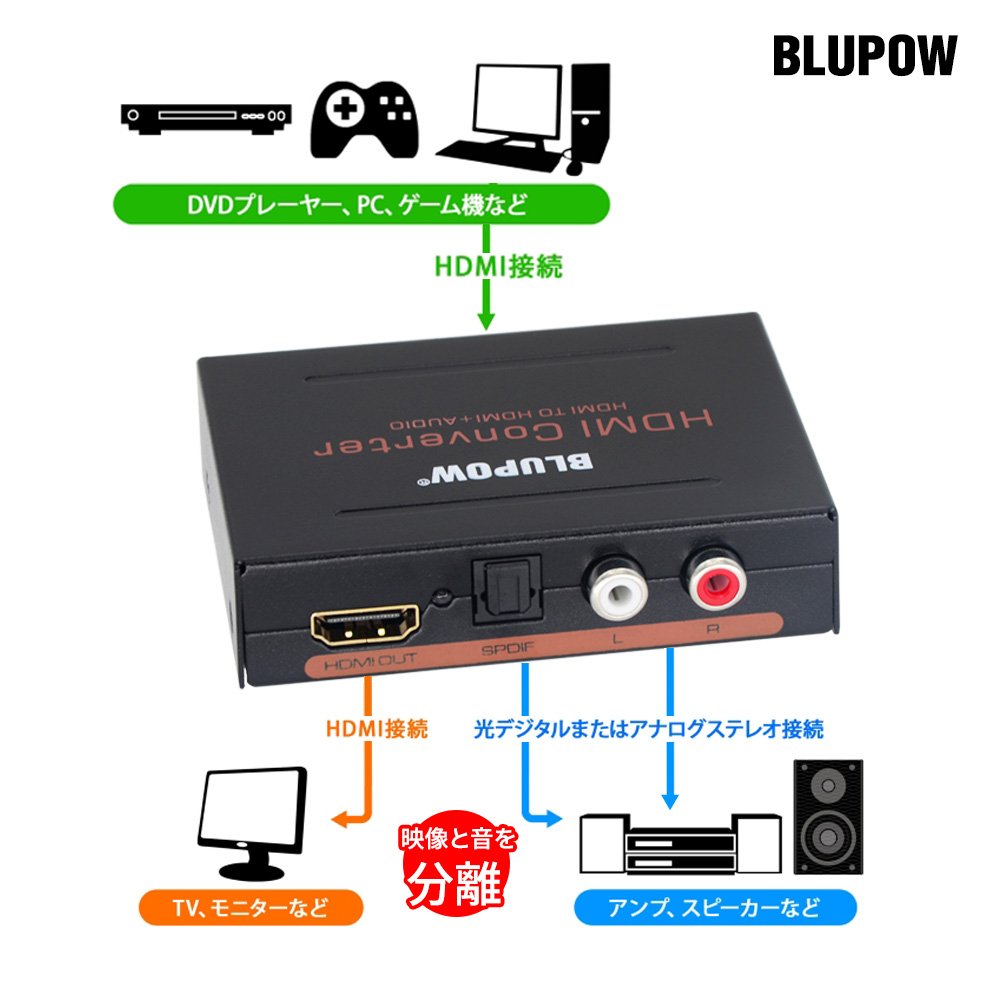

It is the best product when separating audio and video from the device with HDMI output terminal, connecting video to TV / monitor and audio to AV amplifier / sound system.

Since it is equipped with an optical digital / analog (R / L) output, it is possible to output the audio signal of HDMI to an audio system such as an amplifier.

3D image · full high vision

(Up to 1080 P)

It corresponds to the high image quality image of.

It can distribute while keeping HDMI's high image quality video / sound, so you can use your favorite speakers, TV and so on.

Since all cables can be arranged in the same direction, it can be installed cleanly.

Since it has an HDMI input port on the front, it is possible to arrange the optimum for frequent removal equipment.

Eye friendly power lights are adopted, you can enjoy games and movies intensively.

We are using PSE certified AC adapter.

Supported models: PS 3 · PS 4 · Xbox 360 · Blu-ray player · Cable box · Apple TV · Chromecast · Fire TV etc.

For example:

When you want to view images from a Blu-ray recorder with a projector and an optical digital speaker.

Although it is a Blu-ray recorder usually connected to TV, it is easy to change the HDMI and optical digital only from TV to a separator without changing the wiring roughly.

After that, you can enjoy large screen and high sound without having to give up on the speaker you are always using just by connecting the HDMI cable from the separator to the projector.

When you want to output the audio signal from the monitor without audio output to AV amplifier, speaker, etc.

It can also be used for speakers with HDMI terminal.

It can also be conveniently used to extract only audio parts of concert videos, rakugo or read aloud, various video images, and to make sound only data.

EDID mode changeover switch explanation (PASS | 2CH | 5.1 CH)

It is designed to output sound simultaneously from HDMI, optical digital and analog (R / L), whichever mode you switch, so that it can be used more easily.

Therefore, it can also be used as a voice distributor.

In case of 5.1 CH, Dollby Digital (AC 3) and DTS 5.1 ch correspond to digital output, but Dollby Digital Plus and PCM 5.1 (more types than that) do not correspond.

If the sound source is not 5.1 ch, 2 ch is output, or it may not be output.

※ This machine

input signal

Audio format

Can not change

Output signal is input signal

I will follow.

That is, 2 ch

sound source

Input 2ch mode

Selected

The

, 2 ch

voice

, 5.1 ch

sound source

5.1 ch mode is selected, and 5.1 ch

voice

Output

please note:

No ARC compliant

HDMI input resolution supports up to 1080 P, 4 K × 2 K is not supported

Supports HDMI 1.3 and HDCP 1.3, no more versions are supported

HDMI cable and optical digital cable are not included

→ 4K × 2K, ARC, HDCP 1.4 Compatible models

https://www.amazon.co.jp/dp/B01MQPSX9O

Please move to

It does not take a place to place it in a compact size, it can be utilized in various scenes!

Product specification

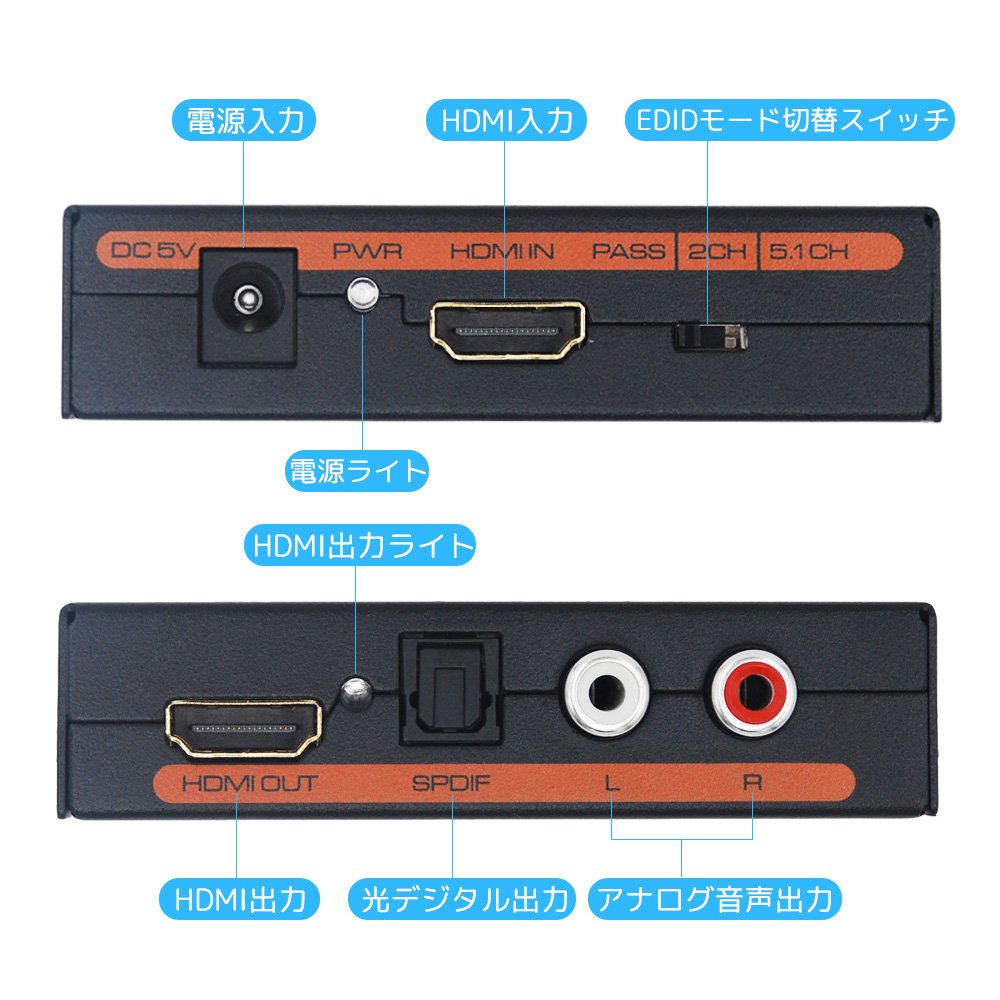

Input terminal:

1 x HDMI, 1 x DC 5 V power input

Output terminal:

1 x HDMI, 1 x SPDIF (optical digital), 1 x L / R analog

HDMI resolution: 1080 P /

1080i / 720P / 576P / 576i / 480p / 480i

Video color format:

24bit / Deep color 30bit, 36bit

Audio output:

SPDIF + R / L analog audio

Maximum bandwidth:

225 MHz

Maximum transmission speed:

6.75 Gbps

Input / output TMDS signal:

0.5-1.5 Volts PP (TTL)

Input / output DDC signal:

5 Volts PP (TTL)

Input cable length:

≤ 15 mAWG 26 HDMI standard cable

Output cable length:

≤ 20 mAWG 26 HDMI standard cable

Maximum operating current:

500 mA

Power adapter input

: AC 100 V - 240 V (50/60 Hz)

Power supply output:

DC 5 V / 1A

Working temperature:

-15 to + 55 ° C

Work humidity:

5 to 90% RH (no condensation)

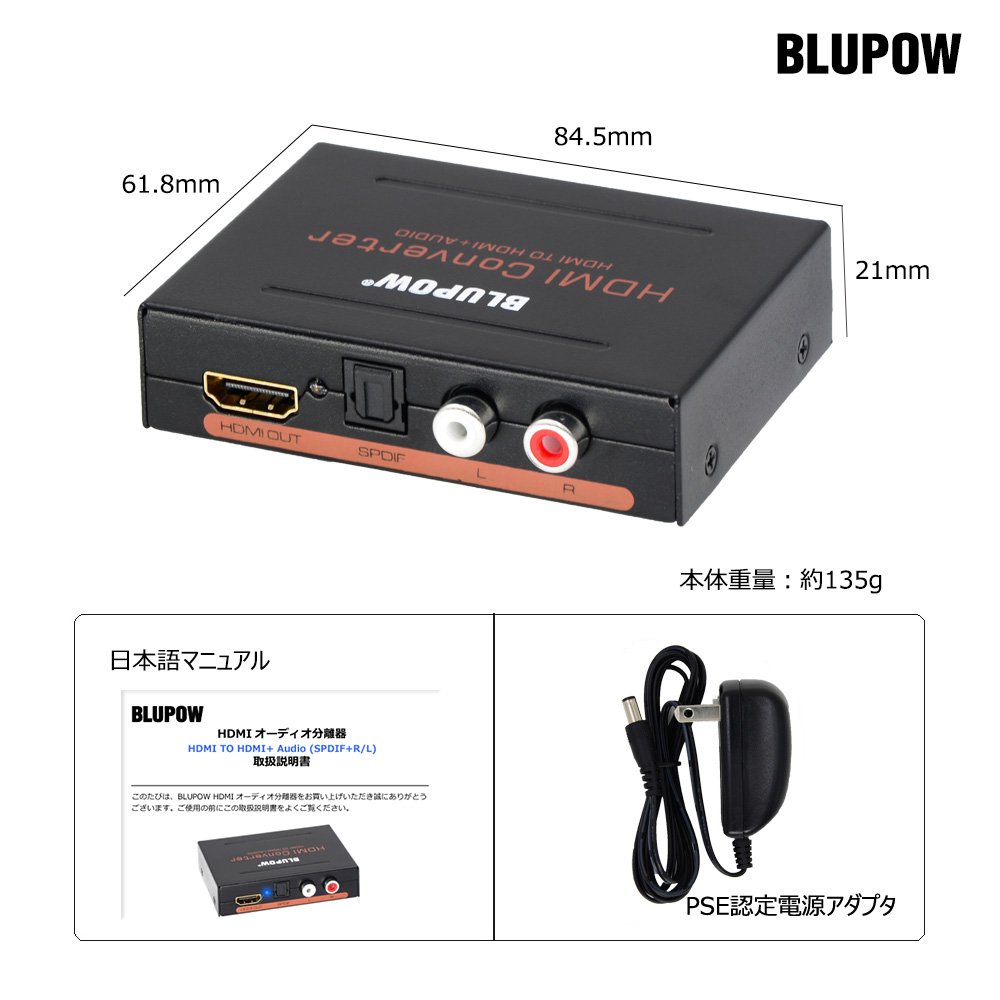

size:

Approximately 84.5 (L) x 61.8 (W) x 21 (H) mm

Body weight:

Approximately 135 g

set content

1 x body

1 x AC Adapter (PSE Approved)

1 x Japanese Manual

* The HDMI audio separator purchased from BLUPOW has one year warranty by BLUPOW, please do not hesitate to contact us if you have any questions.

Our company E-Mail:

[email protected]

As you can respond as soon as possible, please fill in the order number when you contact us.

Features:

• Please enter model number Confirm this is compatible:
• 【BLUPOW】 It is an HDMI sound separator that can output sound by optical digital or analog separation from HDMI signal.
• While outputting video to TV · monitor, only audio can be output to external amplifier and speaker.
• If you can purchase this product, you will receive a "3.5 mm stereo mini jack ⇒ - 2 RCA pin plug conversion cable (10 cm)".
• People who usually use TV speakers but want to use a dedicated audio system when watching movies etc.
• Or it is a useful item for those who want to output audio signals separately to external amplifiers or external speakers etc. because they are using monitors without sound output.
• HDMI video output is compatible with 3D video and high definition video of full Hi-Vision.
• HDMI input resolution supports up to 1080 P.
• Since it can distribute while keeping HDMI's super high picture quality image / sound, it becomes possible to use favorite speaker, TV etc.
• Eye friendly power lights are adopted, you can enjoy games and movies intensively.
• The output terminal corresponds to two systems of optical digital (S / PDIF) and analog (red / white).
• For audio output, you can select and output PASS / 2CH / 5.1CH by switching EDID switch.
• It can be used just by inserting a compact body that does not take up space in the palm size, driver unnecessary cable.
• Enclosed list: 1 x main unit, 1 x power adapter (PSE approved item), 1 x Japanese manual

Product information:

Shipping Weight: 254 g

Package Dimensions: 6.60 x 11.30 x 12.60 cm
