Product Description

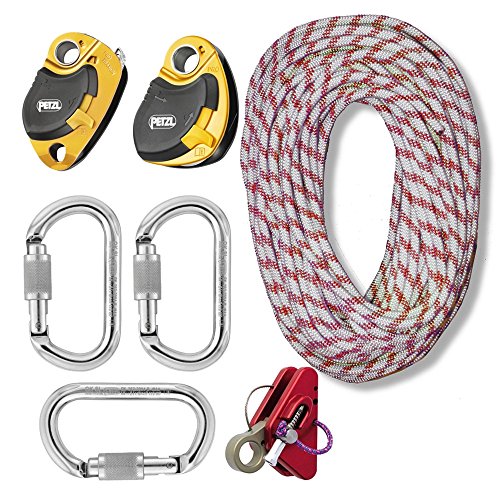

Zrig Pro 4 Piggyback Haul System is an ideal choice for rescue, arborist, hauling and other industrial applications. It's ideal for any rescue situation and is a great addition for any rescuer's gear bag. This is all rated gear. Can be configure for a 3 to 1 Main Line Z-ring system or a 4 to 1 Piggy Back Haul System attaching to main line Kits Contains: 1 - Progress Capture Pulley (progress capture can be turn on or off) Weight: 265g Made in FR Guarantee 3 years Size: 4 1/2" inch x 2 5/8" inch x 1 1/2" inch Certification(s): CE EN 567, NFPA 1983 Technical Use 1 - Regular Pulley Weight: 205g Material(s): aluminum, nylon Min. rope diameter: 7mm Min. rope diameter: 13mm Sheave type: sealed ball bearings Sheave diameter: 38mm Working load: 2 x 2.5 = 5kN Breaking strength: 2 x 11 = 22kN Efficiency: 95% Certification(s): CE EN 12278, EAC, NFPA 1983 Technical Use 1 - Rope Clamp Weight: 162 g Material: aluminum frame For use with ropes between 9 and 13 mm in diameter Made in USA 3 year guarantee CE EN 567/UIAA 3 - ScrewLock Carabiners Weight : 75 g Locking system : SCREW-LOCK Major axis strength : 24 kN Minor axis strength : 10 kN Open gate strength : 7 kN Gate opening : 19 mm Certification : CE EN 362, UIAA Made in : IT Guarantee : 3 years 1 - 150feet of 11mm Static Rope 11.5mm actual untensioned (classified as 12mm under UL standards - rounding issue) MBS 27.7kn (6232 lbs) Elongation: 2% at 1.35kn (300lbs) 4% at 2.7kn (600 lbs) 6.5% at 4.4kn (1000lbs) Polyester / Nylon Core Weight per meter: 90 g/m (.06 lbs per foot) Certification(s): NFPA 1983:2012 T Technical Use (static ropes), UL Life Safety Rope Made in: USA
