Item Descriptions:

Product specifications:

Weight: 574 g

Dimension: 85 x 85 x 120 mm

Image resolution: 2 MP

Angle adjustment: horizontal 350 ° & vertical 100 °

Power supply: DC 5V / 2A

Main processor: GM 8136S

Image sensor: AR0237

Resolution: 1920 * 1080 (2 MP)

Viewing angle: H: 80 ° V: 45 ° D: 92 °

Minimum illumination: 0.01 lumen

Audio input / output: Built-in microphone & speaker

Audio compression: AAC

Video compression: H.264

Write frequency: 50 Hz, 60 Hz

Image frame: Up to 30 fps

Authentication: RoHS, CE, FCC, NCC, PSE

Package Contents

1 x Wireless Security Camera

1 x USB charging cable

1x power adapter

1 x Ethernet cable

1 x reset 2 dollars

Supporter to fix 1x

2 x screw cap

2 x screw

1x Japanese Instruction Manual

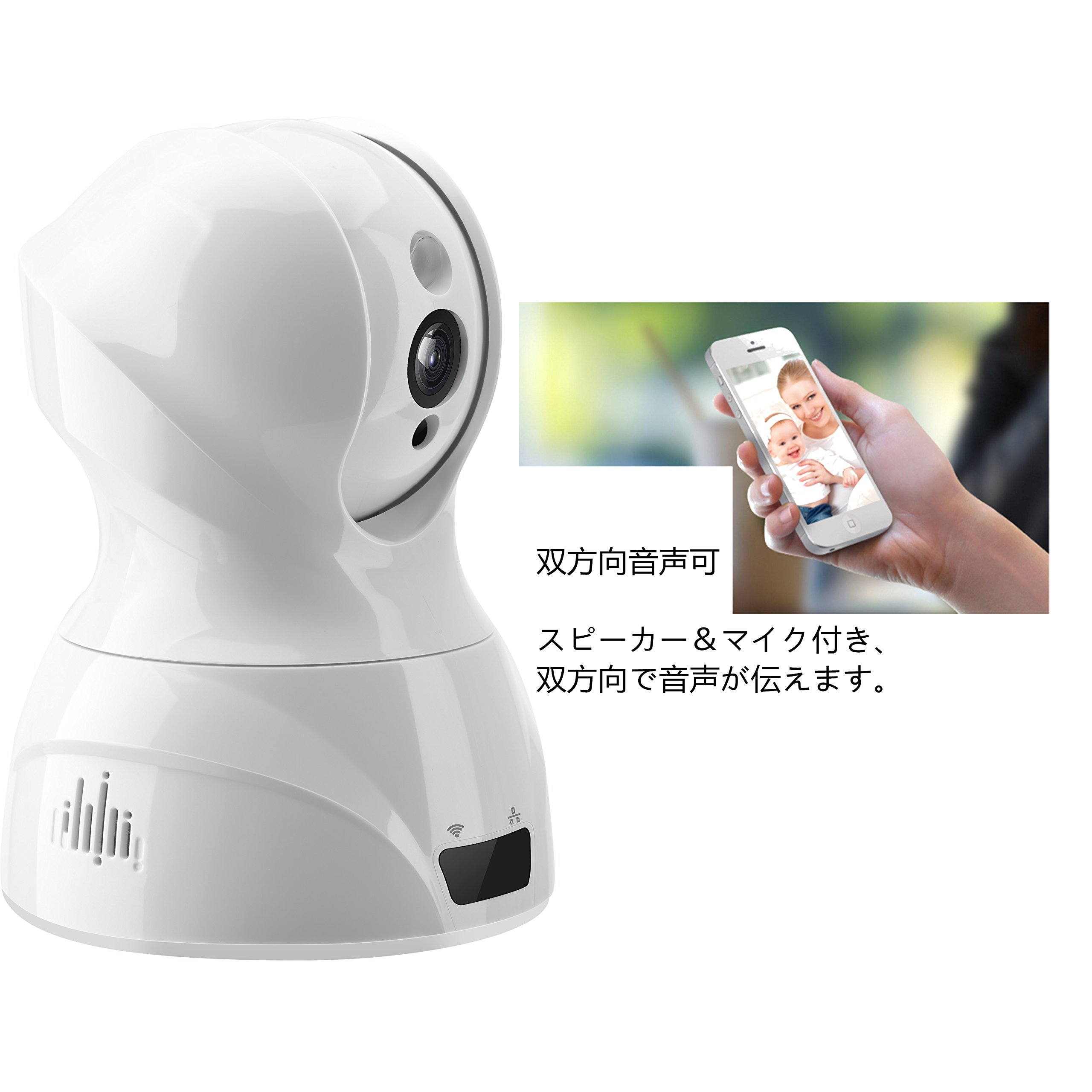

Two-way voice enabled

With speaker & microphone, audio is transmitted in both directions.

You can talk to the site at a remote place.

Before the talk finishes, while holding down the microphone of the smartphone, hear a voice, when finished, when you release your hand, the camera side delivers voice.

Pan / Tilt

This surveillance camera will swing up and down at 100 ° & right and left 350 ° and cover a wide area

Scheduled recording:

Attach the sd card corresponding to the sd card slot of the camera body and set the recording in the following steps on the "mipc" application setting screen.

Step 1: Live view the video.

Step 2: Enter the setting screen.

Step 3: You can choose the recording time.

Night vision photography

Surveillance cameras can be monitored and crime prevention not only during the day but also at night.

Infrared technology is adopted, the image is beautiful, and we protect your place and other places 24 hours a day, 7 days a week.

Motion detection function

When transforming the screen, the function that sending mail when a moving object is detected, and notifying the application is also useful.

Motion detection setting:

First, touch "notification reservation" to set start time and end time of moving object detection, next turn on "activation state" and "IO alarm" in "alarm and notification", apply the application below

After clicking the button, you can detect moving subjects in the set time zone.

You can adjust the sensor sensitivity by dragging the drag buttons in the daytime and nighttime on the motion detection screen.

Easy installation

You can also connect with a wired LAN, or you can connect with wi-fi.

If you can not connect with Wi-Fi at the beginning, check the smartphone's Wi-Fi.

Because this product can support only 2.4 GHz Wi-Fi for now

If you still can not go, reset the camera, try the wired connection once, choose 2.4 GHz Wi-Fi on the setting screen, try connecting the Wi-Fi once more.

Use

Watching over children and pets (cats, dogs) in an answering machine / For elderly nursing / Friends gifts / Equipment for teleworking / Presence of fire / For outdoor eaves / Conference transit night intruder /

Features:

• Please enter model number Confirm this is compatible:
• It is a smart IP camera with a new type of head swinging type.
• You can manipulate the orientation of the lens in the range of 350 ° horizontal rotation and 100 ° up and down and you can monitor in a wide range.
• 2. We adopt IR-CUT intelligent switching system, and change the day and night fast.
• Infrared LEDS is mounted, recognizing the ambient brightness automatically switches to infrared shooting when it gets black.
• It is a security camera that can achieve visible distance of 10 m at night, even nighttime surveillance.
• Audio bidirectional function is attached.
• The microphone is built in the camera body, and you can listen to the sound along with the video.
• (You can tell this story to the camera while holding down the microphone of the smartphone, when you are done, let's tell this story when you are done.) Since there is also a motion detection function, when detecting a moving object, send mail to smaho's application automatically
• To do.

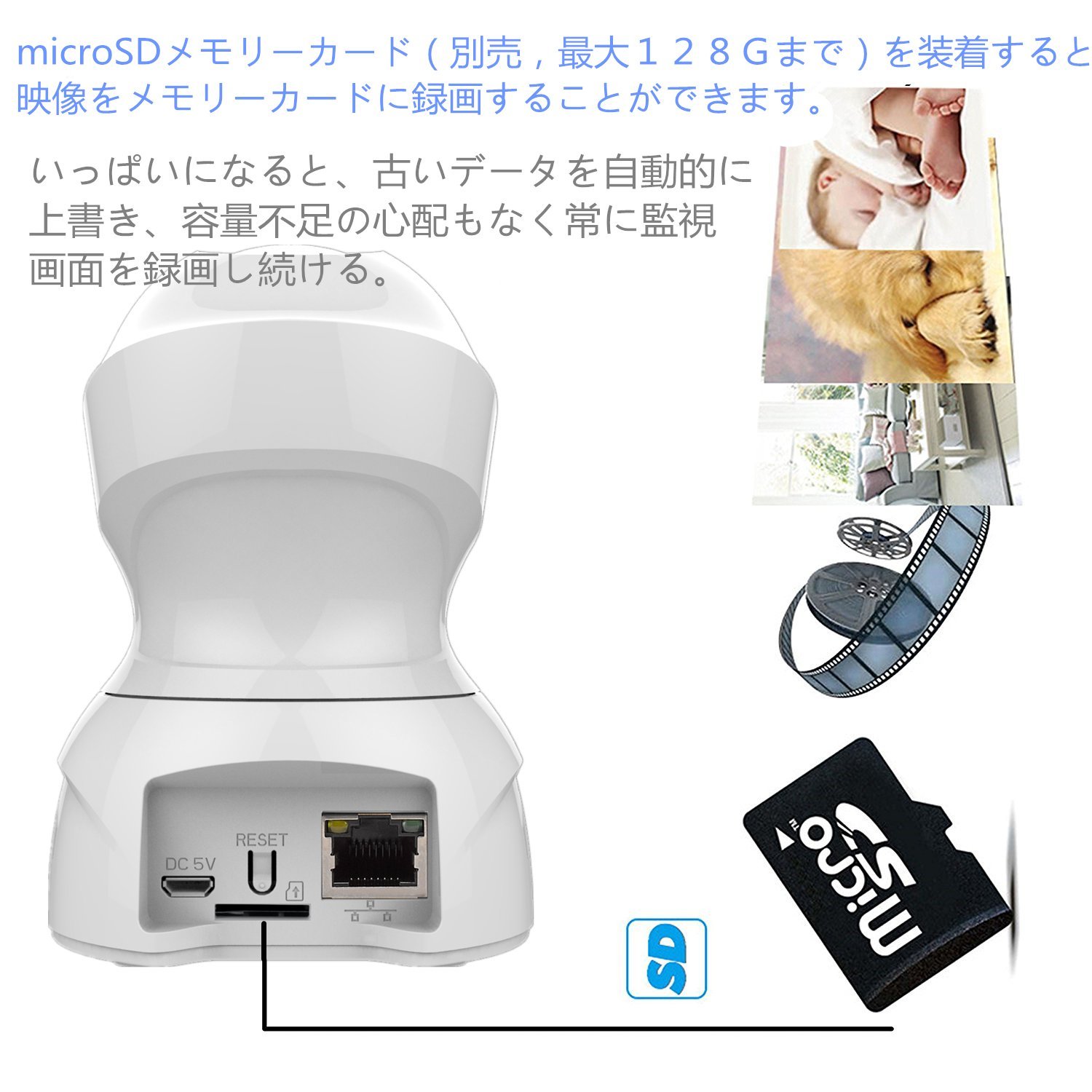

• With the recording function installed, you can record the video on the memory card by attaching a microSD memory card (optional) to the camera.
• Always recording to MollyCard and saving images when linked with motion detection function are possible.
• Easy network setup: If the camera has its own LAN cable and WiFi antenna, you can download free MIPC application for Android / iPhone and connect it with WiFi.
• Note: This product only supports 2.4 GHz wifi, it will not support WiFi of 5 GHz for a while for a while, so if it does not connect for the first time, please try wired connection first, install wifi on the camera
• Please do.

Product information:

Shipping Weight: 580 g

Package Dimensions: 9.40 x 16.21 x 18.21 cm
