Item Descriptions:

Product introduction

● High sound quality "HDDA (High Definition Discrete Architecture) microphone preamplifier" ● SD / SDHC card adopted ● 4 inputs, 4 track simultaneous recording ● 4 input 2 output mixer ● Recording mode: MONO, STEREO, DUAL MONO,

DUAL STEREO, 4 CH ● Recording format: 16/24 bit, 44.1 / 48/96 kHz (WAV / BWF) ● + 4 ​​dBu line level / phantom power supply (24/48 V) compatible XLR / TRS input (1 / L, 2 / R)

CAMERA IN, OUT terminal ● Headphone jack with maximum output of 50 mW + 50 mW ● Battery replacement is possible while being attached to the camera and head ● HOLD switch to prevent misoperation ● Mini-B type USB cable included ● 4 AA batteries or

Drive with USB bus power (sold separately AC adapter PS - P 515 U) ● Built in mixer ● 3 stage low cut filter (40/80/120 Hz) ● Limiter function ● Dual Rec function ● Auto Rec function ● Prerect function ● Self - timer recording function ●

Track increment function

Jump back playback function ● equalizer mounted ● level alignment function ● resume function ● Divide function ● slate tone generator ● stereo mini-jack microphone input terminal (3-4)

From Amazon

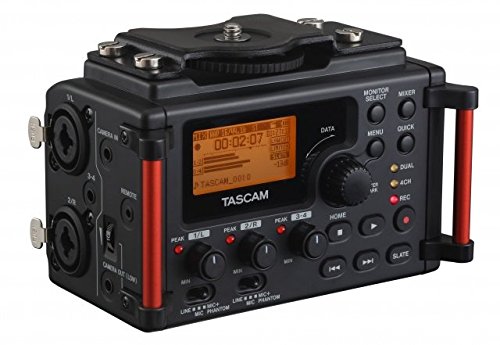

Linear PCM Recorder for Mixer Integrated Camera with High Quality Video Capture with Camera

"DR - 60DMKII" is a mixer integrated type 4 - track linear PCM recorder that enables you to shoot movies with higher sound quality when used for shooting movies of DSLR (digital single - lens reflex camera) and video camera.

We introduced TASCAM's audio recorder technology for professionals that we have cultivated over many years, and attained both high sound quality and convenience in movie shooting.

As a function best suited for audio recording for moving pictures, it has a slate tone function that makes it easier to adjust the sound when editing.

In addition to being able to record the slate tone manually by pressing the slate button, it also has an auto tone function to automatically record the slate tone at the start of recording.

Considering the installation of the main body shape with the camera, it has a structure that can be installed between the tripod and the camera by the tripod hole on the bottom and the tripod screw adapter on the top.

Lightweight plastic is adopted as the body material in consideration of weight reduction at the time of attaching the camera, but by adopting a rib structure inside, we realize high strength simultaneously with weight reduction.

In addition, by keeping the width of the main body to 133 mm which is equivalent to the width of the general DSLR, we adopt the design that takes into consideration the operability of the DSLR.

As a high-quality sound design, the preamplifier that amplifies the input sound has its own HDDA (High Definition Discrete Architecture) circuit boasting EIN (Equivalent Input Noise) -120 dBu.

In addition to a phantom power supply for professional condenser microphones, it has two XLR / TRS inputs corresponding to the + 4 dBu line level for inputting signals from mixers etc. In addition to the stereo mini for general video camera microphones

Jack input is also equipped, simultaneous input of a total of 4 CH is possible.

In addition, "DR - 60DMKII" has newly added "HI + PLUS" gain setting so as to correspond to the recording of a smaller sound.

It is possible to further raise the level by + 12 dB from the conventional maximum trim value.

The recorder section supports simultaneous recording of up to 4 channels, from 5 simple motion recording by shot gun microphone to advanced multitrack recording combining shot gun microphone and ambience microphone producing realistic sensation, in 5 operation modes,

It corresponds to various situations.

Also, using CAMERA OUT, you can also use "DR - 60DMKII" as a mixer to record the mixed audio on the DSLR audio track.

Equipped with two different HIGH / LOW output terminals of different levels, it corresponds widely to various models of cameras with different input levels.

"DR-60DMKII" which integrates a 4-track recorder and mixer function is a moving picture shooting solution that provides high sound quality and high convenience in shooting such as promotion video and drama recording by DSLR and video camera.

<Main features>

■ High sound quality "HDDA (High Definition Discrete Architecture) microphone preamplifier" installed

The microphone preamplifier receiving and amplifying the microphone input sound has a great influence on the sound quality of the sound to be recorded.

In "DR-60DMKII", TASCAM's own HDDA microphone preamplifier which carried out elaborate parts selection was installed.

It is a differential microphone amplifier circuit of a discrete structure composed of parts that stick to sound quality, and the equivalent input noise boasts over -120 dBu or more.

AD converter that digitizes the analog signal also carries a device made by CIRRUS LOGIC company which is equivalent to linear type PCM recording machine DR series.

Fidelity digitizes voice amplified by high sound quality HDDA circuit.

■ Enable operation according to subjects to be shot 4 input, 4 track simultaneous recording

It is a 4 channel specification enabling operation such as ambience and microphone for each speaker, two gun microphones and stereo microphone.

The 1 and 2 channels that can input XLR / TRS operate as 2 monaural or 1 stereo for both input and recording, and 3-4 is stereo operation.

Link setting of 1 and 2 channels is also possible.

<About each mode>

MONO / DUAL MONO: Ideal for recording only the voice of a single performer.

STEREO / DUAL STEREO: Ideal for recording with a stereo microphone.

4CH: 2 speakers + stereo microphone, 2 gun mic and + ambience stereo microphone etc

This mode is suitable for recording.

In DUAL mode, you can create backup files for clipping due to excessive input, in a mode where recordings of different levels are performed at the same time.

■ Built-in 4-input 2-output mixer, can also be used for mixer only applications

Built-in mixer function that can mix the total of 4 channels of two XLR inputs compatible with phantom power supply and input by stereo mini jack.

In addition to being able to adjust the level with PAN, a limiter, a three-stage low-cut filter, and a delay that can compensate for the distance between the microphones are carried.

In addition, since MS decode function is also equipped, MS stereo microphone can also be used.

<Specification group specialized for movie shooting at DSLR>

■ Variety of slate tone generators that facilitate alignment with movie files

Built-in generator that can sound slate tone as reference in positioning.

In addition to being able to sound automatically at the start of recording or at the beginning and the end, it is also possible to sound a slate tone at an arbitrary position using the SLATE button.

When inserting automatically: OFF / HEAD (only at the start of recording) / HEAD + TAIL (at the start of recording + ending)

※ In case of automatic, you can also set the length: Choose from 0.5 / 1/2/3 seconds

When inserting manually: Press and hold the SLATE button to sound.

* In order to prevent misoperation, the SLATE button is disabled as the initial setting.

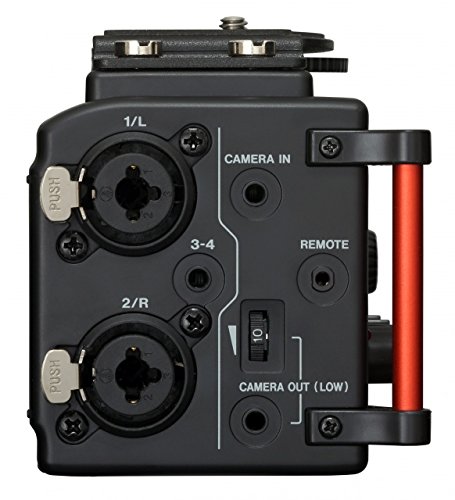

■ CAMERA OUT terminal enabling simultaneous recording with "DR-60DMKII" with camera

Equipped with a dedicated terminal that outputs the mixed voice to the DSLR.

It is possible to record the same sound on the camera as "DR - 60DMKII".

Considering that there are few adjustment items concerning the volume of the DSLR side, it is possible to adjust the output volume by dialing.

In addition, it is equipped with a CAMERA IN terminal that enables audio monitoring of the DSLR.

By using the monitor select function of "DR - 60DMKII" together, it is possible to efficiently monitor not only "DR - 60DMKII" but also the sound of DSLR.

■ Stereo mini-jack microphone input terminal to which a video camera microphone can be connected (3-4)

■ Lightweight 510 g exclusively designed plastic body that combines portability and durability

Among the input terminals, the 3-4 input terminal has a maximum input level of +10 dBV, which is a specification that allows connecting a stereo mini jack output video camera microphone.

You can connect a shot gun mic for XLR connection to input terminals 1 and 2 and a video camera microphone for ambience on 3-4 to record.

Plug-in power can also be supplied.

When installing to rigs and stabilizers, thoroughly reduce weight so as not to interfere with camera work.

Adopting a plastic mold, we realized a body weight of 510 g.

While it is lightweight, it has high reinforcement because it is internally reinforced with a rib structure.

Also designed to have a width of 133 mm so as not to disturb the operation of the camera body.

In addition, the battery panel is placed on the back so that you can replace the dry battery while it is installed between the tripod and the camera.

■ Two screws on the upper and lower sides that enable installation between the camera body and pan head

A screw hole for the tripod on the receiving side is arranged on the bottom of the main unit, and a removable camera mounting screw is provided on the top of the main unit.

Since the top bracket is removable, it can be removed when attached to a rig or the like.

Features:

• Please enter model number Confirm this is compatible:
• Adopted SD / SDHC card which is highly versatile and easy to handle on recording media
• Maximum number of simultaneous recording tracks: 4 tracks
• Recording mode: MONO, STEREO, DUAL MONO, DUAL ST, 4 CH
• Recording format: 16/24 bit, 44.1 / 48/96 kHz (WAV / BWF)
• TASCAM original high sound quality HDDA microphone preamplifier installed

Product information:

Shipping Weight: 839 g

Package Dimensions: 15.01 x 17.80 x 20.60 cm
