Product Description

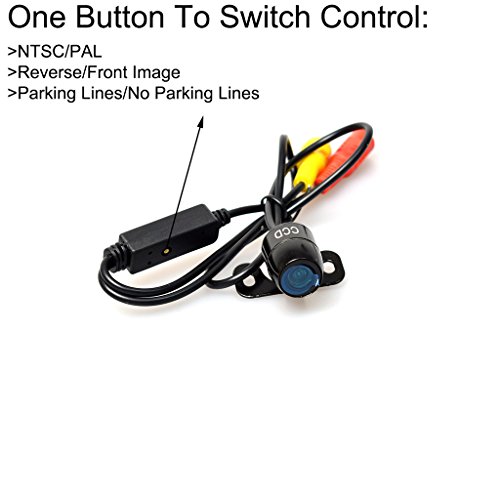

One-Button Control Instruction?
Press one button to perform several functions :?
Swith modes based on continuous button-press times?
1, Open/Close the Guideline (Default Mode : Mode 1)?
2. Image Upside Down/Left and Right Reversal (Mode 2)?
3. Image System NTSC/PAL Shift (Mode 3)?
4. Guideline Selections (Mode 4)?
5.Guideline Moving up and down (Mode 5)?
6. Guideline Left and Right Extension (Mode 6)?
Notes:?1. Continuous button-press interval time is 500MS (0.5s)?
(Count the time since the button is bounced back ,Press time is NOT included)?
2. Press button after the camera goes into a specific mode .?
Make sure button bounce time is within the range of 500MS(0.5s)~3s.(a valid press)?
3. Once stop operation voer 3s,the camera will step into default mode .?
Description:?
-Image sensor: CCD HD (Distance reference marking display)?
- Lens angle: 1.8mm(170deg)?
-Resolution:480TV line?
-S/N Ratio:Better than 48dB?
-Video output:RCA connentor,1.0vp-p,75ohm?
-Power:12V DC(+/-10%)?
-Waterproof grade:IP68?
-Effective Pixels: 628 x 586 pixels/PAL,510 x 496 pixels/NTSC?
-TV System : NTSC?
Packages Included:?
1x Car Rear View Camera?

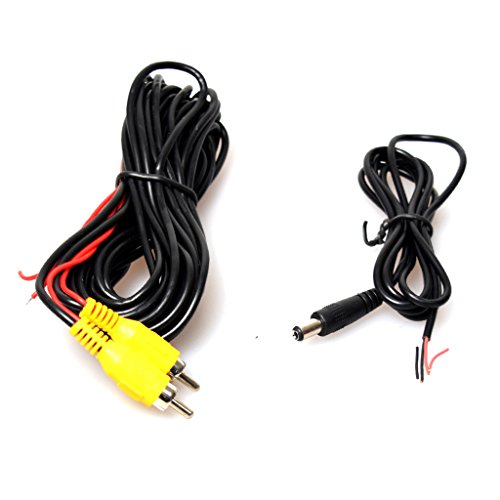

1x DC Power Cable?
1x AV Cable?
1x User Manual?

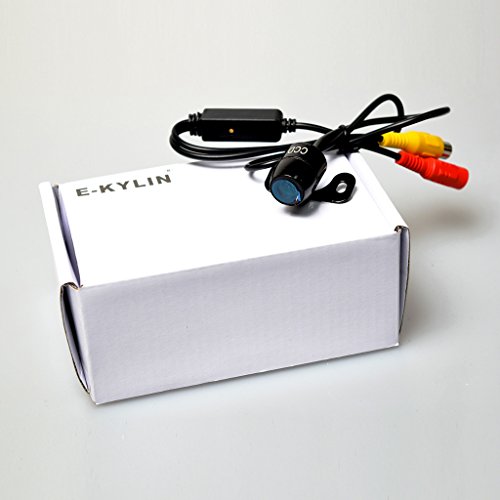

1x Package Box

Feature

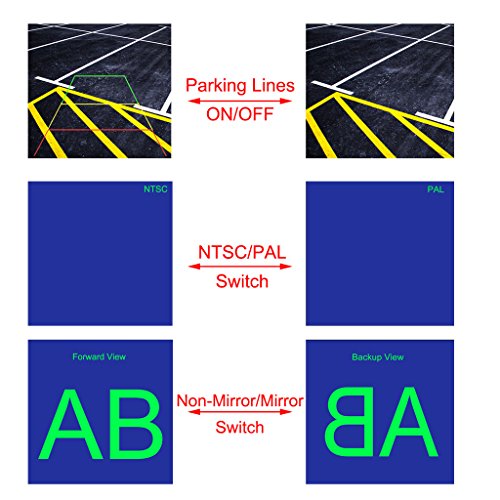

It's not only a backup camera. It has a button control to switch: NTSC/PAL, Parking Lines/No Parking Lines, Reverse/Forward Image. Feel Free to Match!
Hi-definition Color CCD Image Camera.
Mini Size. Drilling/Hanging universal mounting. Parking Assistance Angle Adjustable, Night Vision,Distance Scale Lines, Waterproof.
Power supply: DC 12V - RCA video cable connection. A wide angle viewing camera lens makes sure you can see enough to park and reverse safely.
You will never have to worry about taking your camera off on bad days as it is highly weather resistant and will sustain through any storms.
Brand : E-KYLIN
MPN(PartNumber) : BACKUP_CAMERA_SWITCH
EAN : 0602668597689
