Product Description

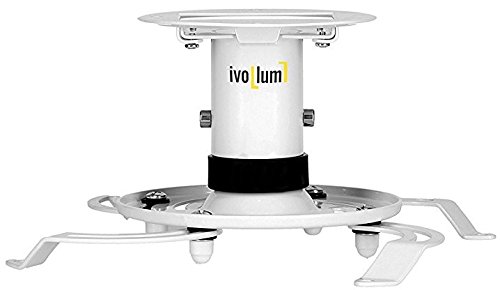

ivolum universal projector ceiling mount

With the ivolum universal projector ceiling mount PDH130 you get a very flexible and widely adaptable projector ceiling mount. The variable arms and load capacity of up to 15kg allows use with almost all popular projectors. The short length of only 13cm ensures an unobtrusive installation.

Universal and flexible

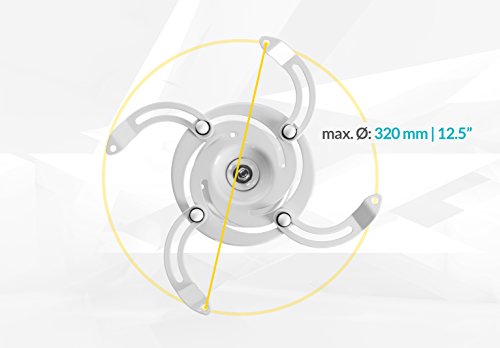

All four arms can be individually rotated and thanks to the long range from a minimum of only 2.5cm to a maximum of 32cm in diameter, its ideally suited to the mounting points of your projector. In addition, the ivolum PDH 130 can be tilted in any direction up to 20° and allows you to precisely align with your projector with the projection surface.

?

Key information:

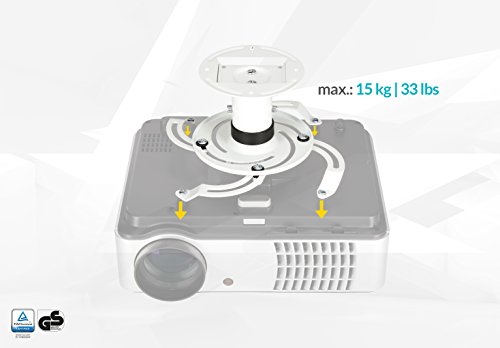

• Load capacity up to 15kg

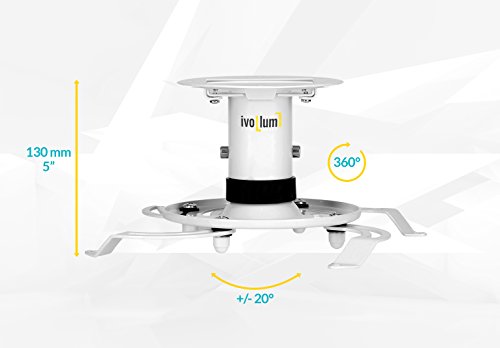

• Tiltable in all directions by /- 20 °
• Rotation 360°
• Max. Diameter pickup points: 320mm
• Height: 130mm (distance between ceiling and projector)
• Includes M3, M4, M5 and M6 screws for mounting the projector
• TUV / GS tested and certified
• Colour: White

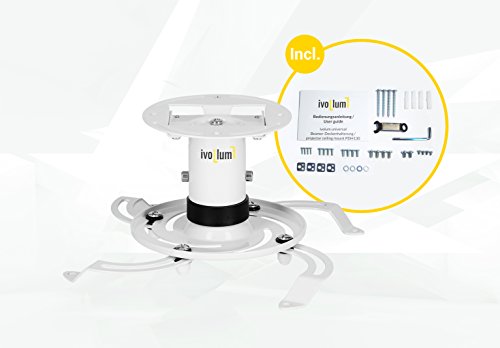

In the box:

• 1x ivolum universal projector ceiling mount PDH130
• 1x set of mounting accessories for concrete ceiling
• 4x M3x10mm screw, 4x M4x10mm screw, 4x M5x10mm screw, 4x M6x10mm screw
• 1x user manual
