Item Descriptions:

Product introduction

Product Features:

(1) Connected to the constant power supply of the car, it is possible to supply power to the drive recorder all the time.

(2) Power can be supplied even after the engine is turned off, and it corresponds to products of the crime prevention detection function.

(3) The smart, always-on direct power cord is designed to provide an automatic shutdown function by changing the voltage, so even when using the power cord at all times, it also supports battery rise prevention.

(4) Automatic shutdown function (when output voltage is lowered):

In the case of 12 V, it starts when the power supply always falls below 11.6 V (error ± 01 V).

In the case of 24 V, it starts when the power supply always falls below 23.6 V (error ± 01 V).

In the case of 36 V, it starts when the power supply always falls below 35.2 V (error ± 01 V).

(5) It is possible to secure the voltage that can activate the engine of the car with the automatic voltage cutoff function when the voltage of the constant power supply is low.

※ Because this product can not guarantee that it can correspond correctly or operate properly depending on the car model of the car and the characteristics of the always-on power supply, please note it beforehand.

Product Specifications:

Rated voltage: 12 to 36 VDC

Rated output voltage: 12 to 36 VDC

Rated output current: MAX 1.8 A

Output voltage protection cutoff: 12 V: 11.6 V or less, 24 V: 23.6 or less, 36 V: 35.2 or less

※ Product specifications may be changed without prior notice for improvement.

Mounting method:

It can be connected directly to the car's regular power supply, fuse box (ACC) or car 12V to 36V power supply, etc. There are two wired connection methods with BAT & ACC; (+) red and GND (-) black code.

1, BAT & ACC of this product; (+) Connect red to the always-on power supply (+) or to the always-on fuse of the fuse box.

Please connect the GND (-) black color of this product to the constant power supply (-) or the GND ground (-) of the car or the bolt of the car metal part.

In this case, even if the engine of the car is turned off, power can be supplied from the power supply at all times, and the connected equipment will continue to operate as it is.

2, BAT & ACC of this product; (+) Connect red to ACC (+) or ACC (+) of the fuse box.

Please connect the GND (-) black color of this product to the GND earth (-) of the car and the bolt of the car metal part.

In this case, after turning off the engine of the car, it becomes impossible to supply the power, and the operation of the connected device is stopped.

※ In case of insulation countermeasure environment or insulation countermeasure tool, there is a danger of electric shock.

Please be careful.

※ ※ After mounting with smart, always-on direct power cord, be sure to check whether the electrical equipment of the vehicle operates normally ※

Notes on use:

※ This product is for our PAPAGO! Product only.

Please note that you can not connect with other companies' products or use in combination.

※ We do not support detailed setting method, installation method, handling and each function etc at our company.

Please note.

※ Please be sure to connect and install with the car engine stopped.

※ In case of insulation countermeasure environment or insulation countermeasure tool, there is a danger of electric shock.

Be sure to work on countermeasures.

※ Because this product can not guarantee that it can correspond correctly or operate properly due to the car model and constant power supply characteristics etc., please be sure to check the operation before installing the product.

Also, please check and check the products regularly installed and the status of each contact terminal etc. reliably.

* If you make a mistake in voltage conversion, wiring, etc., there is a risk of product failure, electric shock, car engine failure, natural disaster, fire or other accidents or serious accidents.

Be sure to consult with a car remodeling dealer or specialist shop, please do this work.

In addition, we are not responsible for any damage or damage caused by your intentions or negligence, remodeling of products, damage or damage to third parties.

* Do not always install the power cord by yourself, please be sure to consult with shops and business owners who are able to provide car maintenance.

* In the summer, because the car is in direct sunlight at the time of stopping for a long time, it becomes considerably high temperature inside the car, (for example, 75 degrees or more) In such an environment it will cause breakdown of this product.

Please check and confirm yourself, please use.

* Since this product will be used at your own judgment and responsibility, we will not bear any responsibility, so please understand.

※ When using this product, if you feel something wrong or inconvenience / abnormality, stop using it immediately, please consult the shop or store specializing in car maintenance · business person.

Usage notes

This product is only for our PAPAGO! Product.

Please note that you can not connect with other companies' products or use in combination.

Features:

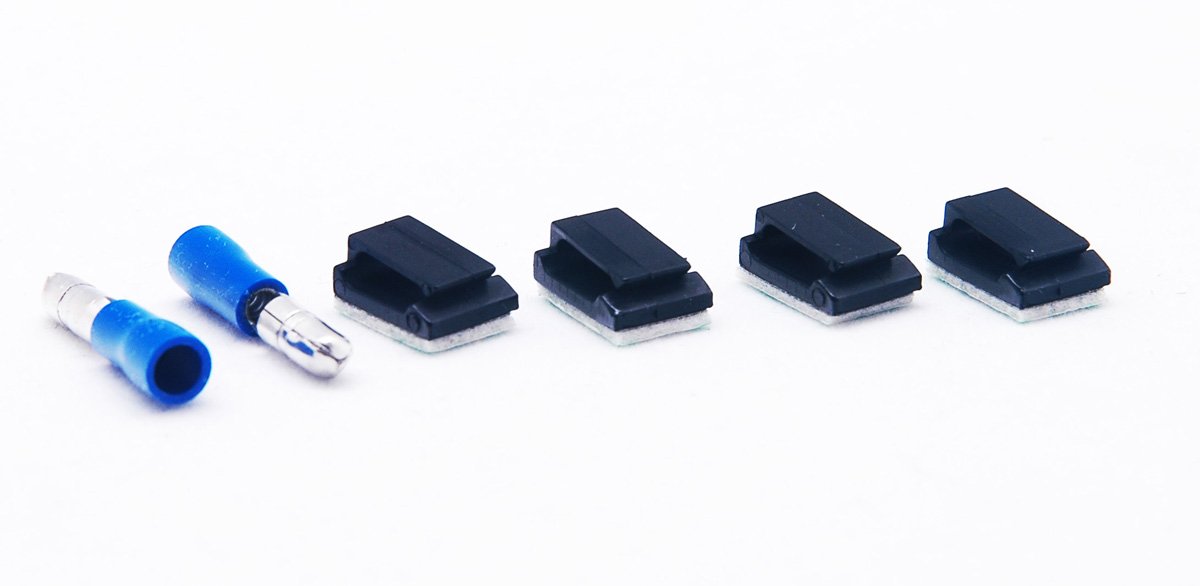

• Accessory: Bogishi terminal and tie wrap are included
• Cable length 4.0 m Rated voltage DC 12 to 36 V Rated output voltage DC 12 to 36 V Rated output current MAX 1.8 A Output voltage protection cutoff 12 V: 11.6 V or less 24 V: 23.6 V or less 36 V: 35.2 V or less
• "Supported models" GS 110, GS 110 P, GS 115, GS 118, GS 272, GS 200, GS 268, GS 318, GS 372, GS 381, GS 388 mini, GS 300, GS 310 P, GS 350, GS 510 P, GS 520, GS 525, GS 360

Product information:

Shipping Weight: 99 g

Package Dimensions: 2.79 x 11.51 x 16.00 cm
