The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation.
SPECIFICATIONS
| Temperature Range | -32℃~380℃(-26℉~716℉) |
| Accuracy | ±2%or2℃ |

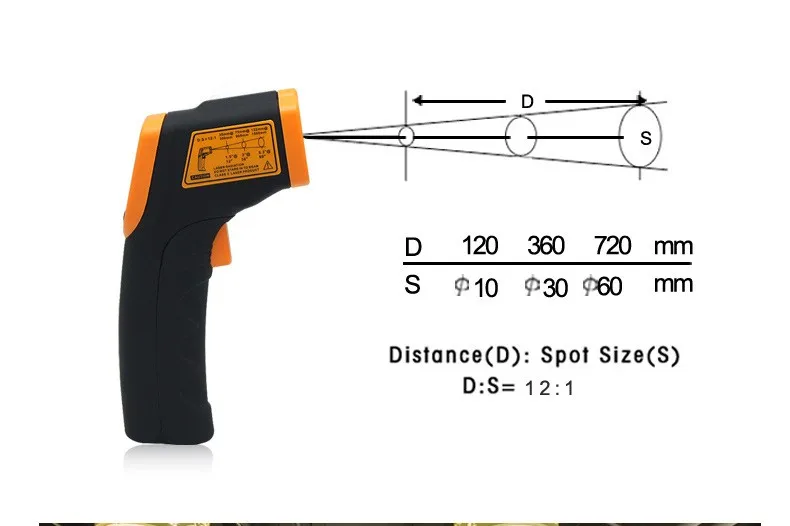

| Distance Spot Ratio | 12:1 |
| Emissivity | 0.95 pre-set |
| Resolution | 0.1℃or 0.1℉ |
| Wavelength & Response | (8-14)um&500ms |
| Time | |
| Repeatability | ±1%or±0.1℃ |
| ℃/℉Selection | √ |
| Data Hold Function | √ |
| Laser Target Pointer Selection | √ |
| Backlight Display Selection | √ |
| Auto Power Off | √ |
| PACKING INFORMATION | |

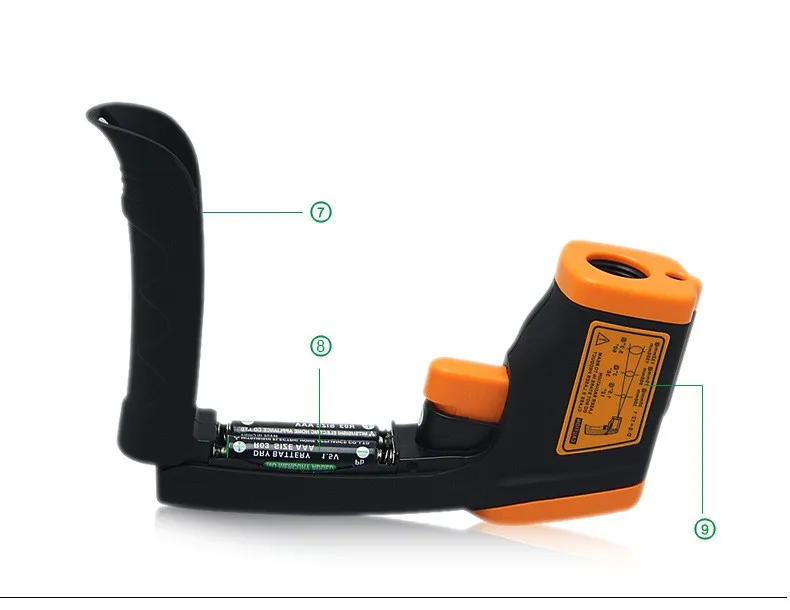

| Power | 2*1.5V AAA batteries |
| Product Net Weight | 130g |
| Product Size | 146*80*38mm |
| Packing Style | Blister |
| Standard Quantity Per Carton | 60PCS |
| Standard Carton Size | 56*26.5*46cm |
| Standard Carton Gross Weight | 10.36KG |
