Item Descriptions:

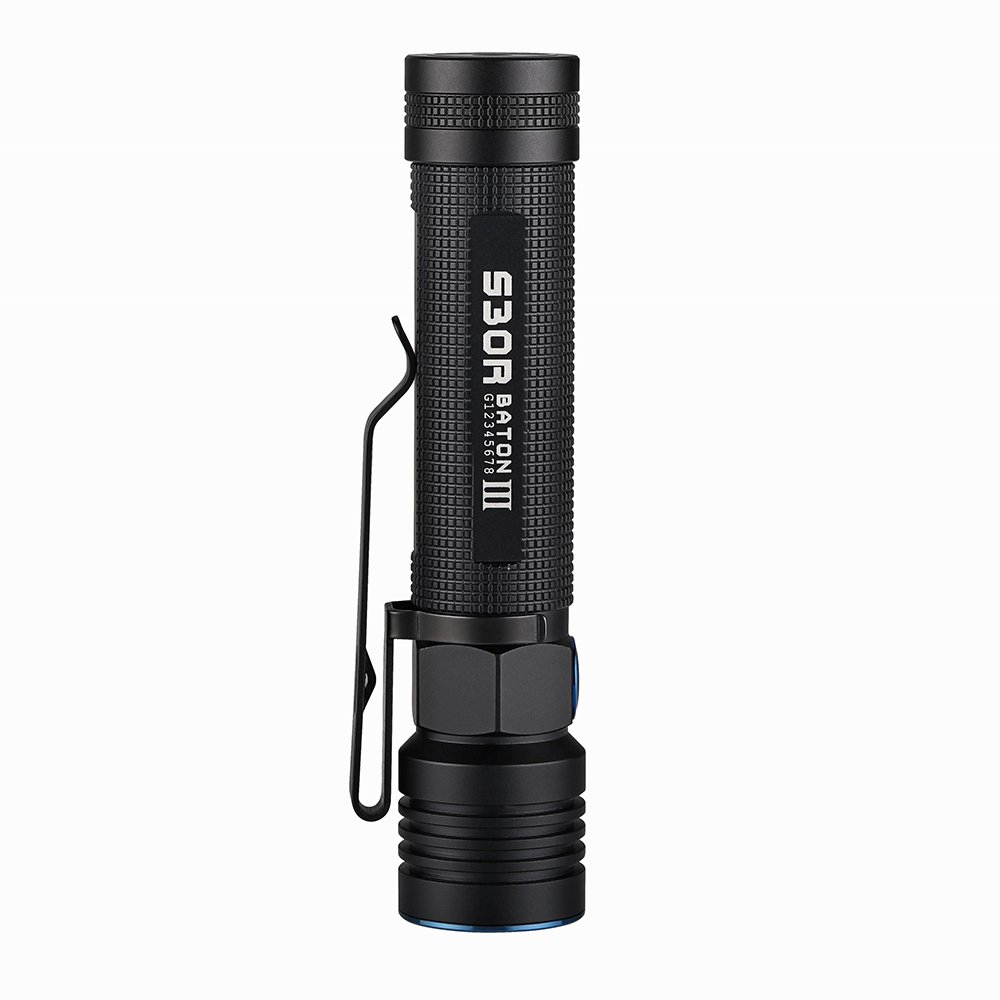

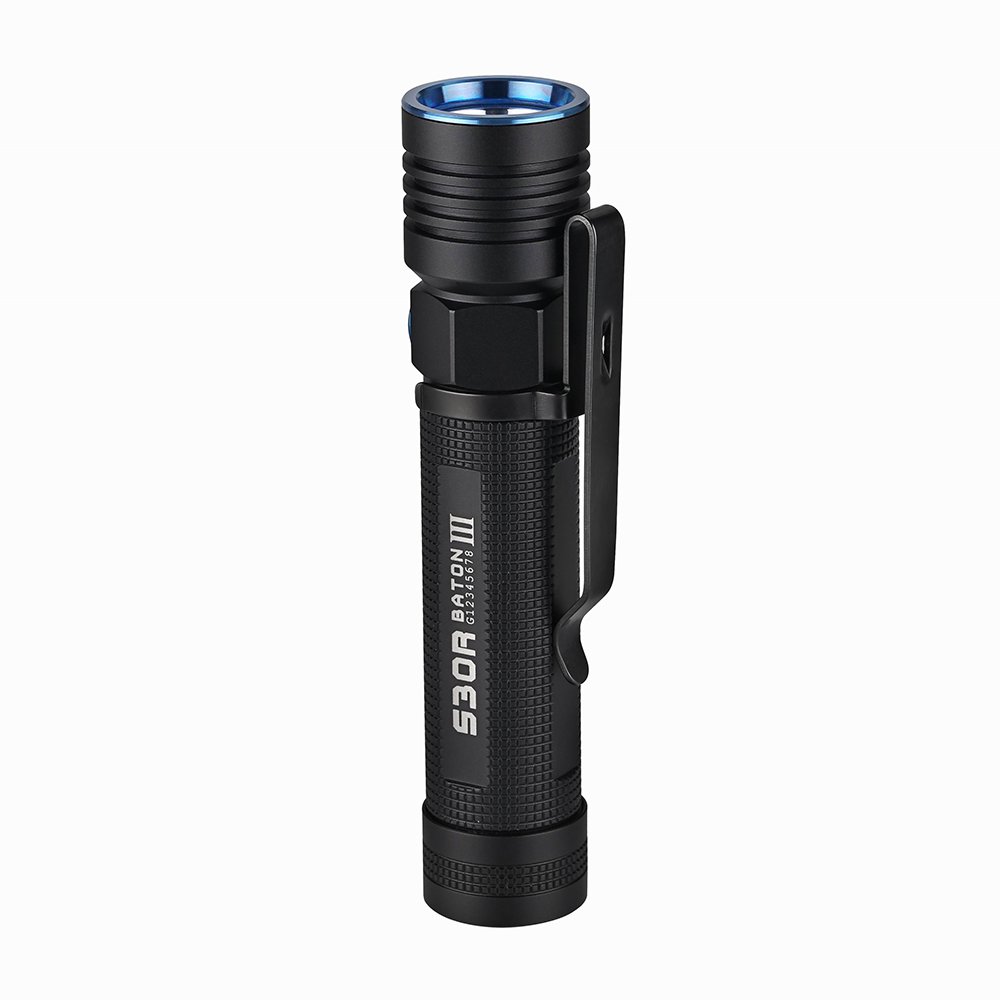

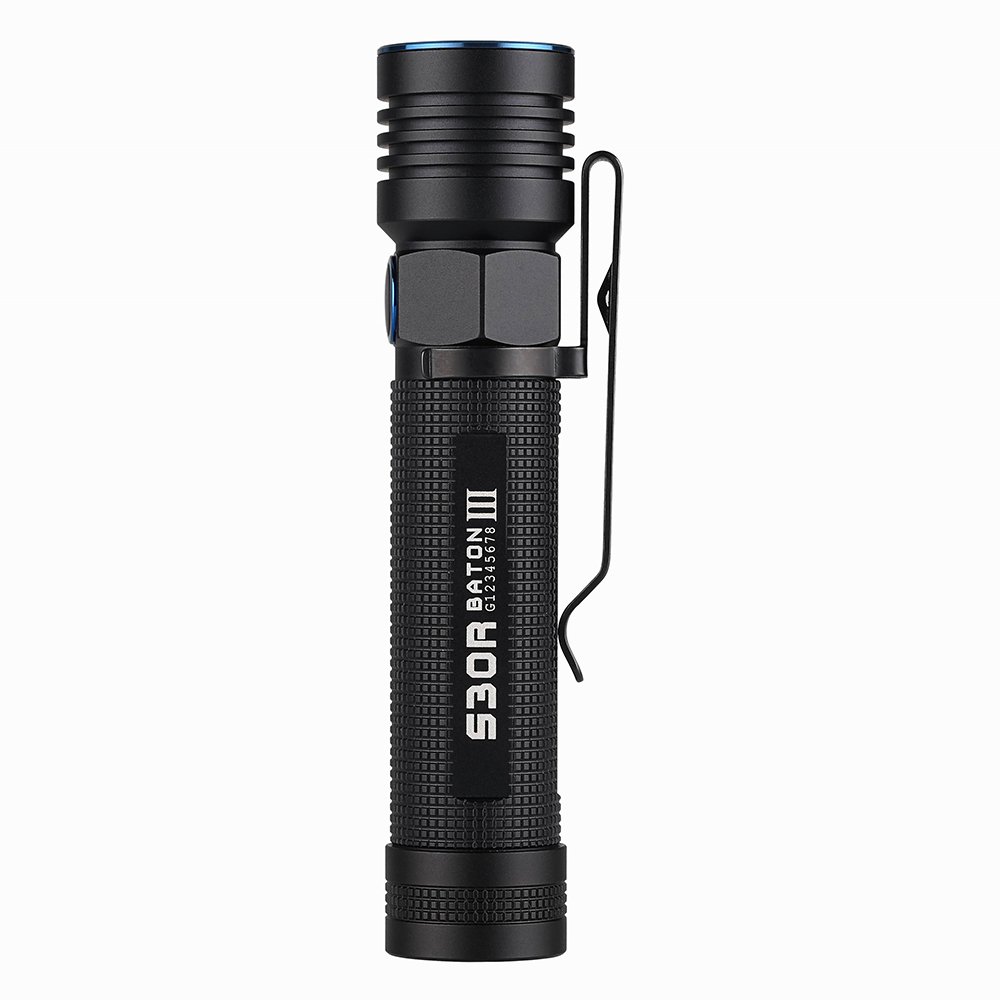

S series flagship model OLIGHT S30R - Ⅲ!

1 x CREE XM - L2 CW LED chip mounted and brightness of up to 1050 lumens!

LED flashlight!

Body material: 6061 - T6 aluminum alloy, 5 step brightness switching function + strobe mounted, can be used in various places.

Without the trouble of replacing the battery, you can supply power from the USB port, high-performance LED light with charging stand, OLIGHT S30R BATON III rechargeable LED flashlight, so if you prepare a USB port in the cigar socket,

It is also a convenient product that can also be charged.

Disaster prevention, climbing, work, recommended for evening fishing!

!

It can be used widely for disaster, outdoor, camping, night fishing etc. and work in dark places.

Magnet equipped in the tail portion.

It can also be used hands-free by sticking it on an iron rack etc.

specification:

Body material: 6061-T6 Aluminum alloy structure, surface III hard alumite treatment

Lens: PMMA lens <br> MAX 1050 lumen

LED light: 1 x CREE XM - L2 CW LED adopted

Brightness is 5 kinds:

Mode 1: 1050 lumens / 2 minutes, 500 lumens / 200 minutes

Mode 2: 500 lumens / 210 minutes

Mode 3: 120 lumens / 15 hours

Mode 4: 12 lumens / 130 hours

Mode 5: 0.5 lumens / 100 days

High efficiency constant current drive circuit, wide input voltage, even in the case of 2 × CR 123 A battery in case of proof is also in excellent condition.

10HZ strobe

Drip-proof performance: IPX 8 (2 M under water)

Fall prevention: 1.5 meters

Light irradiation intensity: 8840 cd

Maximum irradiation distance: 188 M

Corresponding battery: 1 x 18650 (3500 mAh 3.6 V with 18650 rechargeable battery)

Size: Length about 114 mm × diameter about 25 mm

Weight: Approx 110 g (including batteries)

Warranty period: 5 years

The body material is subjected to TYPE 3 HA surface treatment which is resistant to rubbing using AL 6061 - T 6 aluminum alloy

The body material is AL6061 - T6 aluminum alloy and it is resistant to rubbing TYPE 3 HA surface treatment has been applied so it can be scratched

It's strong so you can use it with confidence.

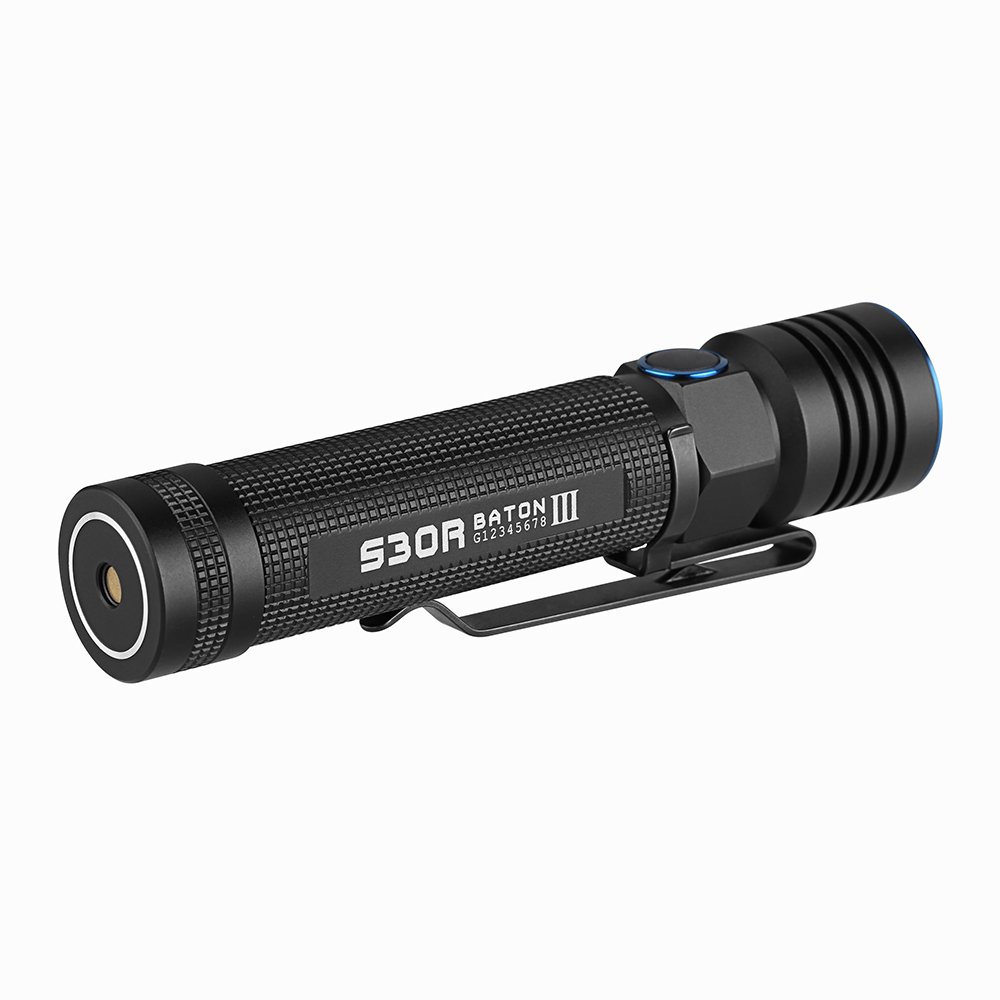

There is an electrode for charging on the rear part, which corresponds to dock charging and pad charging.

Since the magnet is built in the tail part, it sticks to the metal surface.

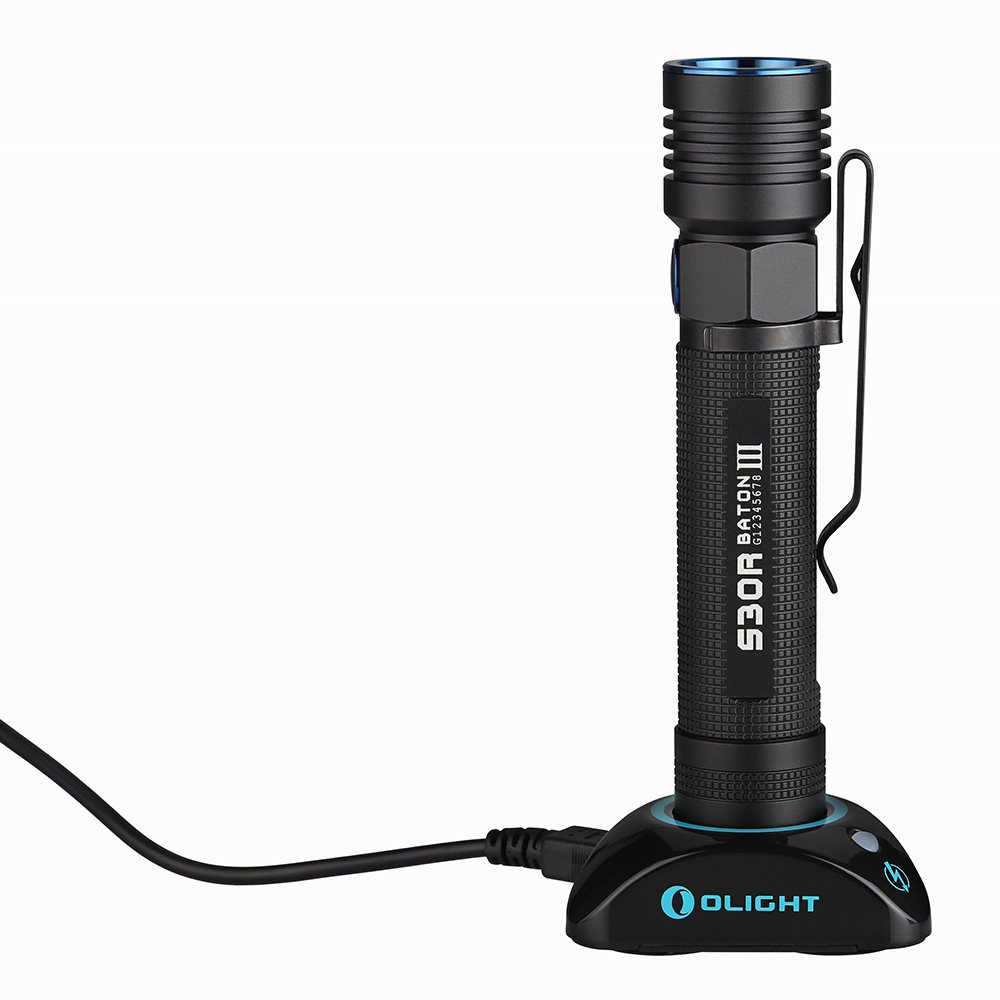

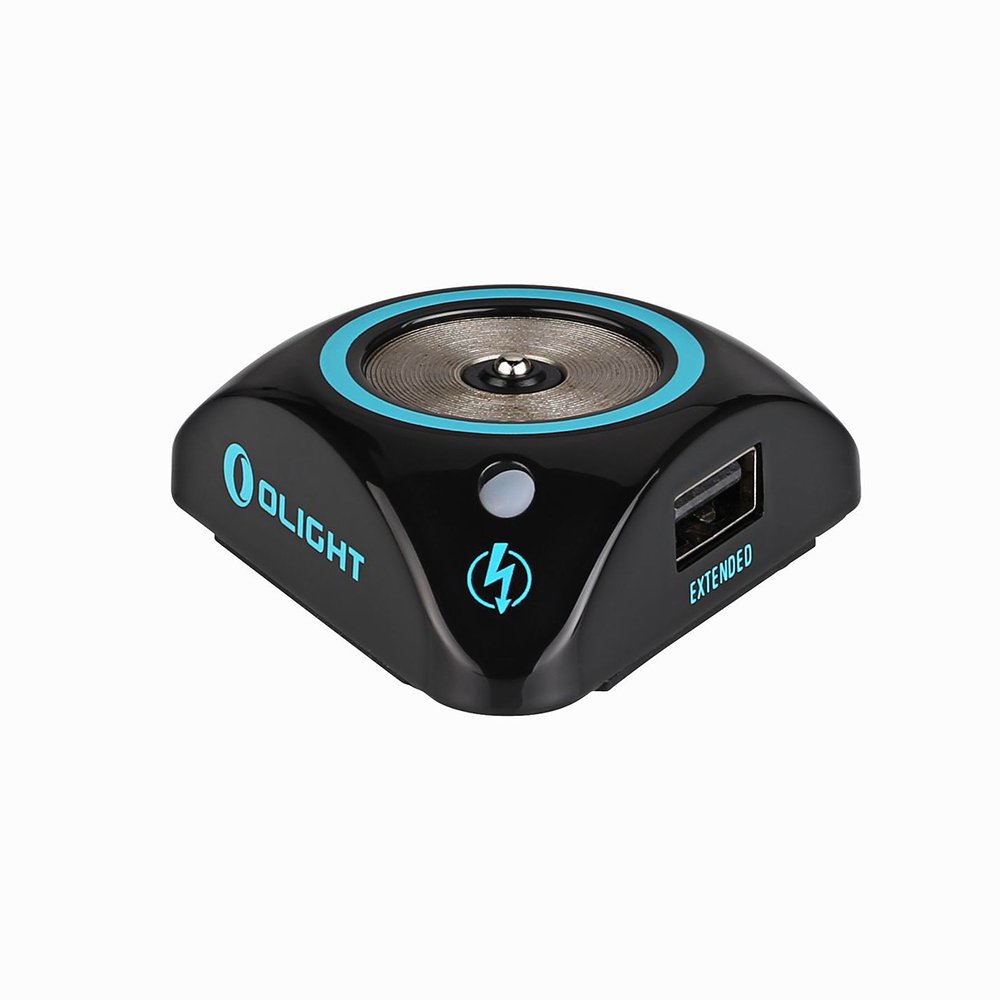

The charging dock included in S30R III also became MICRO - DOK III, and three suction cups were installed at the bottom.

Traditionally, the dock was fixed with double-sided tape, but by making it a sucker, it became easier to move and change the installation place more easily.

The sucker is made of adhesive material with silicone, and it is designed to be adsorbed even in places with somewhat irregularities.

charging:

Charging starts as soon as you set the light in the dock, while the dock indicator is starting charging / charging

【Red】

When the charging is completed

【Green】

It lights up.

battery:

It is a special battery that also has [-] contacts on the [+] side of the rechargeable battery attached to the S30RIII body.

This dedicated battery is required to charge using the charging dock or charging pad

.

To charge with the charging function of S30R III 18650 rechargeable battery dedicated to OLIGHT S30R-Ⅲ which is attached to the S30R main unit is required.

Low voltage warning:

The low-voltage alarm indicator will light when the battery voltage drops to about 3.1 V (± 0.1 V).

S30R III charging method

Although it is a dock type, it is possible to charge the S30RIII also pad-type by using Olight MCC (sold separately).

Since the MCC charging cable is the same as the pad type charging cable attached to S1R / S2R / H1R / H2R, if these models are already on hand, it belongs to S10RIII / S30RIII

It is also possible to operate mutually with MICRO-DOK III

is.

The latest high performance light OLIGHT S30R - Ⅲ with high quality and charging function!

Method of operation:

When you double-click the switch regardless of whether it is on or off, it lights up with 【Turbo】

To do.

[Turbo] 's continuous lighting time is limited to 2 minutes maximum, and when it exceeds the time limit it will be automatically dimmed to 500 lumens.

※ The lighting at 1050 lumens of [Turbo] is limited to 18650 corresponding to high drain at full charge condition.

[Moonlight] start by long pressing the switch from the off state.

If it turns off with [Moonlight] as it is it will start to light with [Moonlight] without long press when re-lighting next time.

When you start to light up with [Moonlight] and press and hold the switch for a long time, the mode shifts in the cycle of 【Moonlight】 - 【Low】 - 【Med】 - 【Hi】 - 【Low】 ... but when changing the continuous mode again

It does not enter [Moonlight].

It has a mode memory and is lit again in the memorized mode at the next lighting.

(* Excluding Turbo and strobe)

In case

Lockout function

When you press and hold the switch for a long time, it lights with [Moonlight], but if you hold it as it is, it will be set to the lockout mode to prevent accidental lighting after turning off [Moonlight].

* When the switch is operated in the lockout state, the main light lights up with [Moonlight] only while pressing the switch.

※ To cancel the lockout mode Lights with 【Moonlight】 and then keep pressing the switch for a longer time.

* When you release lockout, 【Moonlight】 starts unconditionally.

Timer function

Double-clicking the switch when it lights up will put the timer mode, but if you double-click quickly as "Pochi, Pochi", it will be in "Turbo" mode.

The timer can switch 9 minutes / 3 minutes

It blinks twice for 9 minutes and blinks once for 3 minutes and turns off automatically when the set time has passed

To do.

When turning off with the main switch or turning off with the timer, the timer setting is canceled.

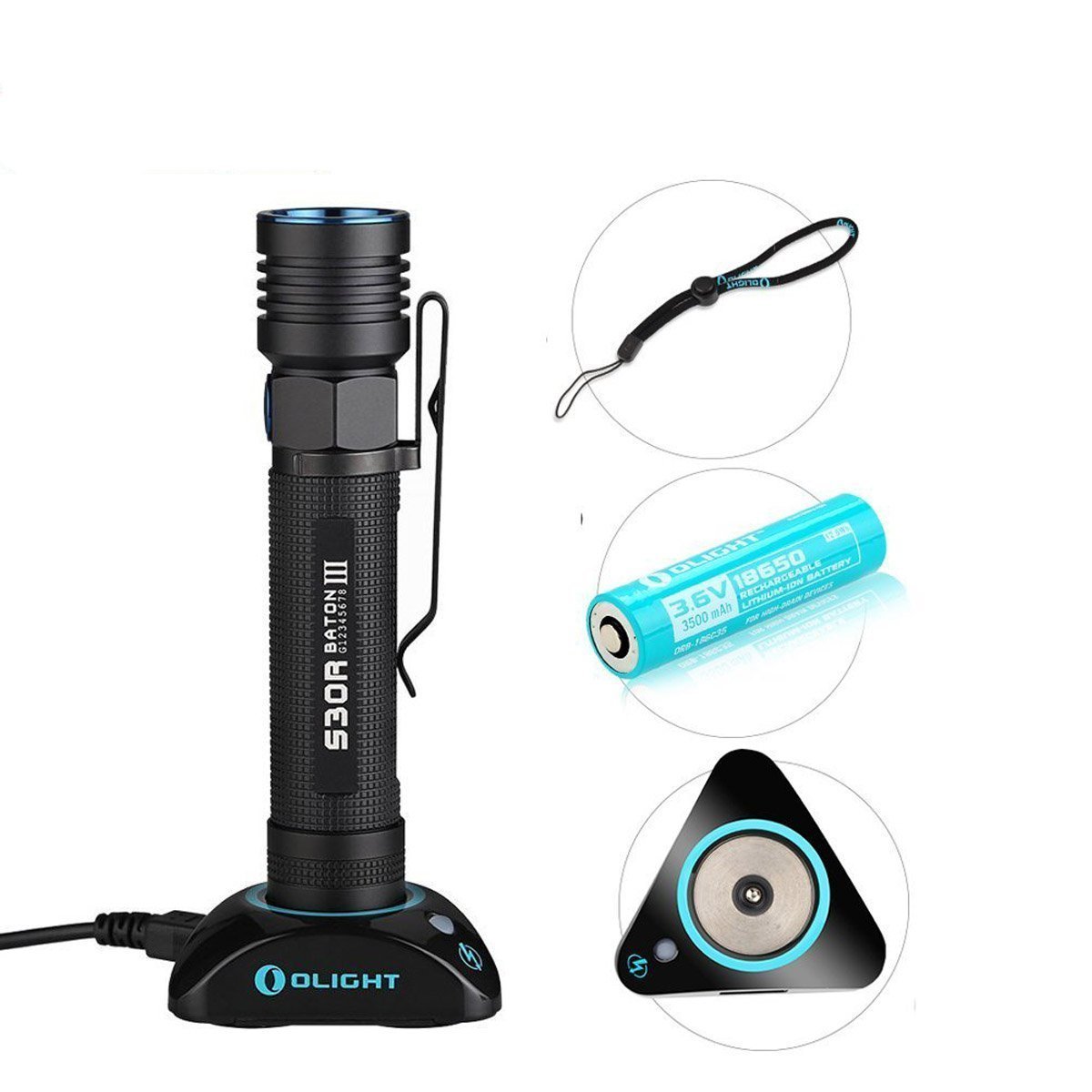

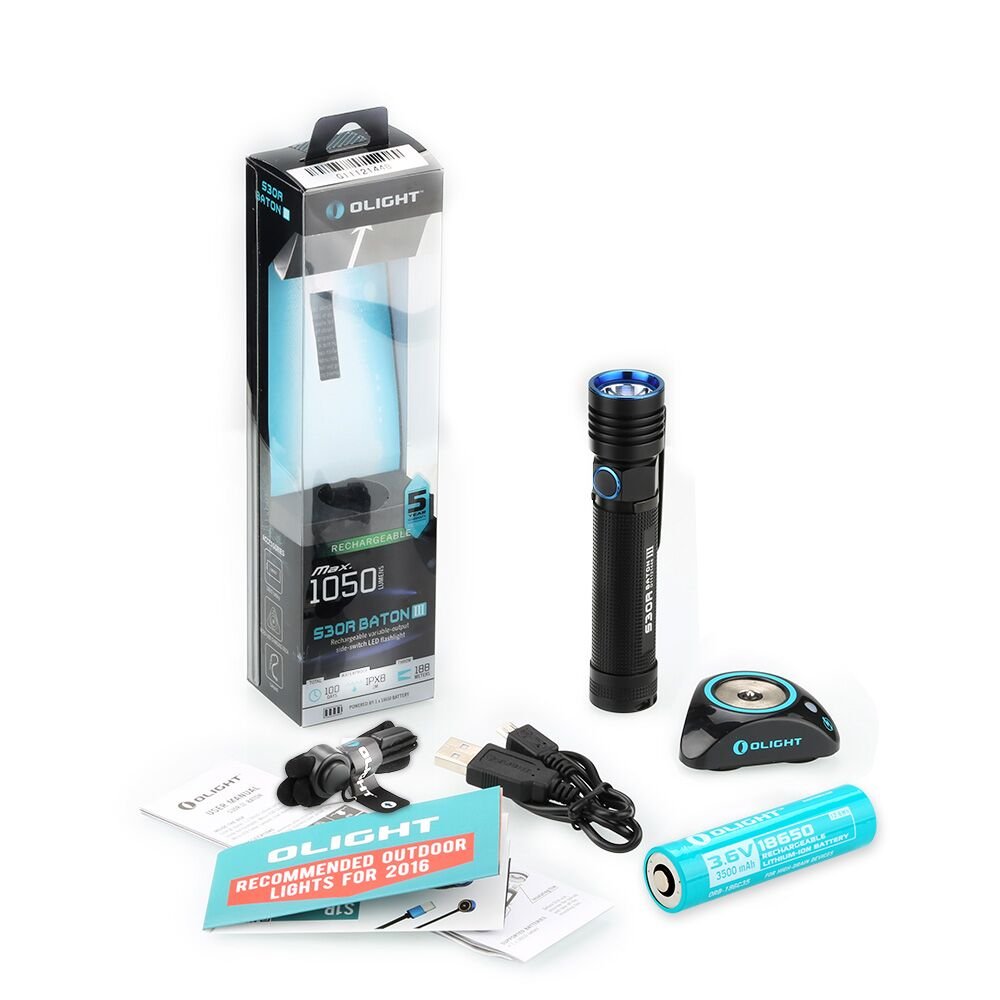

Package list:

S30R III flash light body

18650 3.6 V (3500 mAh) rechargeable battery × 1

4.2 V 1000 mAh charging dock × 1 piece

50 cm micro USB cable × 1

User manual (with Japanese manual)

Strap

Features:

• Easy charging!
• Put on only charging dock OLIGHT S30R BATON III rechargeable handy light.
• 1 x Cree XM - L2 LED chip mounted and brightness of up to 1050 lumens!
• 5 steps brightness switching function + strobe mounted, can be used in various places.
• High Quality Aviation Aluminum Alloy Configurations, Drip-proof Performance: IPX8 It is rainy to use, the impact resistance is also strong.
• It is also recommended for disaster prevention, climbing, work, night fishing.
• LED flash light which can be used widely for disaster, outdoor, camping, night fishing etc. and working in dark places.
• Purchase of charger is from this link from now on: http: //amzn.asia/huT1nQG

Product information:

Shipping Weight: 249 g

Package Dimensions: 5.31 x 7.70 x 22.00 cm
