Product Description

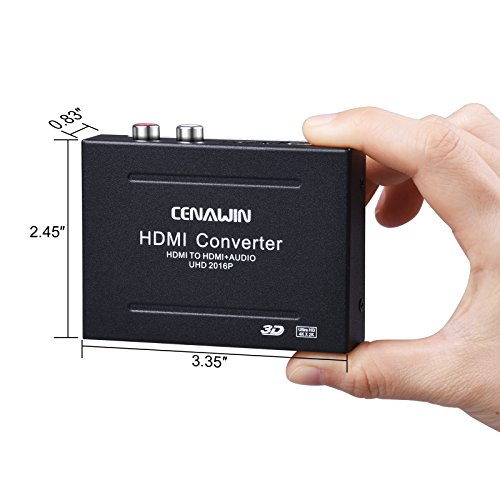

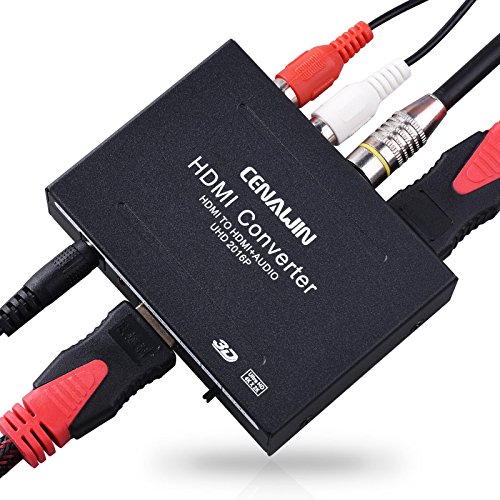

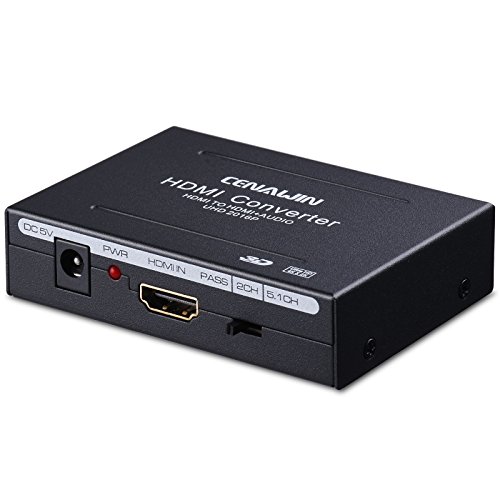

Cenawin 4K HDMI Audio Extractor and Optical SPDIF Toslink L/R Stereo Analog Audio Output for Blu-ray/ DVD/ HD player, Roku or Chromecast etc.

Specification:

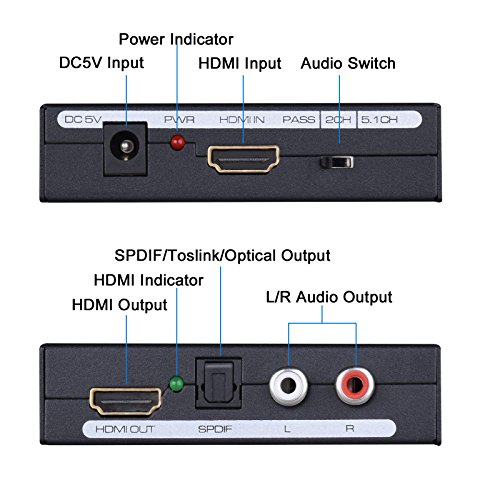

Input Port: 1 x HDMI IN, 3 x EDID Audio(Pass/2CH/5.1CH)

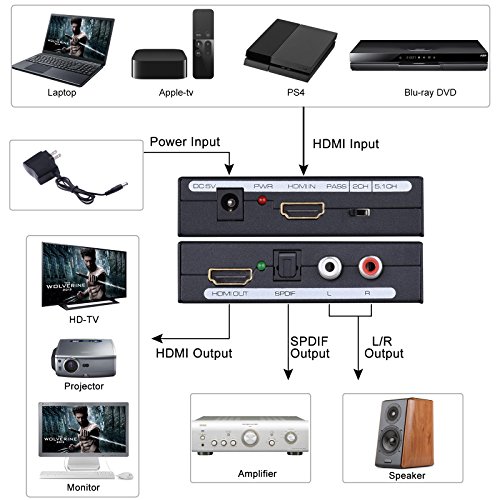

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), L/R Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA

3 switching audio EDID settings:
1. When your audio source is 2.0, no matter which format(2.0ch/5.1ch) you switch, you only can get 2.0ch.
2. When your audio source is 5.1CH, switch the format to pass,the audio output from optical is 5.1, but the L/R Stereo only can get 2.0CH.
3.When your audio source is 5.1CH, switch the format to 5.1, the aduio output from optical port is 5.1CH, the audio output from the L/R Stereo is 2.0

Kindly Note:
1.Not Support Dolby Digital Plus audio, it is support DTS Audio and Dolby digital audio.
2.NOT SUPPORTcopyright protected content; game headsets

Package Contents:
1 X HDMI Audio Extractor
1 x Power Adapter
1 X User Manual

?
