Item Descriptions:

Noah 'sark EFFECTS AC / DC - 1 is an epoch - making power supply that houses various functions required around the power supply of the effector board in one unit.

Now that the sound making centered on the compact effector has been reviewed for a long time, the effect board of various materials and sizes and the interface (A / B Box and loop system) for effectively using it are also enriched.

However, items related to the power supply are lacking in fullness at the moment, do not many people incorporate effector boards with hardships?

The majority of the hardships are thought to be AC ​​connections for units that require adapters and outlets.

Until now, there was almost no floor type AC power tap dedicated to musical instruments, and we had no choice but to use table taps for home use and OA.

Also, in that case too, it was very inconvenient that the adapters with different sizes blocked neighboring outlets and were not stable.

This machine AC / DC-1 was developed exactly as a power supply for the effect board to solve these problems.

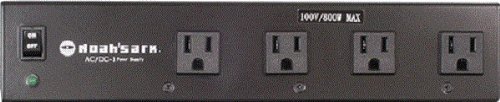

● AC output

In accordance with the size of the adapter for general musical instruments, we set up the necessary space between the outlets.

This allows you to connect most instruments adapters side-by-side.

In addition, we made some depth (60 mm) for stability of the adapter.

Combined with the heavy feel of the steel rugged chassis, it is also excellent in stability during live use.

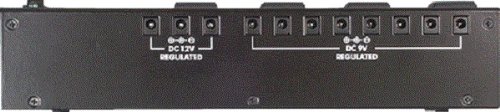

● DC output

In addition to the classic center minus 9 V, 12 V is also equipped.

Up to 8 DC 9 V and 3 DC 12 V can be connected.

* We are using high capacity transformers of large capacity boasting up to total 1A, so it is safe for those who use a lot of effectors.

The DC output can be turned on / off with the SW on the top side, further equipped with the regulation function, and it supplies stable power supply.

Also, these DC terminals are laid somewhat above the chassis to make it easier to organize the DC code routing.

Note: Please be careful not to connect DC 9 V and DC 12 V by mistake.

There is a risk of damaging your equipment.

● Power cable

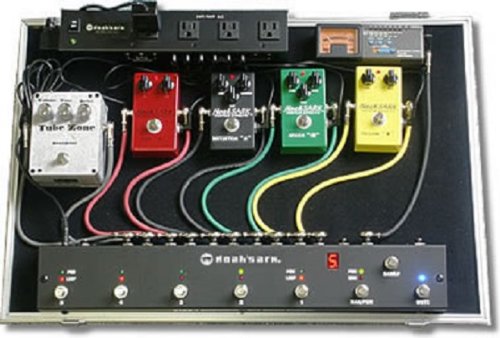

We assumed L-shaped code in consideration of the direction of extension of the code, assuming the position considered to be the most when installing this machine (the upper left part of the effect board as seen from the player).

Moreover, since it is detachable, it can easily deal with trouble of cord body such as inner and outer wire breakage due to twist / external pressure etc.

Note: Please be careful not to connect DC 9 V and DC 12 V by mistake.

There is a risk of damaging your equipment.

● Specification

Input: 100 V 50/60 Hz,

Output: AC - 100 V x 4 (total 800 W maximum)

DC-9 V x 8 (negative center pin, regulated)

DC-12 V x 3 (negative center pin, regulated)

Dimensions / W300 × H60 × D60 (mm) ※ Height does not include rubber feet (8 mm)

Weight / 1050 g * Power cord not included

Features:

• Please enter model number Confirm this is compatible:
• A power supply for the effect board that integrates the elements necessary for power supply to the compact effector
• Input: 100 V 50/60 Hz, Output: AC-100 V x 4 (total 800 W maximum)
• DC - 9 V x 8 (negative center pin, regulated), DC - 12 V x 3 (negative center pin, regulated)

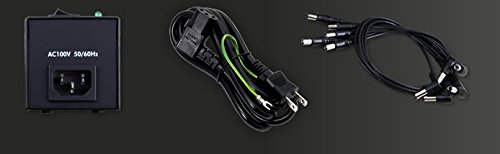

• L-shaped power cord × 1, DC cable (L / S plug: 45 cm) × 5 supplied

Product information:

Shipping Weight: 1886 g

Package Dimensions: 8.30 x 12.19 x 33.40 cm
