Item Descriptions:

This product is important to protect your family, property and yourself.

I think that it is an indispensable tool in fields such as home and office.

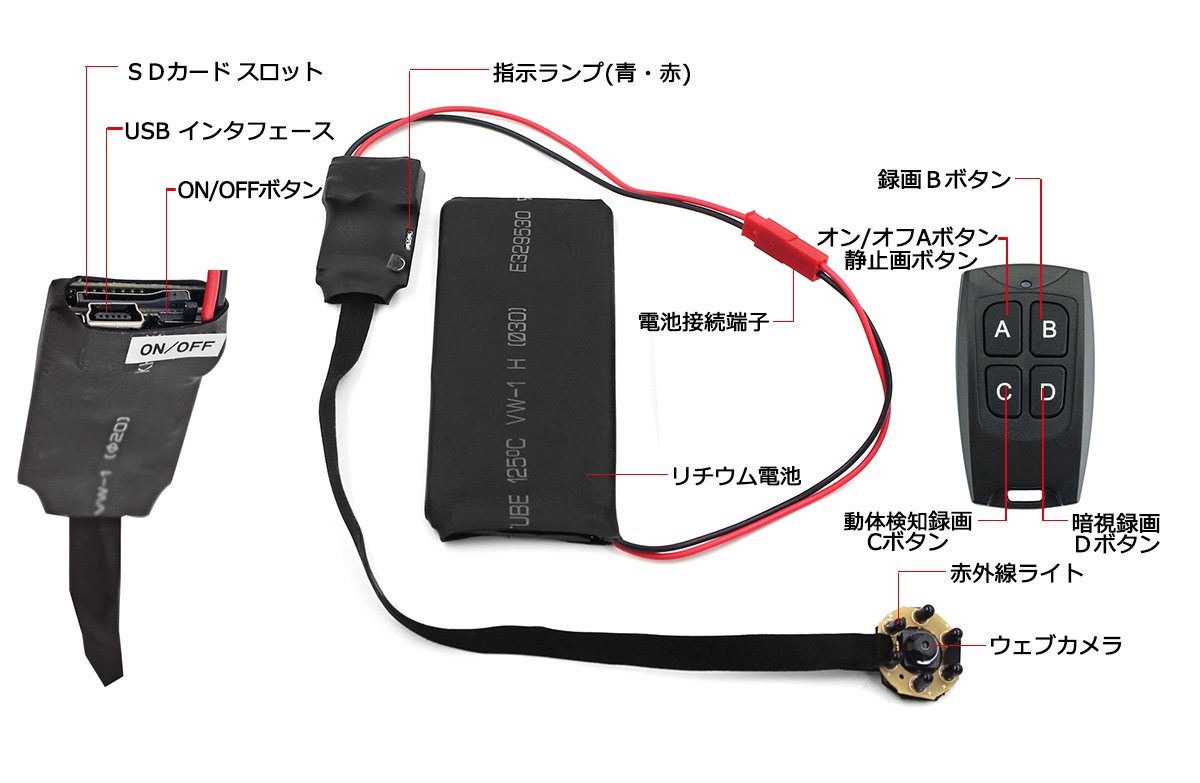

The compact camera board completed unit is a board on which a small camera can be built.

【Product function】 Movie shooting · Still picture shooting · Moving object detection function · Infrared light night vision function · Repeat recording function · External power supply correspondence · Remote control distance operation · High sound quality microphone · Date setting function.

High performance small security camera, completed board unit.

This product which does not have its own shell (appearance) because it is a substrate.

Clothes, accessories, puttings, household goods, household appliances, toys, stationery, carry items around the body.

It is a product of security items that evolve everything into small security cameras.

Video size realizes high quality picture recording of full high definition 1080P.

In case

With a small remote control, remote operation is possible from a distance of about 10 m away.

The main body supports 3800 mAh of battery capacity, 32 GB compatible and can save up to 5 hours of data.

A spy item of a dream that a spy item in a movie reality, a professional detective is also used.

■ Evidence collecting items to protect yourself in daily life such as stalkers, suspicious people, DV damage etc.

■ To protect important people, such as nursing homes and babysitter suspected abuse.

[Product specifications]

Movie resolution:

1920 x 1080 AVI

Still image format:

JPEG

frame rate:

Maximum 30 fps

Remote control operation range:

Within 10 meters

Interface:

USB 2.0

Built-in microphone:

High performance microphone

Video recording:

microSD Maximum 32 GB

Operating humidity:

15 to 85% or less (without condensation)

charging time:

About 4-5 hours

Motion detection distance:

6 meters

Record while charging, realize recording without interruption

Backup battery capacity:

3800 mAh rechargeable battery

Operating time:

Recording Approximately 5 hours or more ※ We will change according to your usage environment.

Correspondence

OS

Windows me / xp / 2003 / vista; Macos; Linux

Easy operation at long distances, dedicated remote control, can be operated within 10 meters on the main unit.

photography

Please turn on the switch ON / OFF button on the main unit side, then turn on / off the remote control on / off button A long press the blue light, if the blue light goes on standby status standby state, press the A button shortly,

When the blue lamp flashes once, I took a picture.

Record shooting

: When the blue lamp lights up, you can set the camera to standby, press the recording B button, if the blue lamp flashes three times and it disappears, recording can start.

Motion detection recording

: If the blue lamp is lit, move to the standby state, press the C button, switch to the standby state for motion detection, search for moving objects, record in moving object detection automatic, move the moving object in 3 minutes

If not, it returns to the standby mode for motion detection.

Infrared night vision recording:

When the blue lamp lights up, the standby state is entered and when the D button is pressed, infrared night vision recording starts.

* For detailed explanation of operation, it is written in the attached Japanese manual.

【About reproduction】

We recommend that you use the card reader of the SD card to directly read and play the video file.

You can use it as a U disk if you connect to a PC without being unable to do so.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

Date setting:

Method: Connect to the PC with a USB cable and open the "time" file with "Device and Drive", set the time in the document as "2016.10.10 00: 00: 00" like this,

Please complete the set and start the camera.

Switch off:

Long press the A off button on the remote control in the mode of (recording, moving object detection) function, (If the ON / OFF button on the side of the main unit turned directly to the OFF direction, the recorded file is not saved).

When the lamp turns off, the switch turns off, the recorded file is already saved.

If you do not intend to use it for a long time, please turn the switch button on the main unit side to OFF.

Record while charging

: If you connect 5V USB power supply from the outside to this device, you can set the recording mode and movement probing mode, even if the memory card becomes full Overwrite deleted from old file, can overwrite recording, can overwrite recording, save file

Please be careful.

accessories

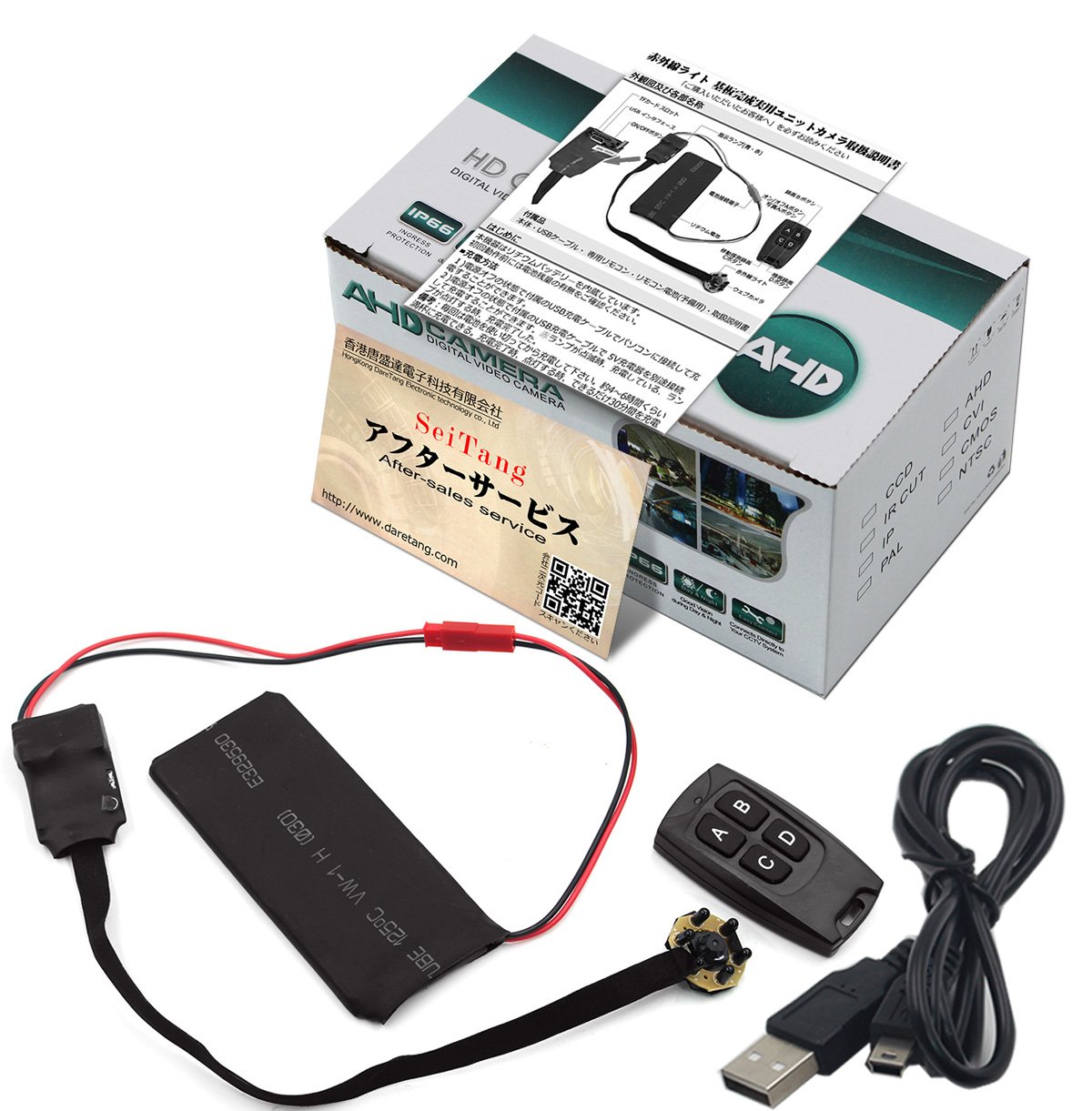

Main body · USB cable · Dedicated remote control · Remote control battery (for spare) · Japanese instruction manual, after service card,

please note

This product is HD 1080P, the consumable current of the product is large, and when it is used it is a normal phenomenon when it becomes a state of heat generation.

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting · Still picture shooting · Moving object detection function · Infrared light night vision function · Repeat recording function · External power source compliance · Automatic surveillance system · High sound quality microphone · Date setting function.
• 【High Resolution】 Capture clearer details in detail, realize high definition FullHD 1080P image quality.
• Movie resolution is "1920 × 1080pix", achieving overwhelming high image quality / high resolution shooting compared with the conventional model.
• [Motion Detection Recording] Automatically start and stop recording in response to surrounding movement, Reduce wasteful recording by motion detection recording, it is also ideal for crime prevention measures at home / office.
• 【Easy operation at long distance】 From the dedicated remote control operation, you can operate the main unit within 10 meters!
• Also equipped with a motion detection function that automatically starts and stops recording in response to surrounding movement.

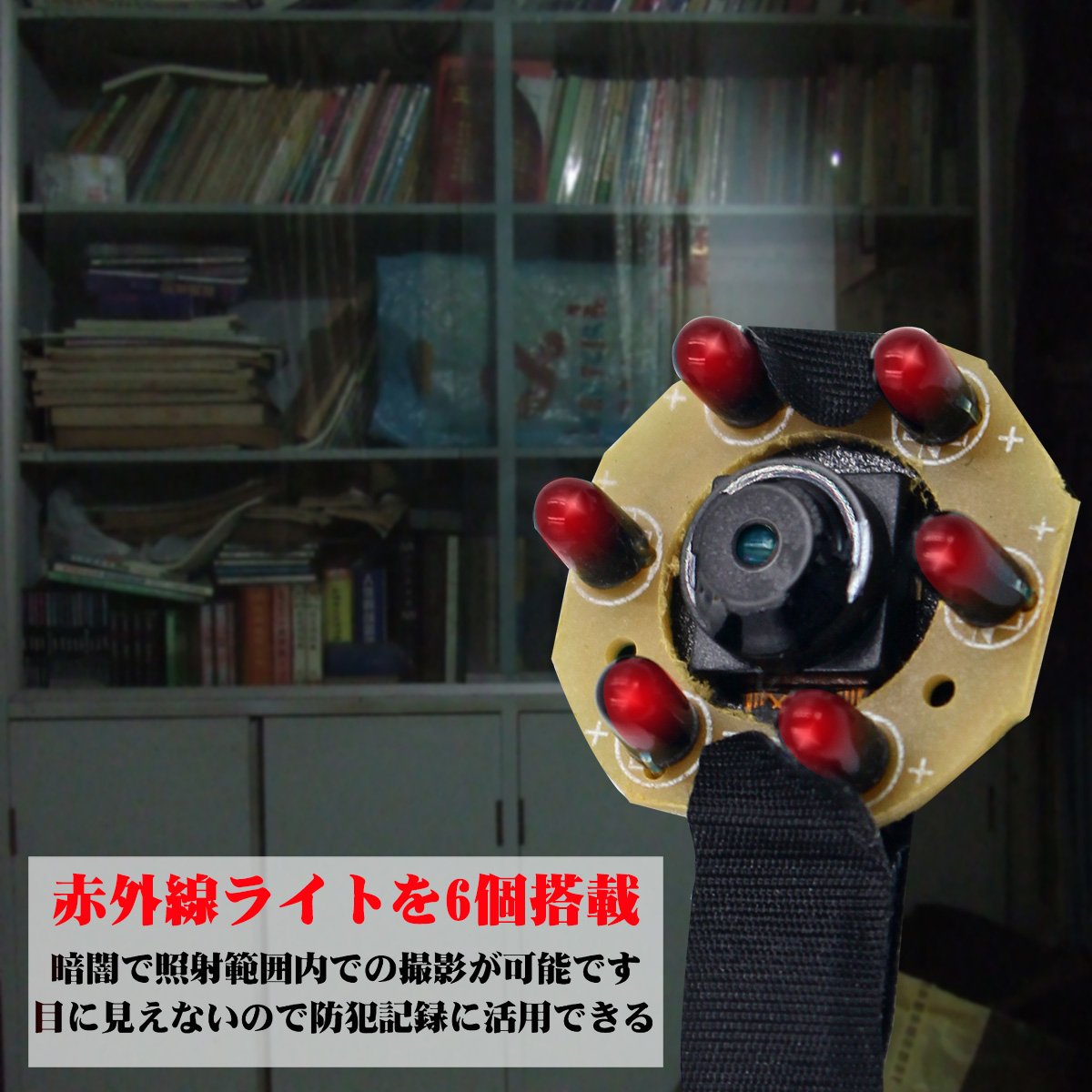

• 【Night vision shooting function】 With invisible type infrared light shooting with confidence in the dark, lighting the infrared light, shooting in the irradiation range is possible even in the dark, because the six lights are invisible, they can be used for crime prevention recording
• I will.
• 【Long Time Recording】 Long time recording with external power supply + repeat recording function, completed board Substrate unit RC, stuffed animal, figurine, paper bag, foliage plants, office equipment etc. Evidence collection is possible without detective.

Product information:

Shipping Weight: 140 g

Package Dimensions: 6.40 x 7.80 x 12.60 cm
