[PHYSIOLAB] PSL-IEOG2 / SMALL 2CH EOG SENSOR MODULE WITH EOG & EOG DIRECTION EVENT OUTPUT / ISOLATION SAFETY / AVAILABLE IN ARDUINO

FEATURES

  • PSL-iEOG2 is a small 2-channel EOG module that outputs EOG and EOG Direction Event signals.

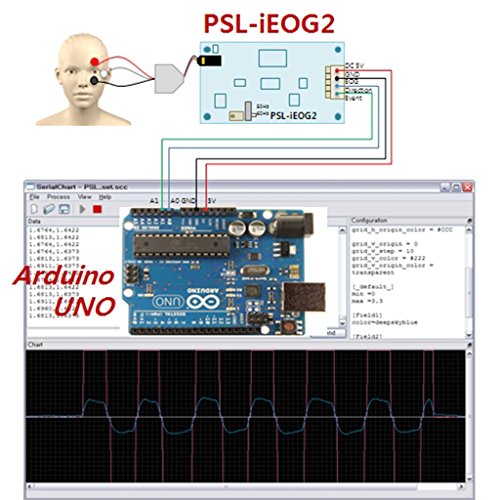

  • DC 5V input power can be used the power of the Arduino board without any other power supply which is very convenient. Amplification is a 750 V/V. The notch filter can be adjusted to 50Hz or 60Hz by the notch filter selectable switch. The module outputs a high-quality EOG signal by applying the low noise and optimal filter design.

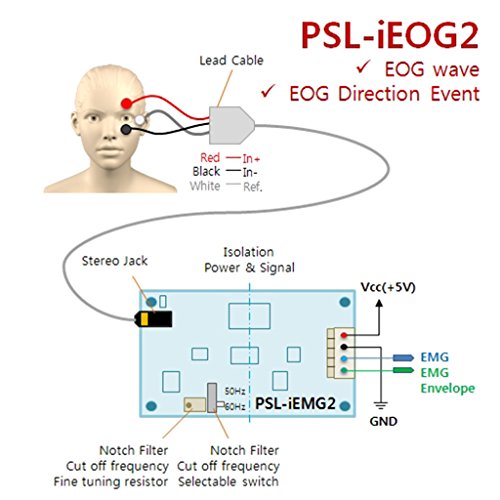

  • PSL-iEOG2 guarantees electrical safety through isolation power and signal during measuring. For the high quality signal input the premium lead cable with shield is provided, and the cable adopts a stereo jack to connect simply.

SPECIFICATION

Model No.LYSB0186P726U-SPRTSEQIP
Item Dimension11.18 x 6.60 x 11.43 Cm
Package Weight0.11 ~ 0.14 Kg
Product GroupHealth and Beauty
AvailabilityAvailable (Usually ships in 4-8 business days)

DESCRIPTION

About the Product
- Analog EOG 2-channel amplifier module (Ch.1 EOG, Ch.2 EOG Direction Event)
- DC 5V power input, Current consumption 50mA or less
- Isolation power and signal
- Amplification 750V/V
- Selectable 50Hz or 60Hz by the notch filter switch
- Optimized HPF and LPF design for EOG
- Output signal 0~3.3V(center 1.65V)
- Size 56mm X 35mm
- Lead cable with shield and stereo jack

Specification
- Output signal : EOG, EOG Direction Event(2 channel)
- Output signal range : 0~3.3V(Center 1.65V)
- Amplification : 750V/V(=±2%)
- CMRR : 60dB
- Filter Set : Notch(Adjustable 50Hz or 60Hz), HPF(0.05Hz), LPF(10Hz)
- Input power : DC 4.5V~5.5V
- Power consumption : = 50mA
- Isolation : Power & Signal
- Insulation voltage : 1kV DC(5sec.)
- Size : 56?X35? (PCB)
- Lead cable : 3 wire shielded cable(1,100?, stereo jack)
- Contents : PSL-iEOG2(1EA), Lead cable(1EA), Ouput cable(1EA), Electrode(6EA), Manual(1EA)
