Product Description

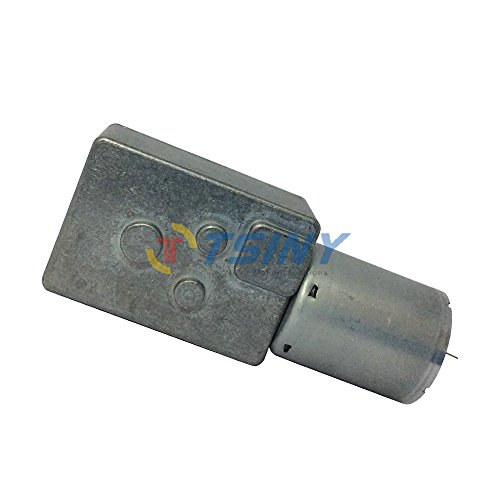

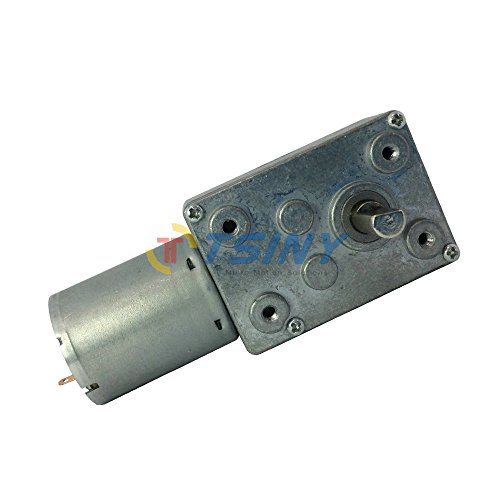

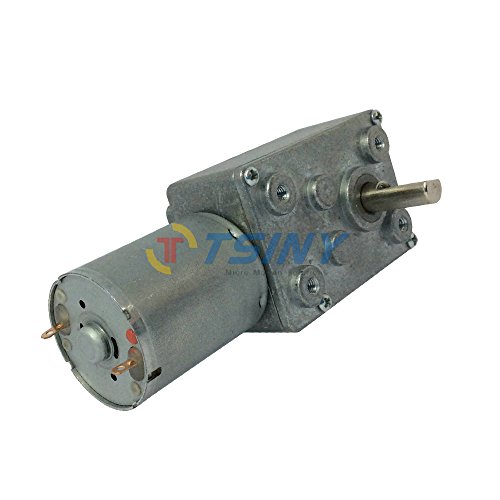

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics: 1 With self-locking, the output shaft can't rotation when switch off, that is self-locking. 2 Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size. Technical data: Rated voltage: DC12V No-load speed: 110r/min Rated torque: 0.6kg.cm No-load Current: 0.04A Reduction ratio:1/64 Protection class: IP54 Low noise: db<45 (A) Certification: CE

Feature

Type:DC Worm Gear Motor
Rated voltage:12V; No-Load Speed:110 RPM; Rated Torque:0.6kg.cm

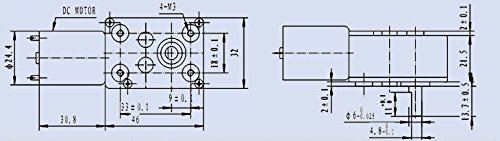

Gear Motor Body Dimensions: 3x1.25x1.06inches(L*W*H)；Out Shaft Dimensions:0.53*0.23inches(L*D) with 0.047*0.43inches flat cut off
Application: bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine. Used in electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner.
Direction：CW&CCW
Brand : DC Worm Gear Motor
Item model num : TS-32GZ370
MPN(PartNumber) : TS-32GZ370
EAN : 0701056198290
