Product Description

Keenstone 100W Minimum Size RC Hobby Battery Balance Charger


The Keenstone charger can be used to power other DC devices such as chargers, lathes, lights, etc. It puts out a whopping 100W of power! Simply plug the charger into the wall and use the DC port on the right side of the charger to power your device.


Lithium Battery Meter: Check the voltage of a lithium battery's cells when plugged into the balance port. The screen will provide a read out of each cell's voltage, the total pack voltage, as well as the highest and lowest cells.

Specification

Item Name: UP100AC Plus Balance Charger

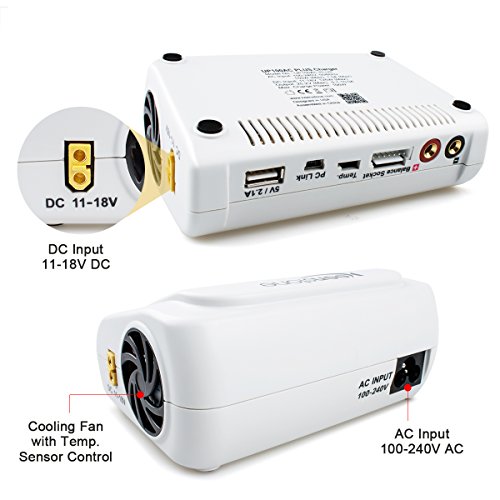

Input voltage: AC 100~240V, DC 11.0-18.0V
Charge power: Max.100W
Discharge power: Max.10W
Charge current: 0.1-10.0A
Discharge current: 0.1-5.0A
LiIo/LiPo/LiFe/LiHv cell count: 1~6 series
NiCd/NiMH battery cell count: 1 - 15cells
Pb battery voltage: 2V-20V (1-10cells)
Weight: 0.44KG
Dimension: 135x95x61mm
Convenience: The charger is quite compact with only
135 x 95 x 61mm, 0.44kg.
So it can be stored in your pit bag or box quite easily! The charger also features Li-Po balance charge, Li-Po fast charge, Li-Po storage, and Li-Po discharge modes.
Battery Memory:

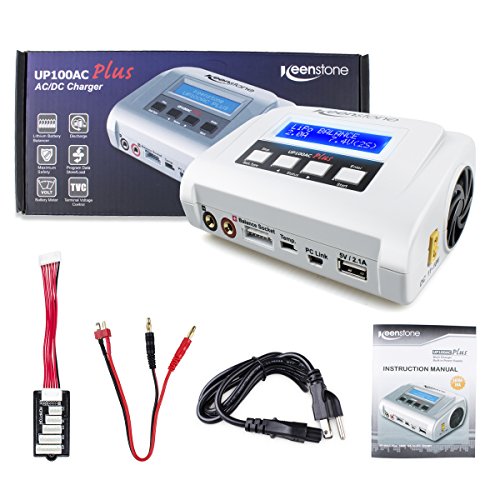

Package Including

1 * keenstone UP100AC plus charger
1 * AC power cord
1 * Dean cable
1 * EH adapter parallel board

Feature

High-power and high-performance circuit - employs a circuit that has maximum output power of 100W. As a result, the smart charger can charge or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium Lipo batteries with maximum current of 10A
Individual voltage balancer for Lithium batteries inside - Built into the smart charger is an individual-cell-voltage balancer. No external balancer is needed when charging Lithium batteries (Li-Ion/LiPo/LiFe) for balance charging.
Balance individual cells on discharge - The smart charger also can monitor and balance individual cells of the Lithium battery pack during the discharge process, as well as the charge process. If the voltage of any one cell varies abnormally, the process will be stopped with the error message
Can program and store up to 10 different types of battery settings. Then simply load the program to start charging using your stored battery settings

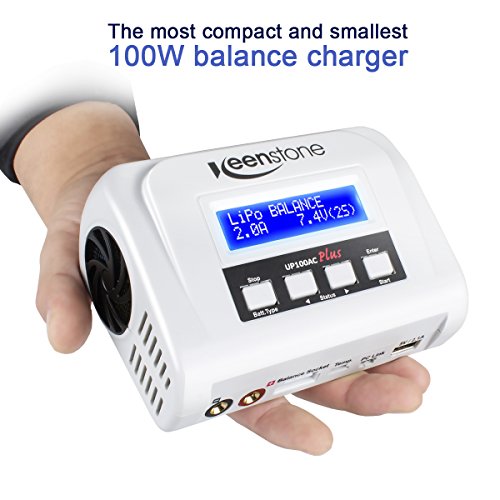

The Minimum size 100W Balance Charger.Only 135 x 95 x 61mm, 0.44kg,small and convenient
Brand : Keenstone
MPN(PartNumber) : keenstone
EAN : 0697691155364
Product Dimensions(LxWxH) : 14x7x10cm ; 680 g
Package Dimensions(LxWxH) : 24x12x8cm ; 680 g
