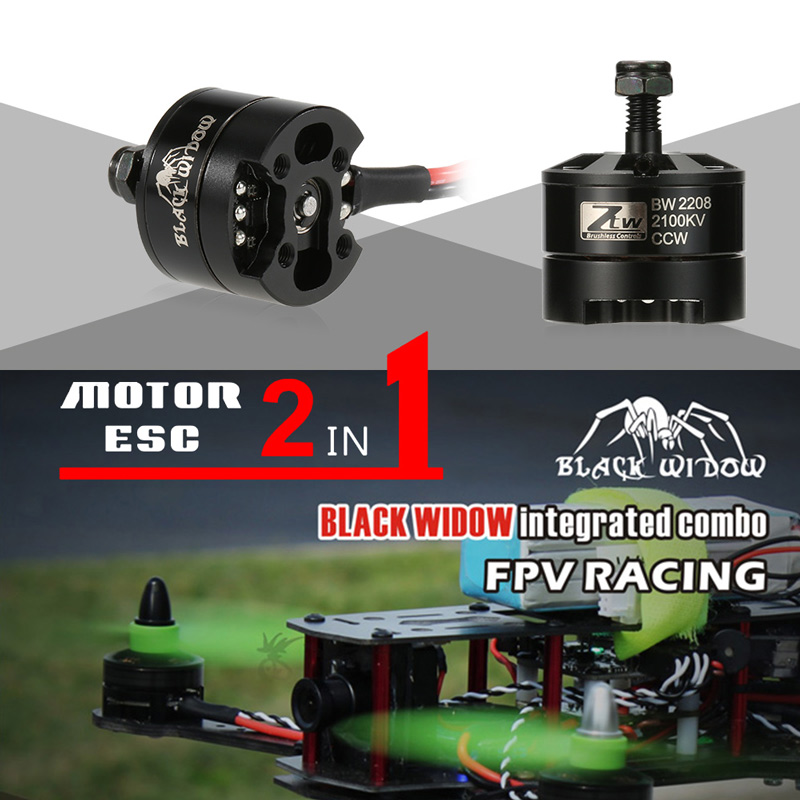

ZTW black widow 2208 2100KV brushless CCW motor, with integrated 18A ESC for saving weight and space on quads. No more hassle and headache with soldering or wiring. With this powerful combo, building a nice and clean quad will no longer a engineer skill. We believe this is a perfect match to your need on FPV racing and entertainment.
.jpg)
.jpg)
.jpg)
.jpg)

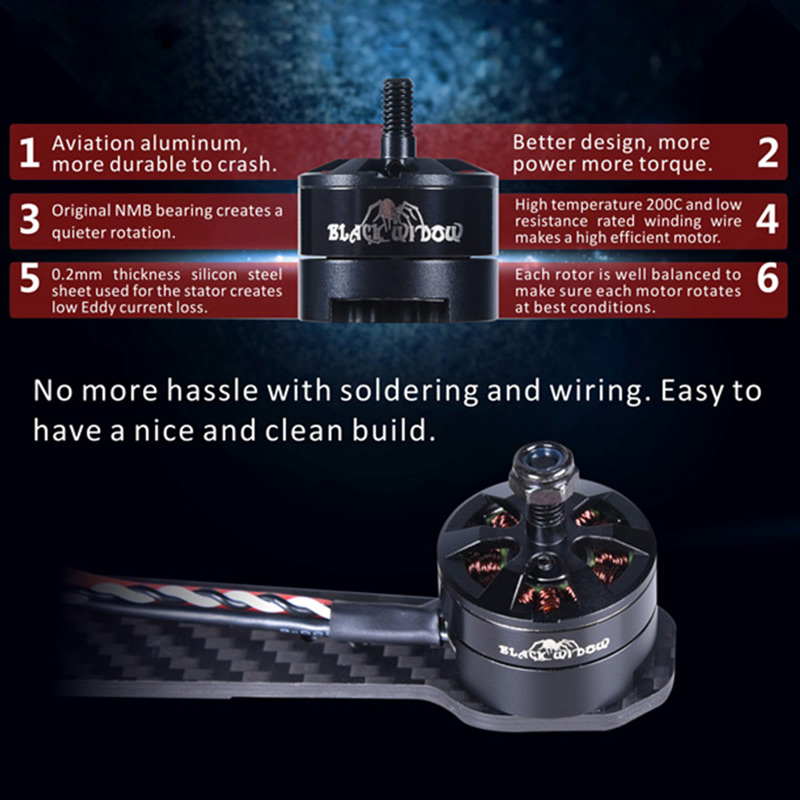

Features:
Low internal resistance.
Fast and instant response.
Patented balance techniques.
High-torque and high-efficiency.
2 in 1 motor electric speed control (ESC).
2208 2100KV CCW motor with integrated 18A ESC.
High purity copper windings maximizes efficiency.
Precision engineered for maximum energy conversion.
Suit for QAV250 FPV Racing Drone Quadcopter.

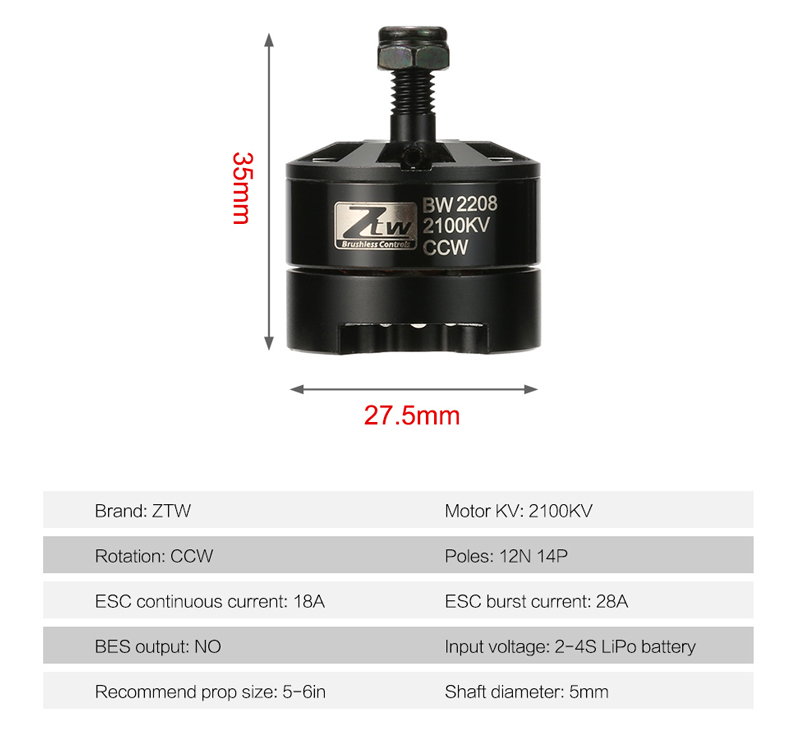

Specifications:
Brand: ZTW
Motor KV: 2100KV
Rotation: CCW
Poles: 12N 14P
Resistance: 0.0403Ω
Max watts: 220W
Stator diameter: 22mm
Stator thickness: 8mm
Rotor diameter: 27.5mm
Shaft diameter: 5mm
ESC continuous current: 18A
ESC burst current: 28A
BES output: NO
Input voltage: 2-4S LiPo battery
Recommend prop size: 5-6in
Programmable: Yes
RX wire length: About 180mm
Weight: 43g
There may be some deviation due to manual measurement.
Package Information:
Package size: 7.4 * 5.8 * 4.1cm / 2.9 * 2.3 * 1.6in
Package weight: 68g / 2.4oz
Gift box package

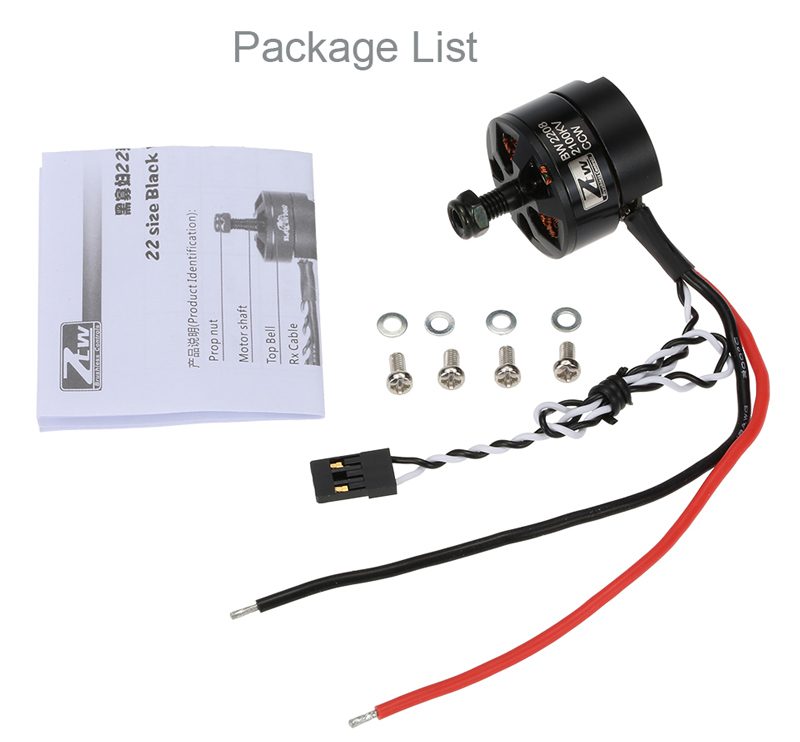

Package List:
1 * ZTW 2208 2100KV Brushless CCW Motor with Integrated 18A ESC
1 * English manual
1 * Tool Set
