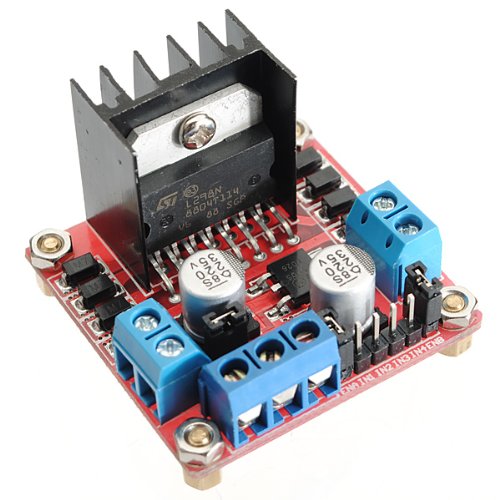

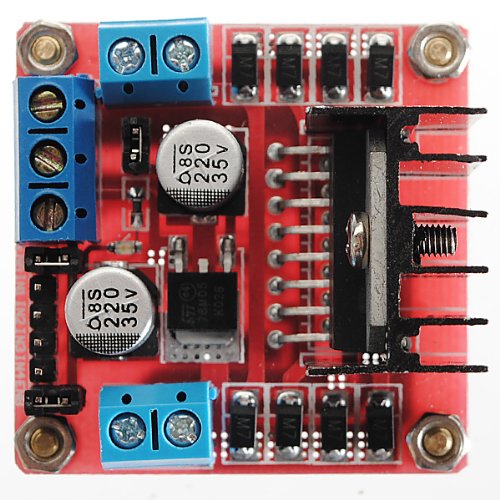

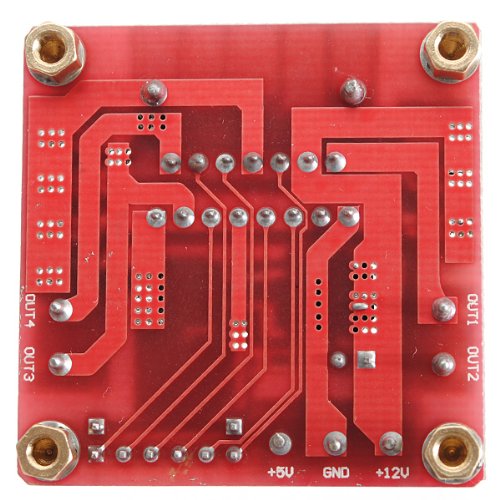

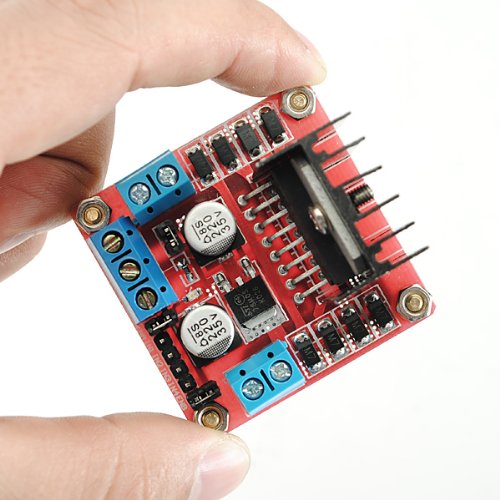

(10034-u) L298N DUAL H BRIDGE STEPPER MOTOR DRIVER BOARD FOR ARDUINO (USA)

L298N DUAL H BRIDGE STEPPER MOTOR DRIVER BOARD FOR ARDUINO

Ship from United States of America

This item is sent to the United States and Canada

Product size :

Weight : 1.36 KG

ASIN : B01DKK9GXS

Model No : BMN

Description:
Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Storage temperature: -20 to +135
Max power: 25W
Weight: 30g
Size: 43 x 43 x 27mm
Note:
This module has a built-in 5v power supply， when the driving voltage is 7v-35v， this supply is suitable for power supply， DO NOT input voltage to +5v supply interface， however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN$ control OUT3 OUT4

Note: Package is not included the screws.

Package included:
1 x 236 L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module arduino
