Item Descriptions:

Color:

White

step 1:

First turn off the power.

Remove the screws on both sides of the main unit's bottom Lightning connector.

A dedicated driver is required because of the special shaped screw called penta lobe (star).

Step 2:

Pull the suction cup to the front side of the front panel and pull it slowly to open the front panel. If the panel is tightly fitted, as shown in the picture on the right, at the stage where a little clearance is formed between the panel and the case,

You can open it easily by plugging in a spatger or the like.

Notes on opening the main unit:

Pay attention from the ear speaker side because it may cut the connection cable such as the internal liquid crystal screen if pulled from the ear speaker side.

Please open the front panel at 90 ° so as not to cut the connecting cable such as the internal liquid crystal screen.

Step 3:

Remove the liquid crystal screen or the fixing plate of the cable connecting the digitizer and the logic board.

Remove the screw holding the fixing plate, remove the fixing plate when the screw comes off.

Caution:

Since the screw here is different in size depending on the location, be sure to write down the position of the screw.

(Length 1.7 mm / head diameter 2.0 mm)

(Length 3.1 mm / head diameter 2.0 mm)

(Length 1.3 mm / head diameter 1.9 mm)

Step 4:

Remove the LCD screen, digitizer, front camera, etc. and the cables connecting the logic board in order, remove it by raising the connector part with a plastic spatger or the like.

When the cable is disconnected at the end, the front panel and the bottom case side are separated.

please note:

When installing the cable in the position of ①, do not put too much force;

Please be sure to note the original position of the screw because the size of the red circle part varies depending on the place; (Note: If you use a long screw at the short screw part, the circuit may short-circuit

Let's be careful (since there is a circuit under the screw hole);

Do not press the inside of the red frame of the screen on the right, either when removing the LCD panel or mounting it, as it is easy to break, please proceed carefully.

Features:

• Please enter model number Confirm this is compatible:

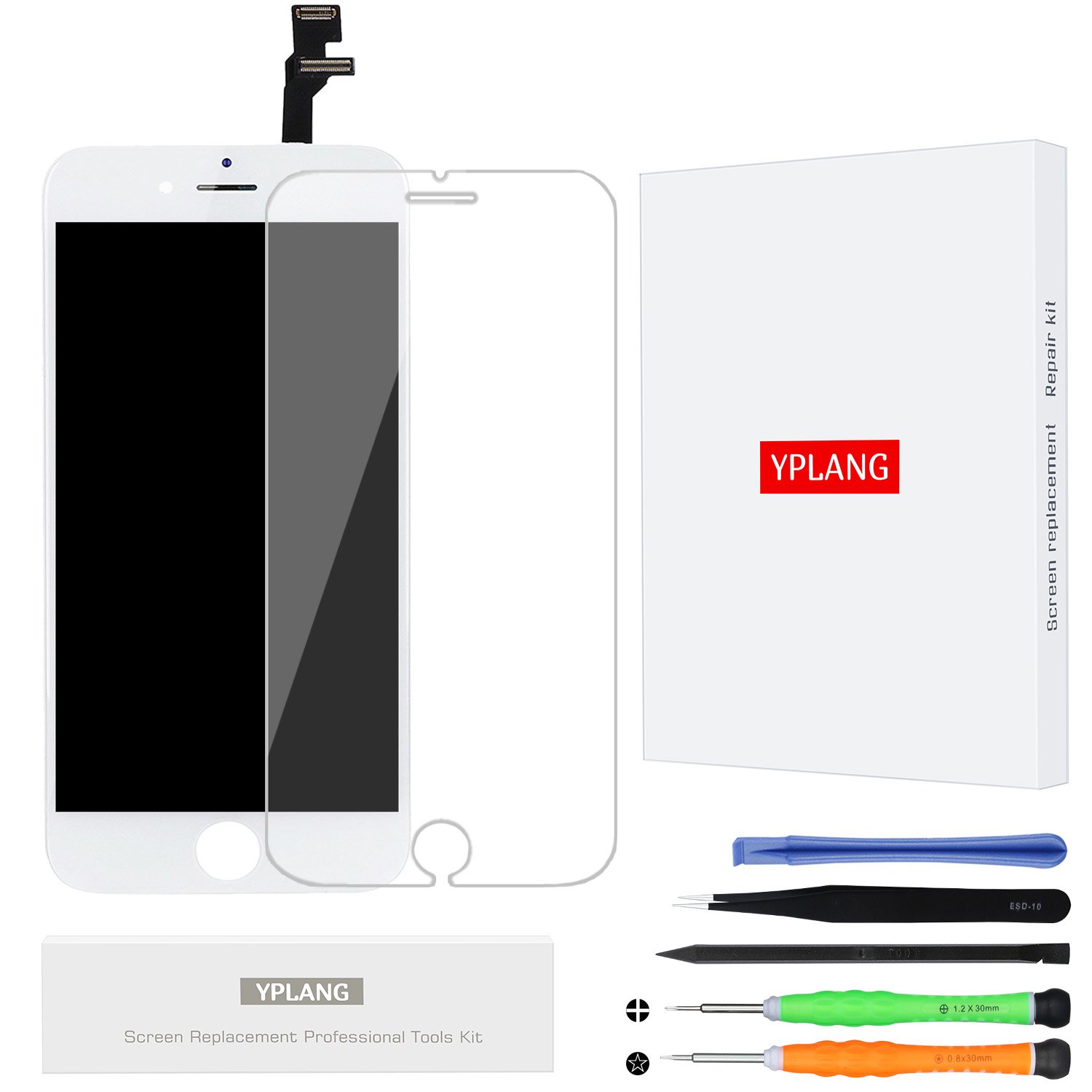

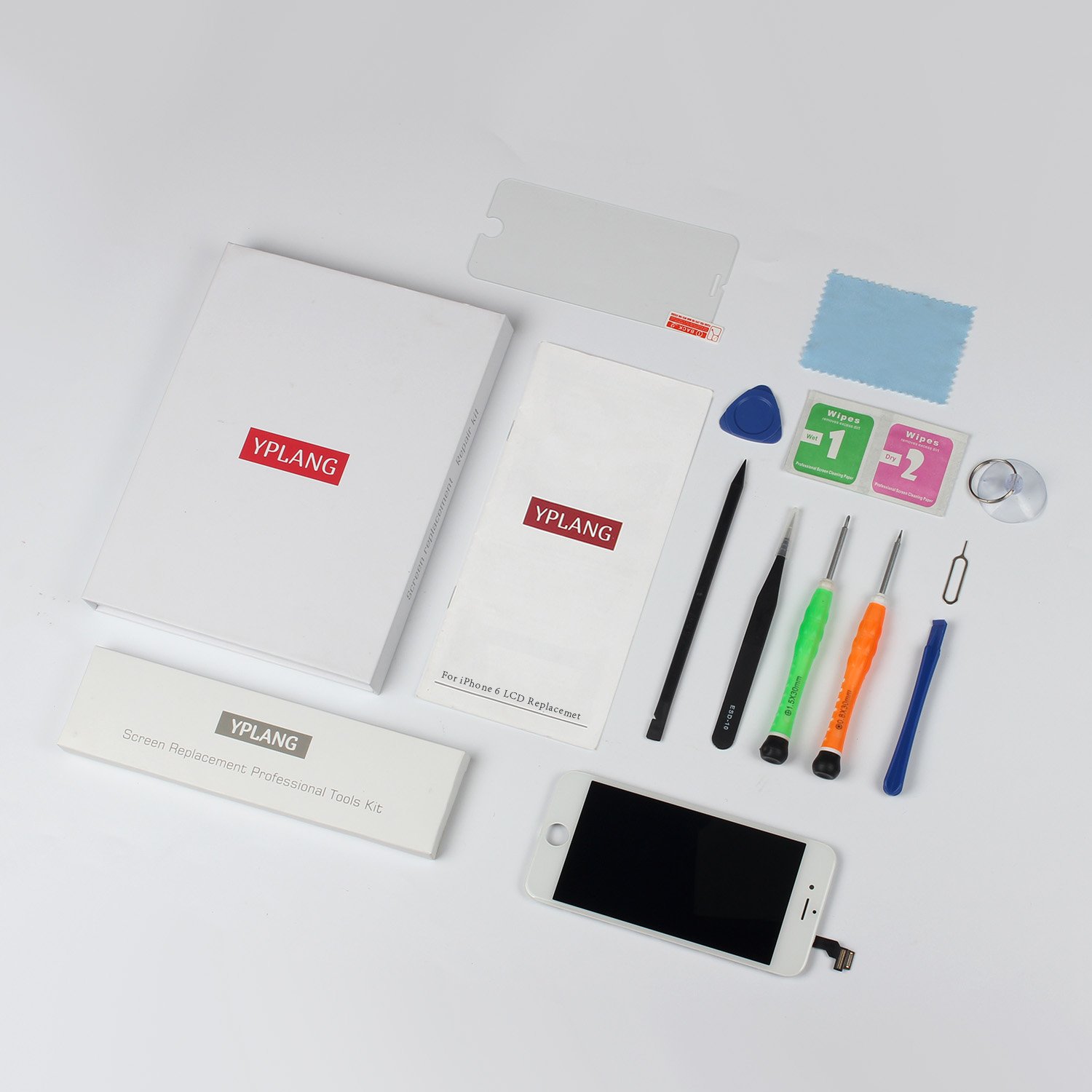

• 【Applicable models】 LCD front panel for iPhone 6, Tool kit for repair replacement is included.

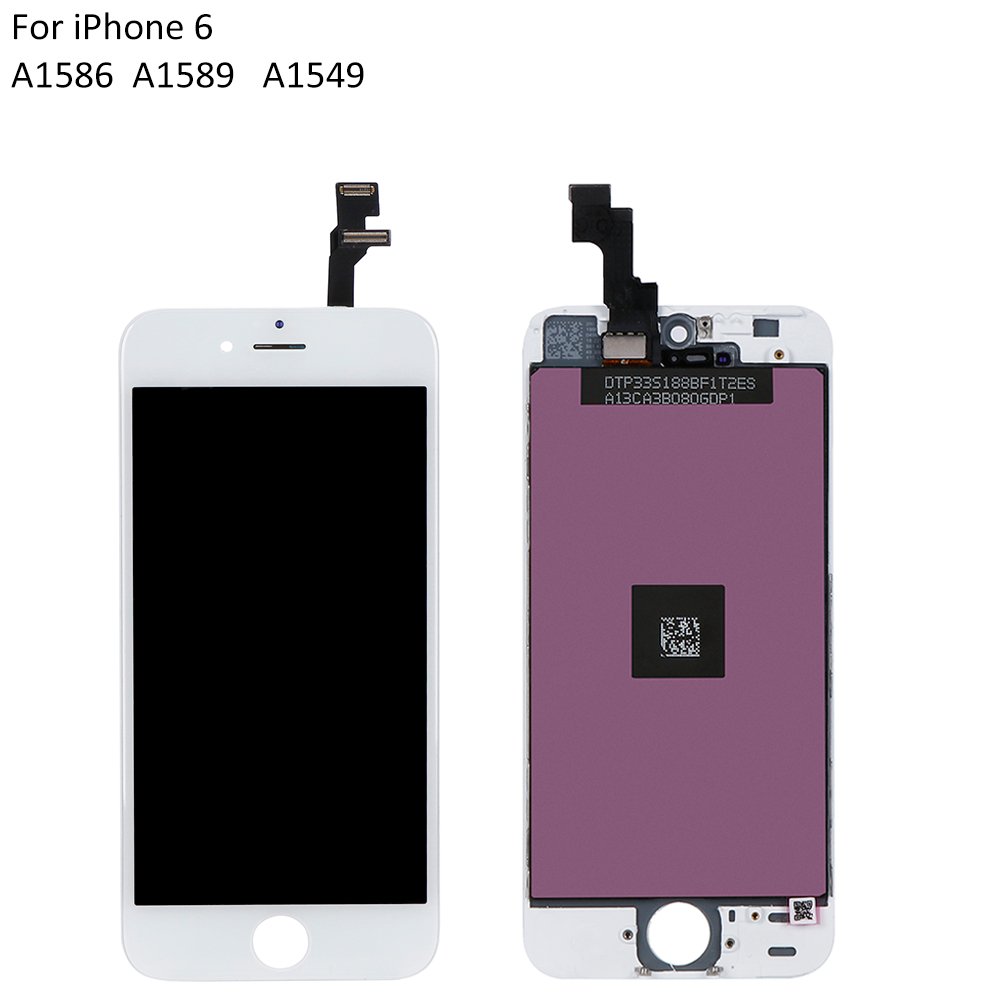

• Applicable model number: A1549, A1586, A1589
• Repair troubles such as display trouble, LCD screen cracking, broken pixels, troubles of coloring, damage of the screen, etc.
• Japanese instructions for installation and replacement are included, installation requires some knowledge and skill, so if you can not install it, you better ask experts or youtube.
• When installing it, it becomes the cause of breakdown (the screen is dark, line entering, touch defective, crank-in key failure, etc.) due to deformation of the frame of the motherboard, malfunction of the motherboard, poor contact of various cables at installation, so be sure to be careful
• Please, if you have any questions or concerns, please contact us anytime.
• Since all the liquid crystal panels are used normally, all items are inspected before shipping, so you can purchase with confidence.

Product information:

Shipping Weight: 199 g

Package Dimensions: 2.01 x 15.01 x 19.61 cm
