-. Binding : Kitchen
-. Brand : C.J. SHOP
-. Feature : Function 1: Timing Pick: After power relay delay time T1, T1 in 0 seconds adjustable between -270 hours, give CH1 connector is a high pulse signal(high duration is greater than or equal 20ms, hereinafter the same), repeat the above functions / Function 2: Timed disconnect: On power relay, time relay off delay time T1, T1 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, repeat the above functions / Function 3: Loop Timing Mode 1: After power on, to not pull the relay, the delay time T1 after arrival relay; pull the relay off time T2 after arrival, and then repeat the above state, the delay time T1 and T2 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, you can resume these functions / Function 4: Loop Timing Mode 2: After power, the relay immediately pull, delay time T1 after arrival relay off; off time T2 arrives relay, and then repeat the above state, the delay time T1 and T2 in 0 seconds - adjustable between 270 hours and give CH1 connector is a high pulse signal, these functions can be re-started / Function 5: Latching relay mode: CH1 connector to relay a high level pulse signal, the relay, to give a high level pulse signal relay disconnected
-. Label : C.J. SHOP
-. Manufacturer : C.J. SHOP
-. Model : BG-US-918800-P
-. MPN : BG-US-918800-P
-. PartNumber : BG-US-918800-P
-. ProductGroup : Home
-. ProductTypeName : HOME
-. Publisher : C.J. SHOP
-. Studio : C.J. SHOP

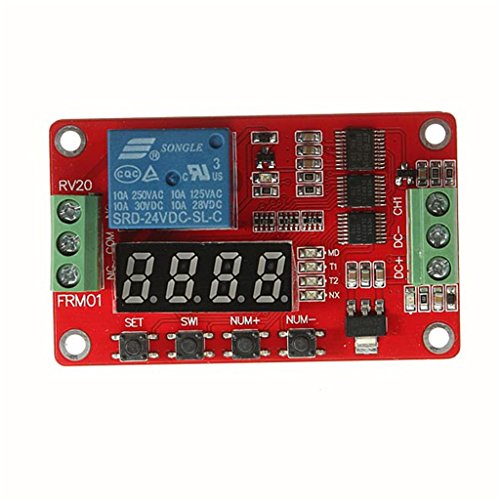

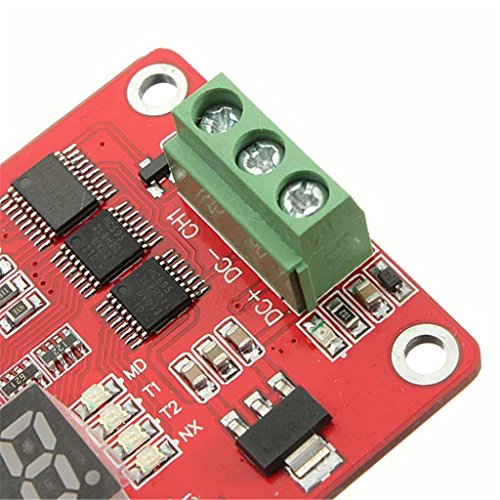

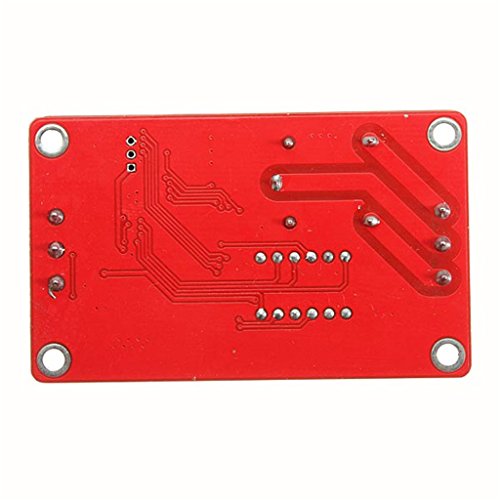

-. Title : C.J. SHOP Multifunction Self-lock Relay Cycle Timer Module PLC Automation Delay FRM01/FRM02/FRM03/FRM04


DIMENSION INFOMATION
Product Dimensions : 8.61(Width) x 15.01(Length) x 2.49(Height) cm
Shipping Weight : 0.4 pounds
