- Binding : Electronics

- Brand : AGPtEK

- EAN : 0700697095753

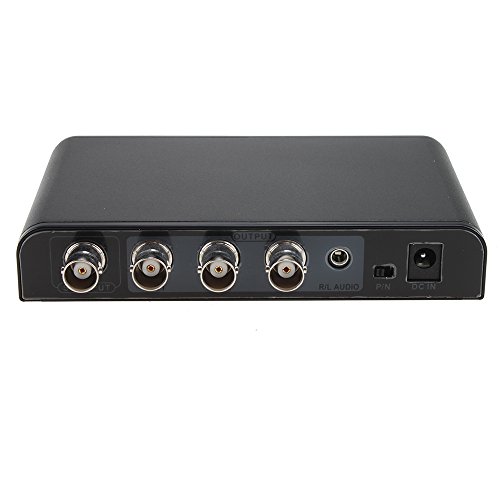

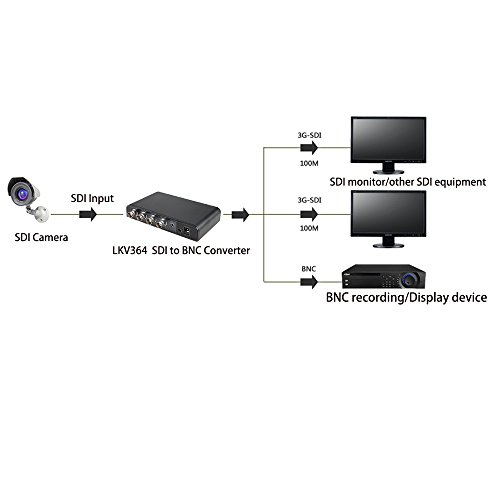

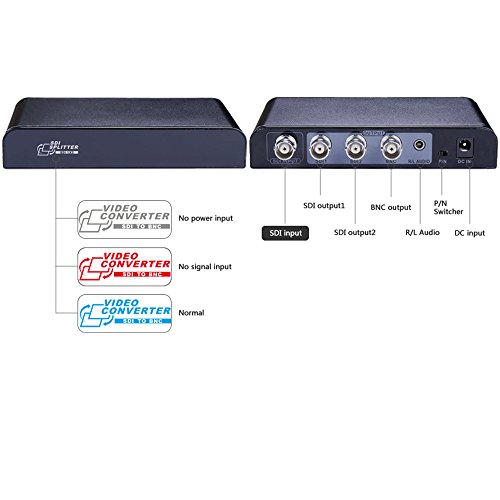

- Feature : This LKV364 converts SDI signal to analog composite video signal and supports both PAL/NTSC output. It can separate audio from SDI to allow connection with earphones or other sound devices and achieve to output image and sound at the same time perfectly. / Besides, it has SDI splitter function(1SDI input and 2 simultaneous SDI outputs.)and caters for the needs in SDI broadcast room, no-linear editing field.CCTV security and training showroom etc. / SDI splitter function, it supports SD-SDI(270Mbps) HD-SDI(1.485Gbps) and 3G-SDI(2.97Gbps) distributes to 2 simultaneous SDI outputs. / SDI repeater functio, it provides equalized and re-clocked transmission and supports signal input and output distances of up to 400 meters for SD-SDI signal, 200 meters for HD-SDI signal and 100 meters for 3G-SDI signal. / SDI converter function, the BNC port outputs composite video(CVBS) and R/L audio port outputs audio signal at the same time. Select PAL/NTSC system by P/N switch.

- Label : AGPtek

- Manufacturer : AGPtek

- Model : PC000124-MB1

- MPN : PC000124-MB1

- PackageQuantity : 1

- PartNumber : PC000124-MB1

- ProductGroup : CE

- ProductTypeName : CE_ACCESSORY

- Publisher : AGPtek

- Studio : AGPtek

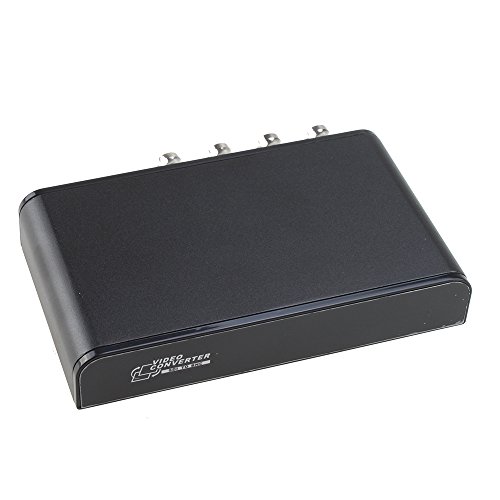

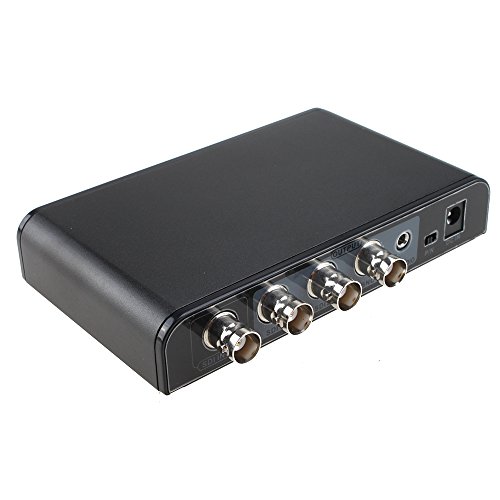

- Title : AGPtek® SDI to BNC, SDI Video Converter Switcher Adapter Supporting SD-SDI HD-SDI 3G-SDI, CVBS output signal: PAL, NTSC.

- UPC : 700697095753
