Product Description

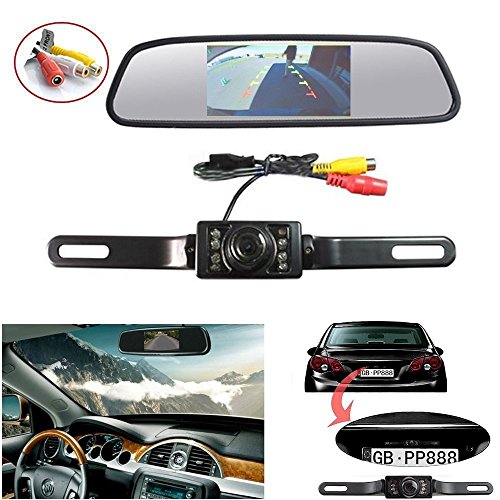

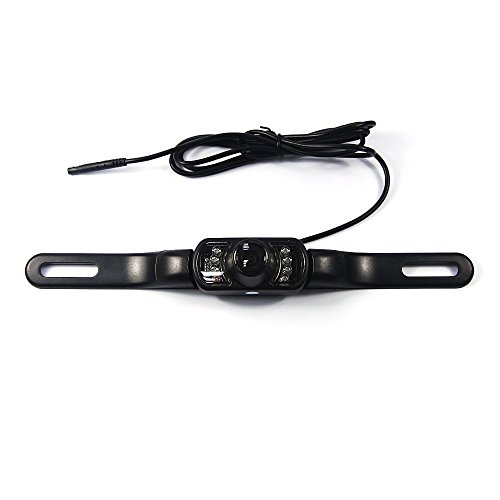

1. Auto switching when reversing Under power-on condition. When reverse gear is on, the system automatically switches from DVD/VCD video to backup camera video. And when parking is finished, it will switch back automatically, which can ensure parking safty. 2. AV signal auto detecting power on/off Under power-off condition. When reverse gear is on, the system automatically starts to search for the camera signal and display backup video. When parking is finished, it will switch off automatically. Specification: Show foot size: 4.3 inches. Best for the safe use of Rear view; Displays: TFT-LCD. high-definition screen, make the image clearer, more vivid colors; Resolution: 480 (H) × 272 (V); Power: ≤ 2W. Ultra-low power consumption, to prevent over heat. Video Input: AV1/AV2 video input, AV1 VCD / DVD video output signal (system default), AV2 connection reversing camera (reversing automatically switch to); Signal format: PAL / NTSC / AUTO. Compatible with all signal formats. Contrast: 300:1. A clear contrast Rated Voltage: DC 12V. Camera features: Image sensor: PC1030 (Distance reference marking display) Resolution:420 TV line Lens angle:3.6mm(92deg)/2.8mm(120deg) S/N Radio: better than 48db Video output: RCA connector, 1.0vp-p,75ohm Power: 12V DC(+/-10%) Waterproof grade: IP68 Effective Pixels:628x586pixles/PAL,510X496pixels/NTSCFeature
4.3-inch TFT LCD Screen;170-degree Wide Angle,the LCD display pixel is 480x272,it is normal Image almost not visible during daytime under the sun,because the LCD screen brightness limited,but for this screen I provided is 500 lumens brightness ,the image is very clear and high resolution in the sunny daytime,good function and works great in the daytime and nighttime!
