Product Description

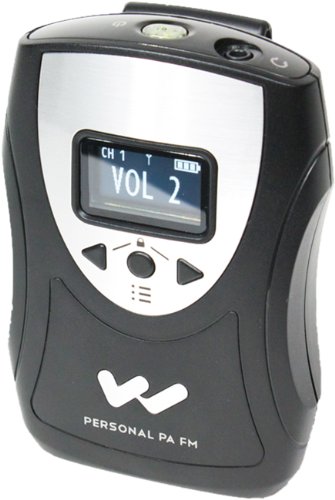

The Williams Sound PPA R38N PPA SelectView FM Receiver is easy on the eyes and convenient to use. The high-res OLED screen presents a quick view of receiver status and immediate access to all user settings.
The highlight on-screen channel selection with easy access to 17 pre-set, wideband frequencies (72-76 MHz). Digitally synthesized for exceptional audio clarity and stability, the ease of the PPA SelectView is apparent with its digital tuning, digital squelch and battery-saving sleep mode. A stereo/mono jack adds compatibility with a variety of mono and stereo earphone/headphone options.
The PPA SelectView is rechargeable when used with NiMH AA batteries (compatible with the Williams Sound CHG 3512 and 3502 multi-bay chargers) -or- Alkaline AA batteries can also be used.

Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable
Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
Battery Life: (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
Channels: 17 Wideband, accessed via menu
Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9
Operating Frequencies: 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
FM Deviation: 75 kHz
De-Emphasis: 75 μS
Display Screen: OLED
Power Indication: Power button, backlit green; Low battery - flashes.
Sensitivity: 2 μV at 12 dB Sinad with squelch defeated
Input Overload: 100 mV
Frequency Response: 200 Hz - 15 kHz, ±3dB
Modulation: FM, /- 75 kHz peak deviation
Signal-to-Noise Ratio: Min 65 dB @ 1.0V
Receive Antenna: Integral with earphone/headphone cord
Audio Output: 35 mW max at 16 Ω
Approvals: FCC, Industry Canada, RoHS, WEEE
