Product Description

Features:?

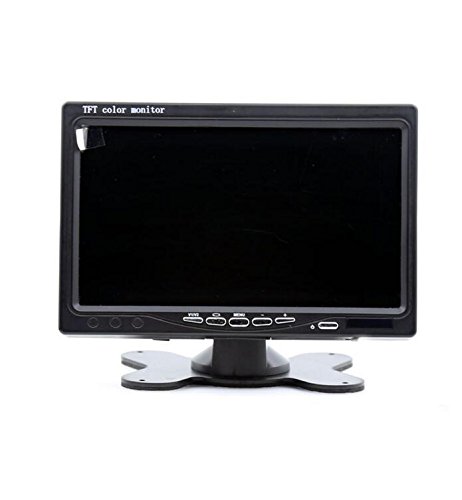

7 Inch TFT LCD monitor with built in Split Function (Single, Dual, Quad Image)
Screen:(16:9)?
Resolution Degree:800(W)xRGBx480(H)?
System:PAL/NTSC?
Power Supply: DC12V?- 24V
Power:About 6W?
Opeartion Temperature:-20~70¡ãC?
Storage Temperature:-20~80¡ãC?
Operation Mode: Remote control+Keystroke;Remote control and keystroke can switch pictures at four directions?
FOUR Images at the same time on a display.?
Four video inputs: AV1, AV2, AV3, AV4. Independence (full screen) display.?
Independant control / setting of AV1, AV2, AV3, AV4 via remote control and panel.Specification:?
Screen size: 7 inch (diagonal length), digital screen?
Type: Brand new panel, high resolution?
Video input: 4 ways AV inputs?
System: PAL & NTSC auto switching?
Resolution: 800R.G.B x480 dots?
Power supply: Power supply: DC 12 V compatible?
Display: High resolutions with quad pictures?
Operating temperature: 0¡ãC~+50¡ãC?
Storage temperature:-20¡ãC~+65¡ãC?
Remote control, OSD menu: Full image,/ 2 images /4 images adjustable?
Automatic switching with trigger?
Suitable for back view/ side cameras?
[16 : 9 ] wide screen display

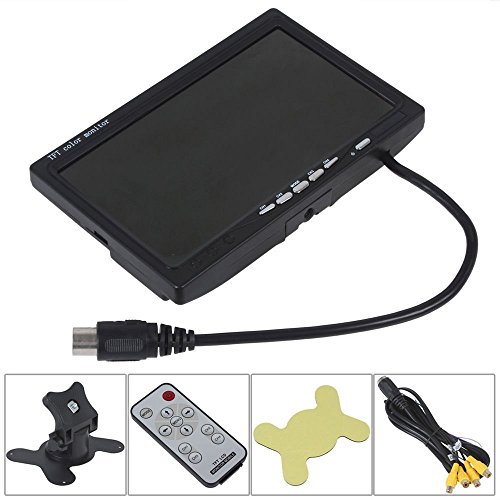

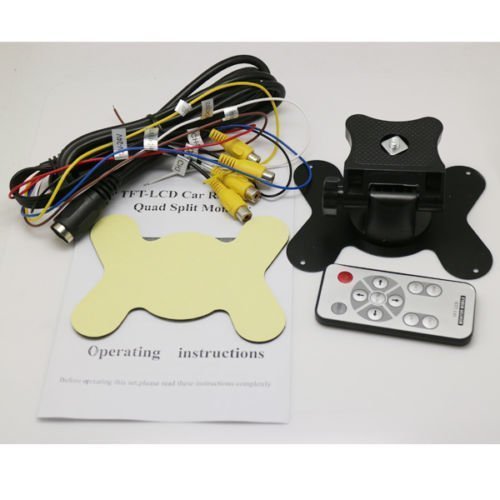

Package included:?
1 X 7" Monitor?
1 X Remote Control?
1 X AV Cable?

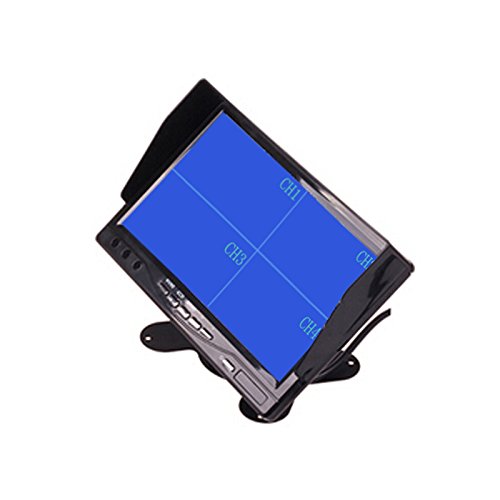

1 X Sun Shade?
1 X Mounting Base and 3M Sticker ?
1 X User Manual?

Feature

12-24V Input HD 7 Inch TFT LCD monitor with built in Single, Dual, Quad Splitted Image Mode
High resolution with 800 x 480 Pixels. Comes with an IR remote controller for a easy operation and Sunshade for Anti-glare
Support rotating the screen and adjust the brightness, contrast, color.

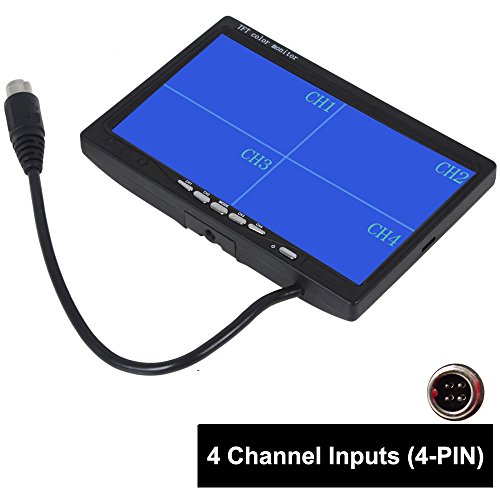

Video input: 4 RCA AV Sockets (16:9 Screen)
Perfect Design for Truck Multi-Camera Surveillance System
Brand : E-KYLIN
MPN(PartNumber) : 7001B-Quad
EAN : 0732130486538
