Item Descriptions:

specification:

Screen size: 5.7 inches IPS

Resolution: 1920 x 1080

Pixel pitch: 0.0657 x 0.0219 mm

Aspect ratio: 16: 9

Brightness: 460 cd / m²

Contrast ratio: 1400: 1

Backlight: LED

Viewing angle: 85 ° / 85 ° (L / R) 85 ° / 85 ° (U / D)

audio

Audio: Stereo headphones

HDMI input / output support format

480i / 576i / 480p / 576p

1080i (60 / 59.94 / 50)

720 p (60 / 59.94 / 50/30/29/25/24 / 23.98)

1080 p (60 / 59.94 / 50/30 / 29.97 / 25/24/24 sF / 23.98 / 23.98 s F)

4 K UHD 3840 × 2160 p (30 / 29.97 / 25/24 / 23.98 Hz), 4096 × 2160 p (24 Hz)

Input voltage: DC 7 to 24 V

Power consumption: ≤ 8 W

Operating temperature: -20 ° C to 55 ° C

Storage temperature: -30 ℃ ~ 65 ℃

Installation way: 1/4 "-20 thread socket

Battery plate F 970 (standard-F 970 plate included); D 28 S / D 54, LP-E 6, U 60 (not included)

Unit size: 148 L x 82 H x 18.63 D (mm)

Unit weight: 280 g / 310 g

Advanced features:

* Brightness histogram

* Peaking Focus Assist (highlights of three color options of red, green, blue are displayed above the focused image)

* False color

* Zebra exposure (1-100 IRE adjustable)

* Check field (red, green, blue, mono)

* Camera mode

* Anamorphic mode (1.3 x, 2.0 x, 2.0 x mag)

* Image flip (H, V, H / V)

* Image Freeze

* Center marker

* Screen markers (80%, 85%, 90%, 93%, 96%, 2.35: 1)

* Ratio markers (4: 3, 13: 9, 14: 9, 15: 9, 16: 9, 1.85: 1, 2.35: 1)

* Color temperature adjustment

* 9 Grid (One image is enlarged and displayed on full screen) (Invalid on 4K input)

* Zoom (4X, 9X, 16X (not valid for 4K input)

* Aspect Ratio (Invalid for 4K input)

* Pixel to pixel (not valid for 4K input)

* All zoom (not valid for 4K input)

* U / D zoom (not valid with 4K input)

* L / R zoom (not valid with 4K input)

Because it is genuine, we offer one year warranty.

You can use it with confidence.

If there are any unknown places, please contact Cinekam's seller via e-mail, and we will resolve the problem as soon as possible.

Cinekam strives to improve quality and service so that we can provide safe and secure products to our customers.

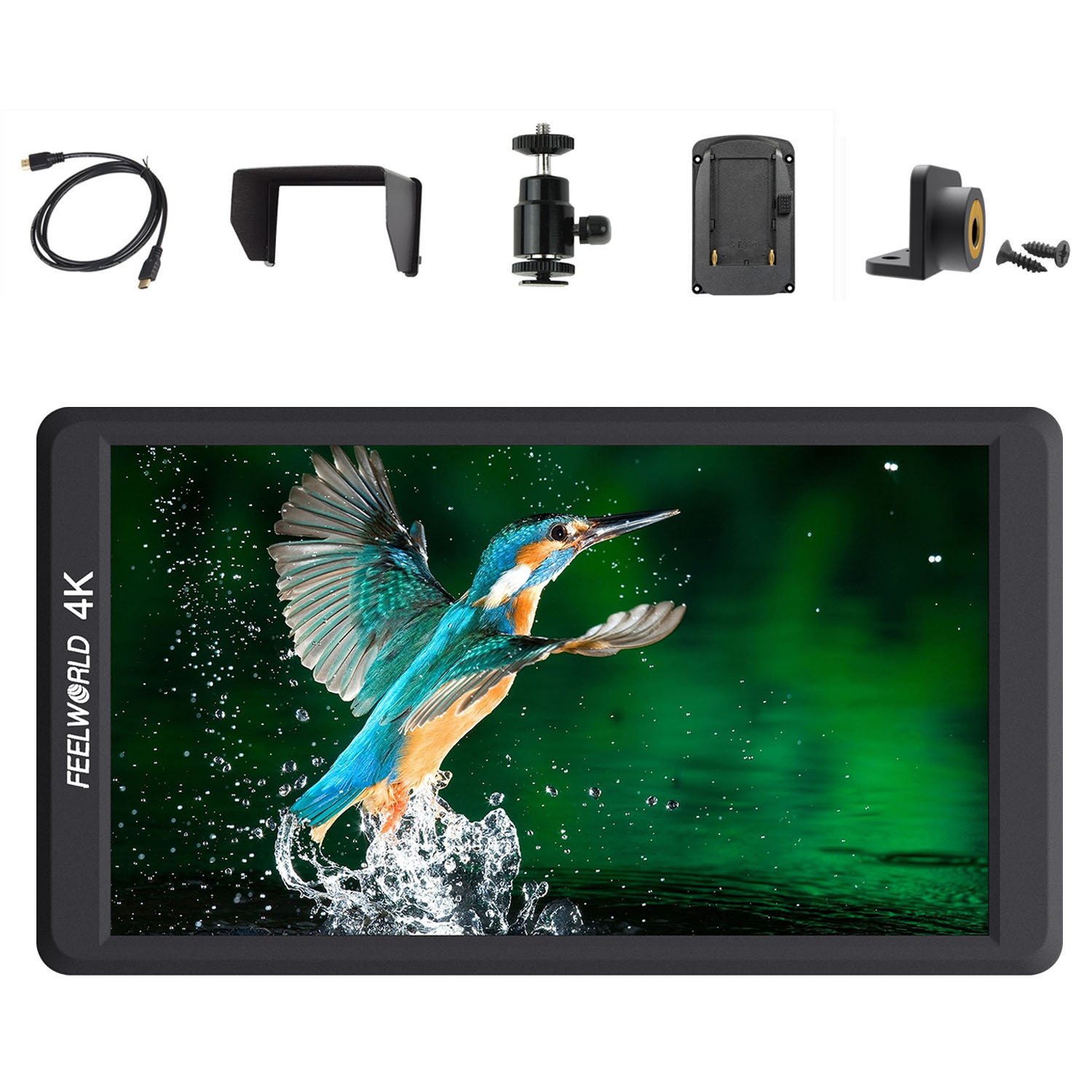

Package contents:

1 x Feelworld F570 monitor

1 x sunshade

1 x Mini HDMI cable

1 x F 970 battery plate

1 x Hot Shoe Mount

1 x 1/4 "screw lock

1 x User Manual (English)

Features:

• Please enter model number Confirm this is compatible:

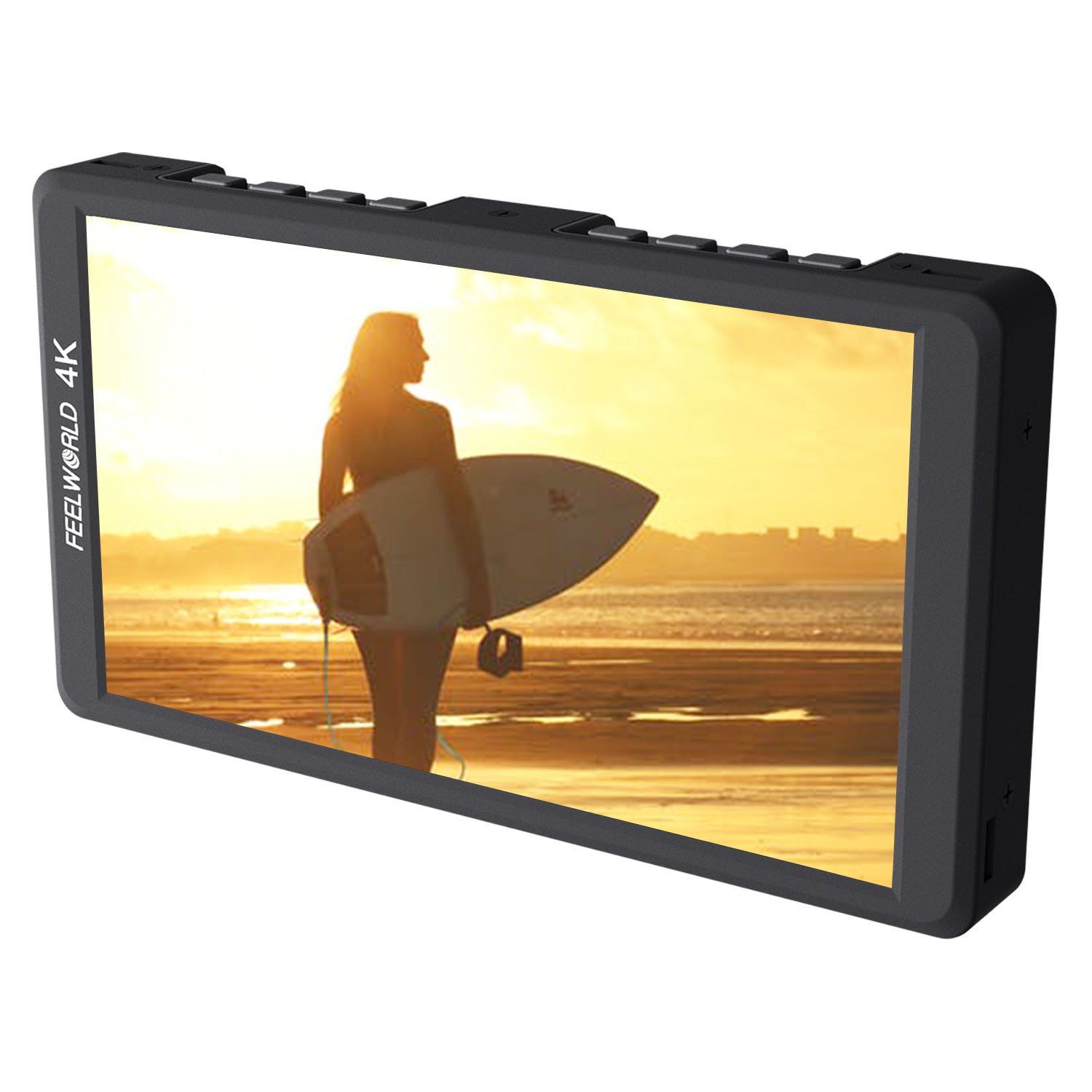

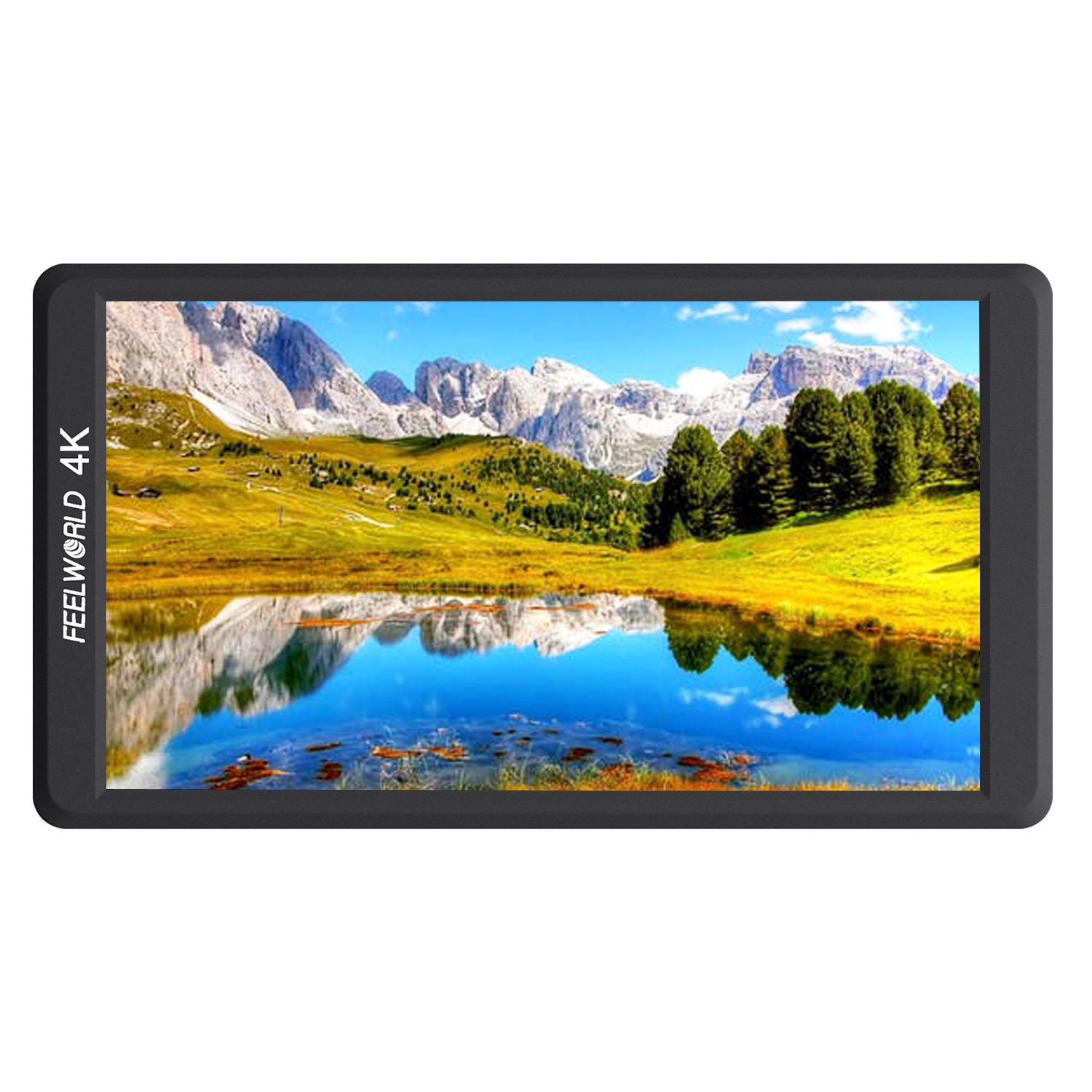

• 【IPS 5.7-inch panel】 FEELWORLD F570 realizes surprising image quality with ultra-thin and lightweight design of 18.6 mm body weight and 280 g weight.
• Resolution of full HD IPS screen 1920 x 1080.
• It brings a better visual experience even outdoors with contrast of 1400: 1, brightness of 450 cd / m 2, strong sunlight.
• 170 ° A wide viewing angle displays clearly visible images even when the user moves.

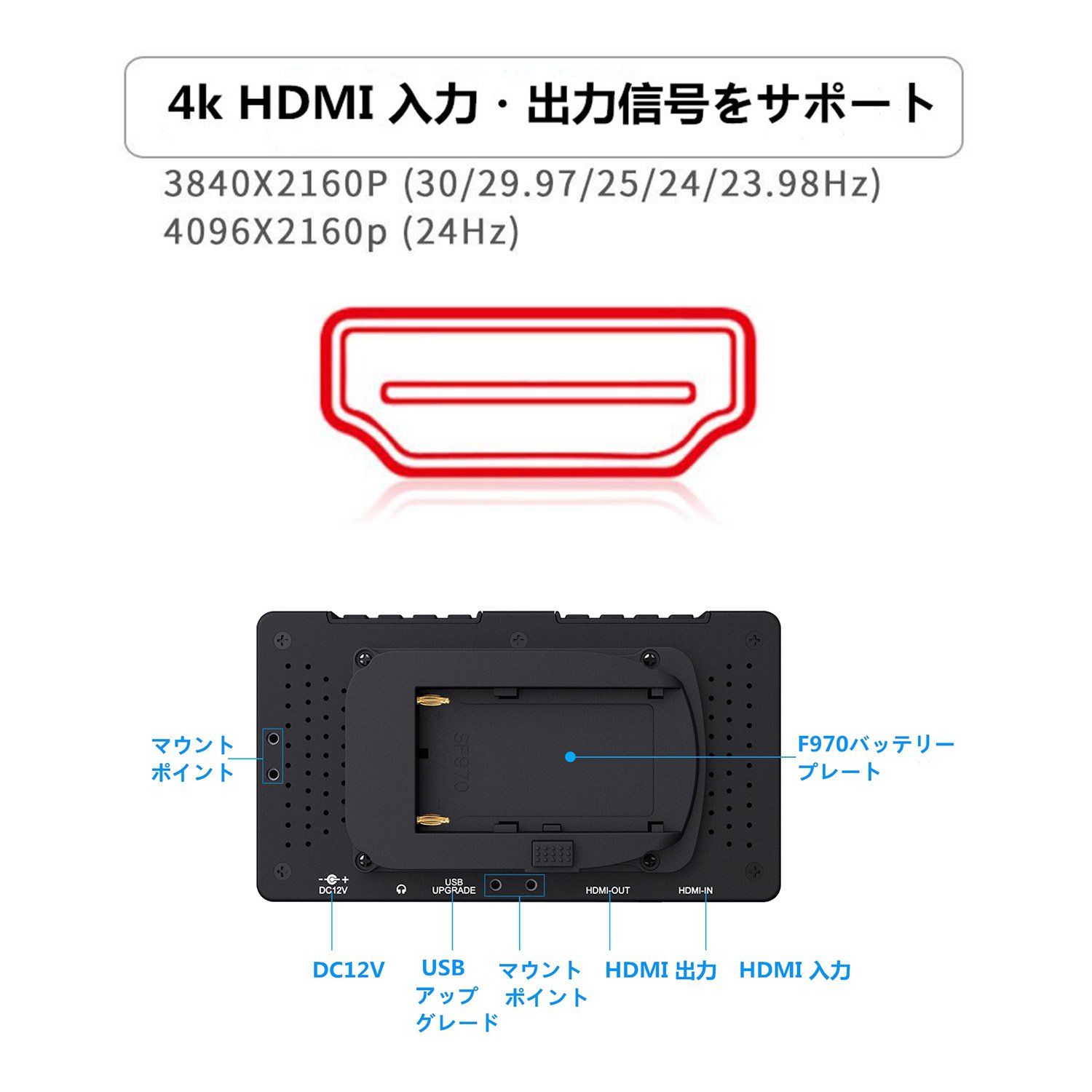

• 【4K HDMI signal input】 Since it has 4K HDMI input / output interface, you can connect the monitor to various 4K cameras.
• You can also synchronize output of 4K HDMI video signal, convenience director, photographer's monitor at the same time.
• You can also use the 3.5 mm stereo headphone jack to monitor the audio.
• We test cameras such as SONY A6500 / FS5 / A7SII, NIKON D500, Panasonic GH5, etc. and support 4K HDMI input signal.

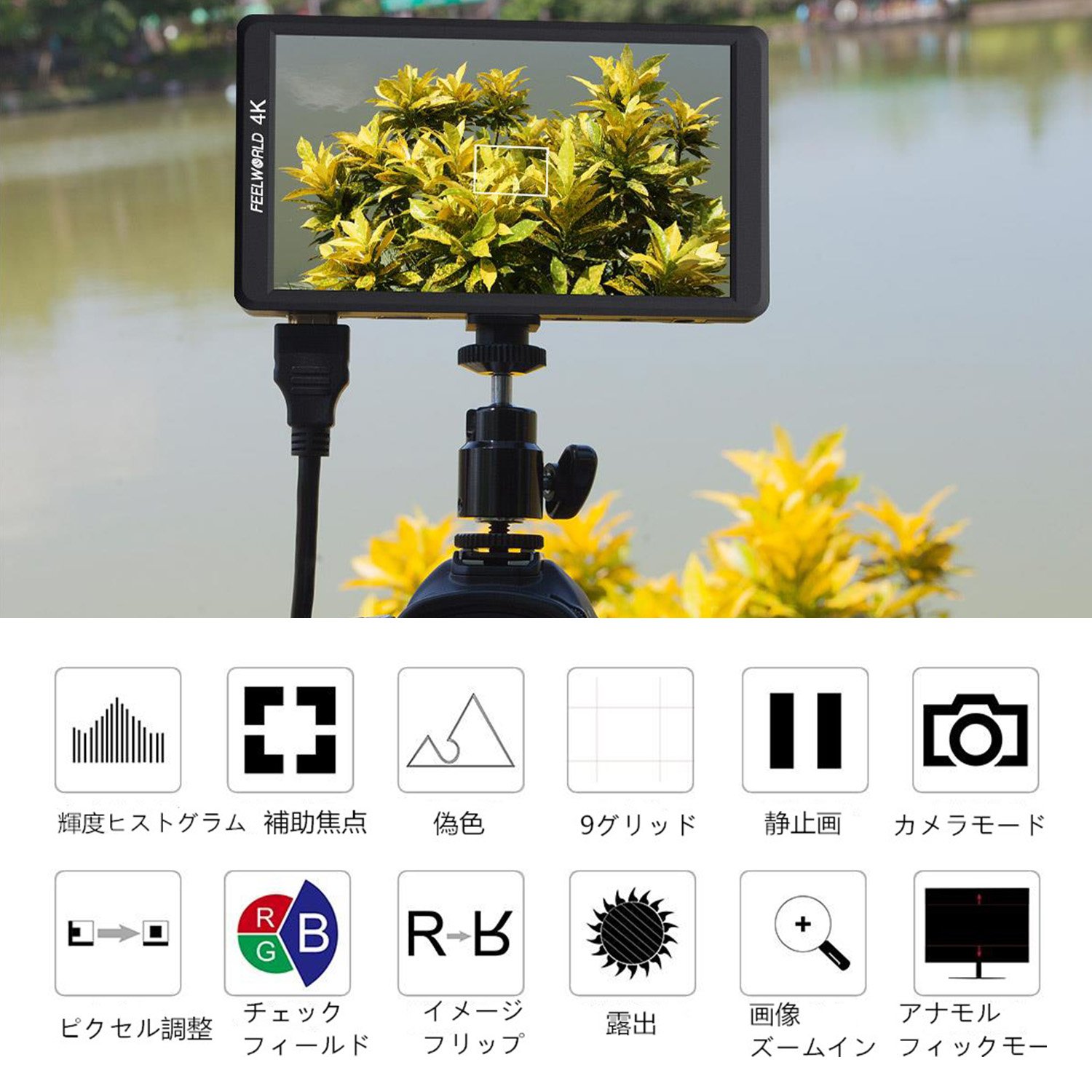

• [Auxiliary function] Histogram, peaking focus assist, zebra exposure, camera mode, image flip, check field, anamorphic mode (1.3 x, 2.0 x, 2.0 x mag), safe area (80%, 85%, 90%
• 93%, 96%), pixel to pixel, image flip (H, V, H / V), color temperature adjustment and so on.
• 9 grid in 4K, zoom (U / D, L / R), pixel to pixel, aspect ratio is not supported.

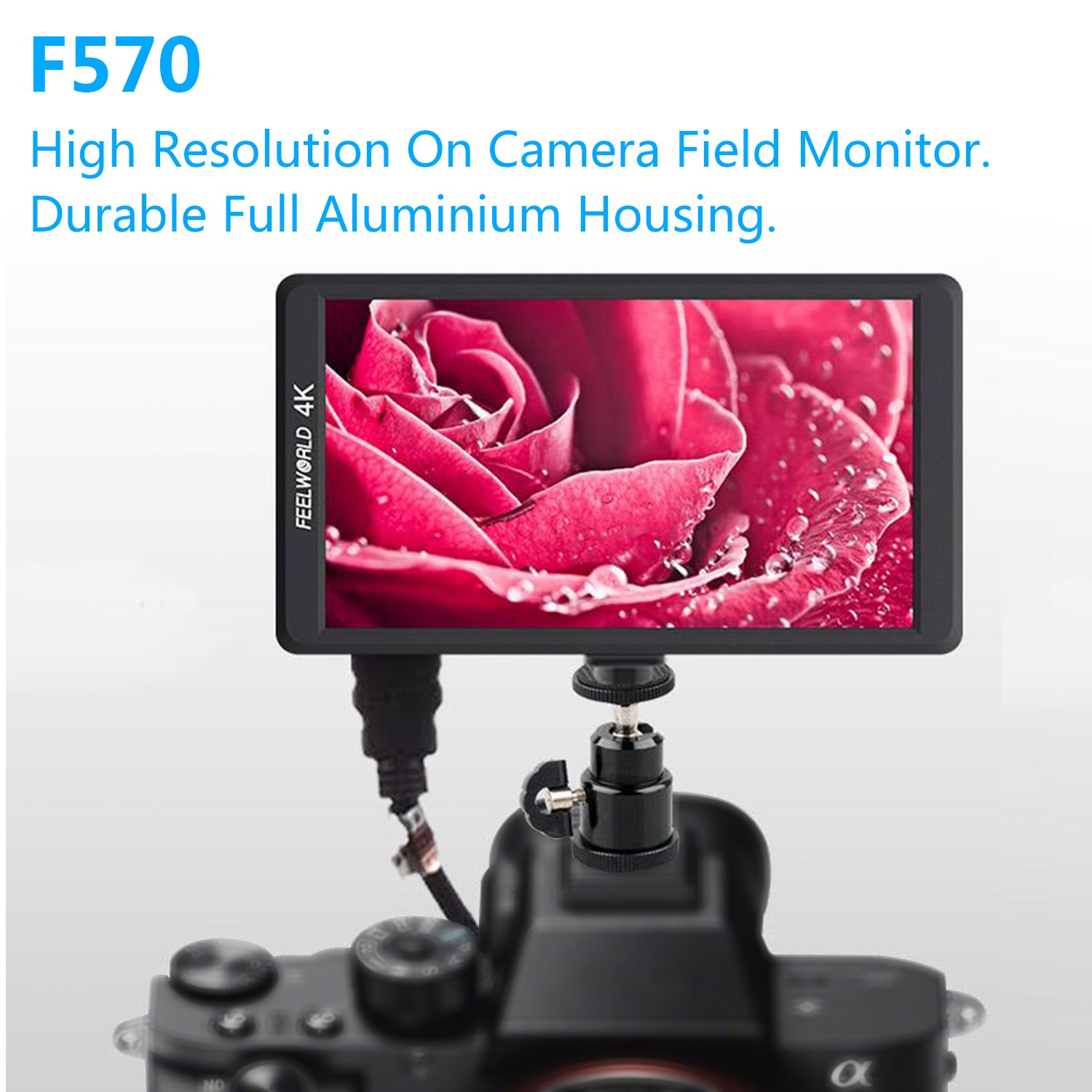

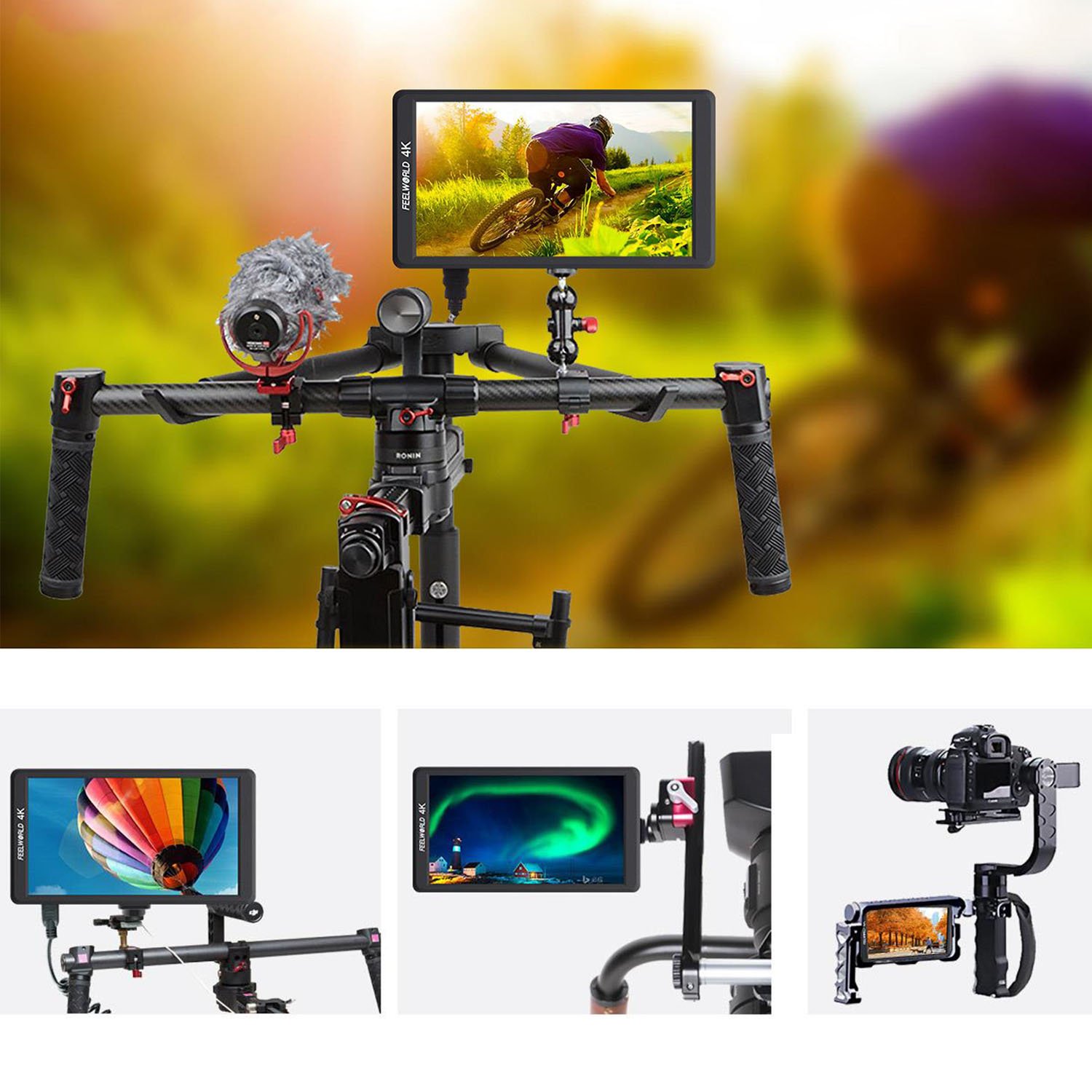

• [Standard 1/4 mount point] There is a standard 1 / 4-20 screw hole, and shooting accessories such as DSLR camera, rig, stabilizer, handheld stabilizer, video camera crane etc can be installed.
• Using 1/4-inch holes, you can sit on the table using the built-in kickstand or attach it firmly to the top of the camera as the ultimate HD viewfinder.
• 【Notes】 ★ Feelworld F570 tutorial video: http://youtu.be/t5MB4J05Ghk The accompanying operation manual is an English manual, if there is something unknown, contact Cinekam's seller via e-mail,
• We will respond to your problem as quickly as possible.
• Because it is a genuine product, we offer one year warranty from date of purchase.
• If there is a problem, exchange is possible, so you can use with confidence.

Product information:

Shipping Weight: 762 g

Package Dimensions: 8.79 x 12.90 x 19.51 cm
