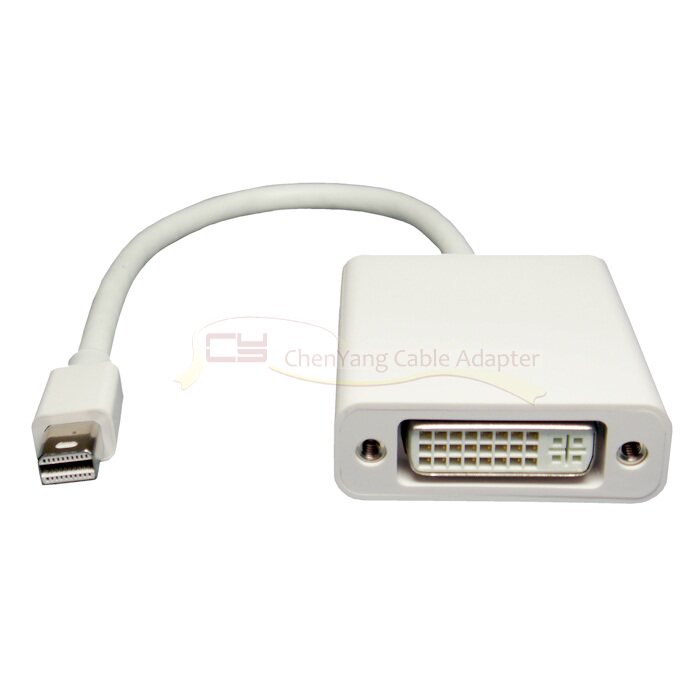

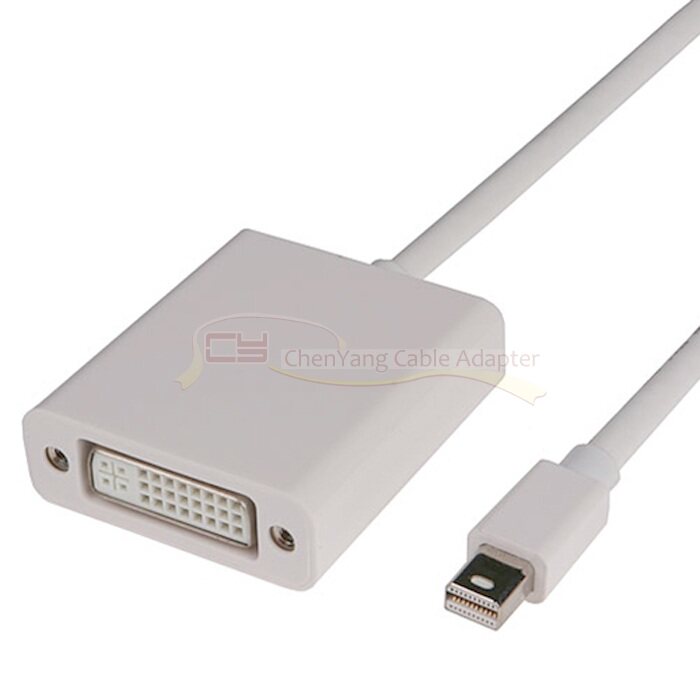

品名：CY MINI displayport  雷电接口转dvi转接线 高清线 支持MINI DP          TB-002

适用于Macbook Pro、Mac Air、Mac Mini使用

輸入 : MINI displayport / Thunderbolt ( iMAC, BOOK, PRO, MINI )

輸出 : DVI



1. 支持MINI displayport ；同时向下兼容20pin的Mini DisplayPort接口

2. 支持高达10.8Gbps的视频带宽；

3. 最高支持QXGA （1920*1080）分辨率输出；

4. 支持单向、单通道、四线连接；

5. 内置转换芯片，无需外接电源



• Compliant with Thunderbolt and mini DisplayPort Interoperability specification V1.1a.
• Support full Thunderbolt and mini DisplayPort link training.
• Compliant with DVI specification up to 1.65 Gbps.
• ESD protect : Human Body Mode at 8kV,Machine Mode at 400 V, and Charged Device Mode at 2kV.
• PC: VGA, SVGA, XGA, SXGA, and UXGA.
• HDTV:480i,576i, 480p, 576p, 1080i and 1080p.
• Standby mode current:64uA

  Item	Convertor
  Displayport source input port	1
  Video device output port	1
  Maximum Single link range	1920*1200 (WUXGA)
  Output Video	DVI
  Input Connector	thunderbolt male 20 pin
  Output Connector	DVI 24+1/24+5
  Video band width (bps)	2.7G single link
  Vertical Frequency Range	60Hz
  Operating Temperature	0 ~ 50oC
  Storage Temperature	-20 ~ 60oC
  Emission	CE, FCC, C-Tick
  Enclosure	Plastic

有MINI displayport  / Thunderbolt的電腦如下：(2011年中 以後 , 全面配備Thunderbolt)

MAC BOOK PRO 2011 2012

MAC AIR 2011 2012

iMac 2011  2012



Name: CY MINI displayport lightning interface turn dvi adapter cable HD line support MINI DP TB-002



Applies to Macbook Pro, Mac Air, Mac Mini

Enter: MINI displayport / Thunderbolt (iMAC, BOOK, PRO, MINI)

Output: DVI







1. Support MINI displayport; backward compatible with 20pin Mini DisplayPort interface

2. Support up to 10.8Gbps video bandwidth;

3. Up to support QXGA (1920 * 1080) resolution output;

4. Support one-way, single-channel, four-wire connection;

5. Built-in conversion chip, no external power supply



Compliant with Thunderbolt and mini DisplayPort Interoperability specification V1.1a.
Support full Thunderbolt and mini DisplayPort link training.
Compliant with DVI specification up to 1.65 Gbps.
ESD protect: Human Body Mode at 8kV, Machine Mode at 400 V, and Charged Device Mode at 2kV.
PC: VGA, SVGA, XGA, SXGA, and UXGA.
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p.
Standby mode current: 64uA

Item Convertor
Displayport source input port 1
Video device output port 1
Maximum Single link range 1920 * 1200 (WUXGA)
Output Video DVI
Input Connector
thunderbolt male 20 pin

Output Connector DVI 24 + 1/24 + 5
Video band width (bps) 2.7G single link
Vertical Frequency Range 60Hz
Operating Temperature 0 ~ 50oC
Storage Temperature -20 ~ 60oC
Emission CE, FCC, C-Tick
Enclosure Plastic





Computers with MINI displayport / Thunderbolt are as follows: (Thunderbolt fully equipped after 2011)

MAC BOOK PRO 2011 2012

MAC AIR 2011 2012

iMac 2011 2012
