Item Descriptions:

SUPERS Small hidden camera

CAUTION: The instrument has a built-in lithium battery, please use it before charging for the first time before charging.

☆ When there is a problem with the product, we will sorry for troubling you, please contact to that effect.

I will correspond as soon as possible.

Please pay attention to illegal sellers!

Please purchase the regular product of the brand "SUPERS".

If you purchase from "TEBAK CAM" store other than the store, TEBAK CAM can not be judged as a regular item, it will be out of the scope of TEBAK CAM security assurance.

Please be careful.

"TEBAK CAM" store

Products purchased from,

We offer free exchange service

1> Because this is a built-in camera, all the aircraft are being exposed outside, power on and off levers are too fragile, please be careful when using power on / off (please explain the product detail page

To do)

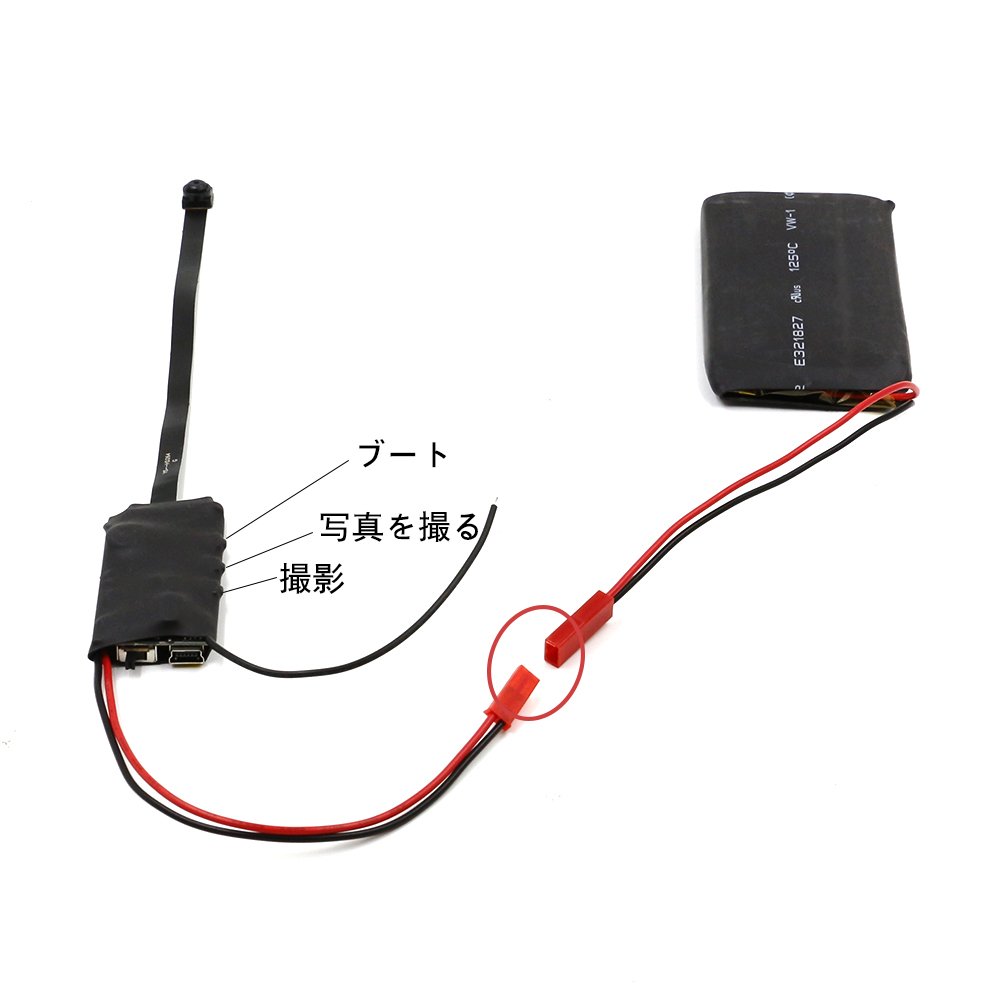

2> It consists of "Camera" part and "Battery" part, the lens is definitely fixed, on the contrary, it can not shoot (I will explain the details page of the product)

Basic parameters

Resolution: 1920 * 1080

Power consumption: 220 MA / H

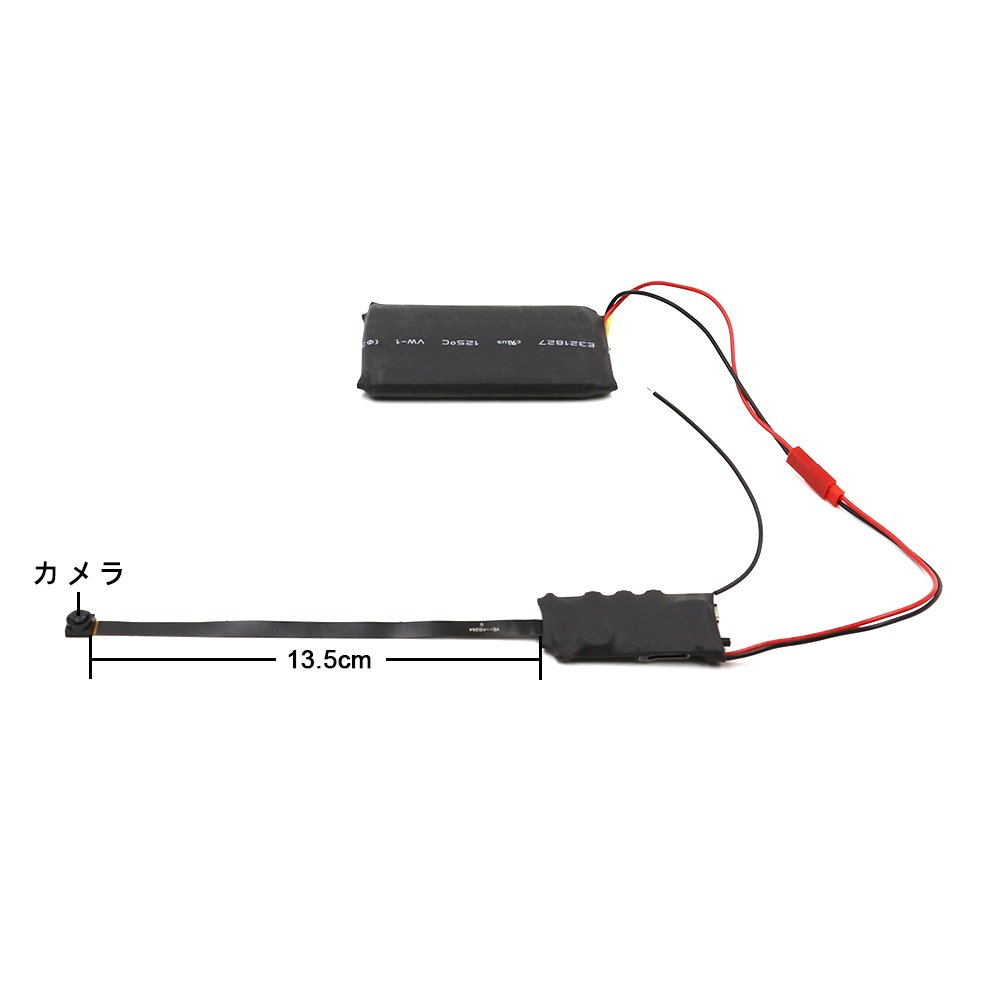

Lens length: 15CM

Memory: Up to 32 GB

Sadao: 30 fps

Take a picture: 4032 * 3024

Weight: 150 g

DC: 5-8 m

Battery length * width * high: 83 * 50 * 10 mm

Fuselage length * width * high: 53 * 28 * 10 mm

Shooting:

From standby mode.

Short press the C button, blink red and blue light at the same time once, the machine shakes once, the picture can be taken and saved

Recording:

From the standby mode, recording is started after long pressing the B button, once the machine shakes and the red light flash three times.

Press the B button briefly again, the machine trembles twice, the red light turns on, the recording is saved, and at the same time it returns to the standby mode.

Short press the A button, red and blue light flashes at the same time three times, the light goes out, it will be shut down.

Video automatically saves the document in 1 / 5th minute, and when the card is full, it records in the automatic cycle

Motion detection Recording:

From the standby mode, press the D button briefly, the red and blue light flashes at the same time twice, the machine trembles once, the light disappears, motion detection recording is started

Press the D button briefly again, the red light turns on, the machine trembles twice, the recording is saved, and at the same time it returns to the standby mode.

Press the Re-A button to enter shutdown mode

charging:

Before USB charging, open the machine's power switch first.

The red light turns on when charging and the blue light flashes

Blue light stops flashing when electricity is full

Time set:

Connect the USB cable to the PC and insert the text file "timerset" at the location of the removable disk.

Please open "time.txt".

Please write it like "[date] 2017.02.27 18: 07: 00 y 2 2" by half-width alphabet.

And please save it on the removable hard disk.

Then time set is complete.

It will be OK if you start again

"2017.02.27 18: 07: 00 N 2 2" (Time disappears)

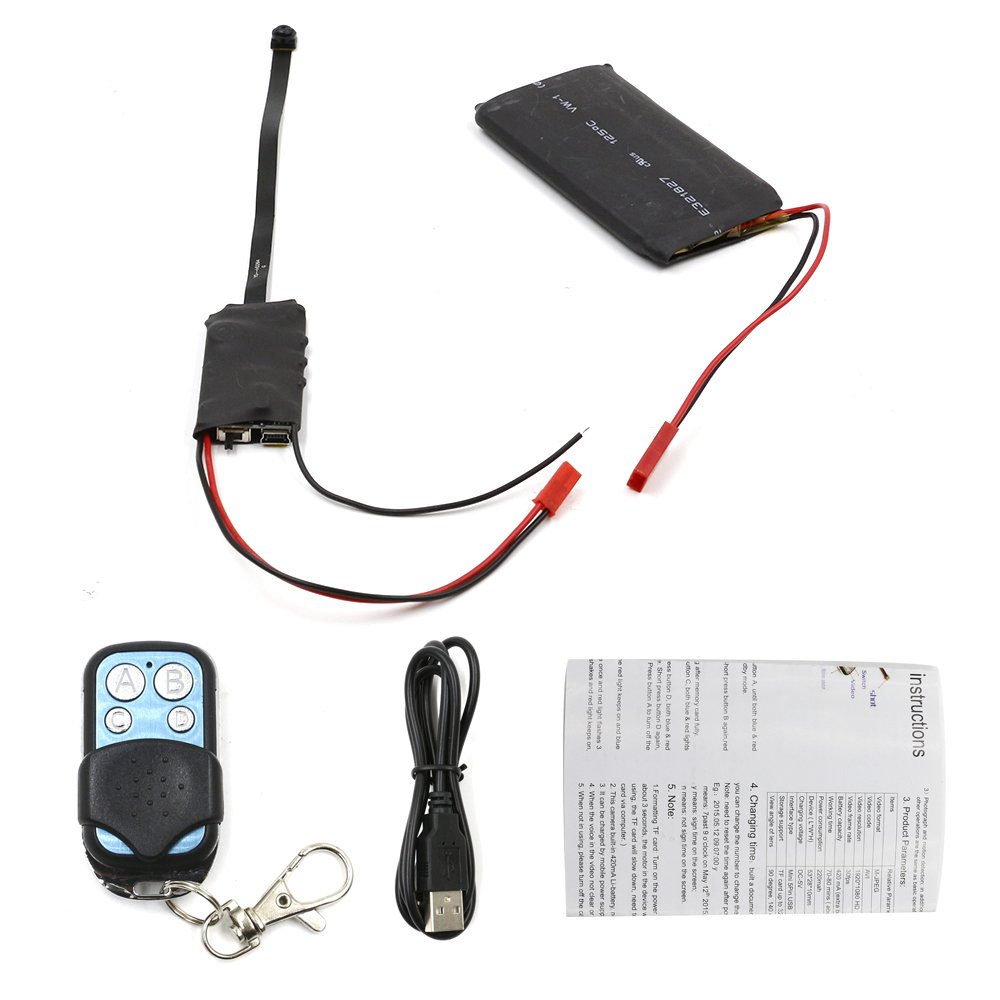

Included in package:

1 * body

1 * Battery

1 * USB cable

1 * Remote control

1 * Japanese Instruction Manual

※ Please do not use in places with a lot of water, moisture, dust

I want evidence with a hidden camera

■ Evidence collection item to protect yourself in daily life such as stalkers and suspicious people, DV damage!

■ To protect important people, such as nursing homes and babysitters as suspected abuse!

■ Just plug it into an outlet when you want to shoot!

As crime prevention measures at the time of emergency!

(This product is a necessary and practical tool in the fields of security, education, life etc at home for purposes of crime prevention and security for protecting important families and wealth.

Features:

• Please enter model number Confirm this is compatible:
• It is a very compact camera head camera unit.
• Since it is completely separate from the battery, control section, camera head, it can be installed in a very thin place.
• Movie files themselves are 1920 × 1080, sharp images can be taken in detail, realizing high definition FullHD 1080P image quality.
• It has functions such as recording, recording, motion detection etc. It is very convenient

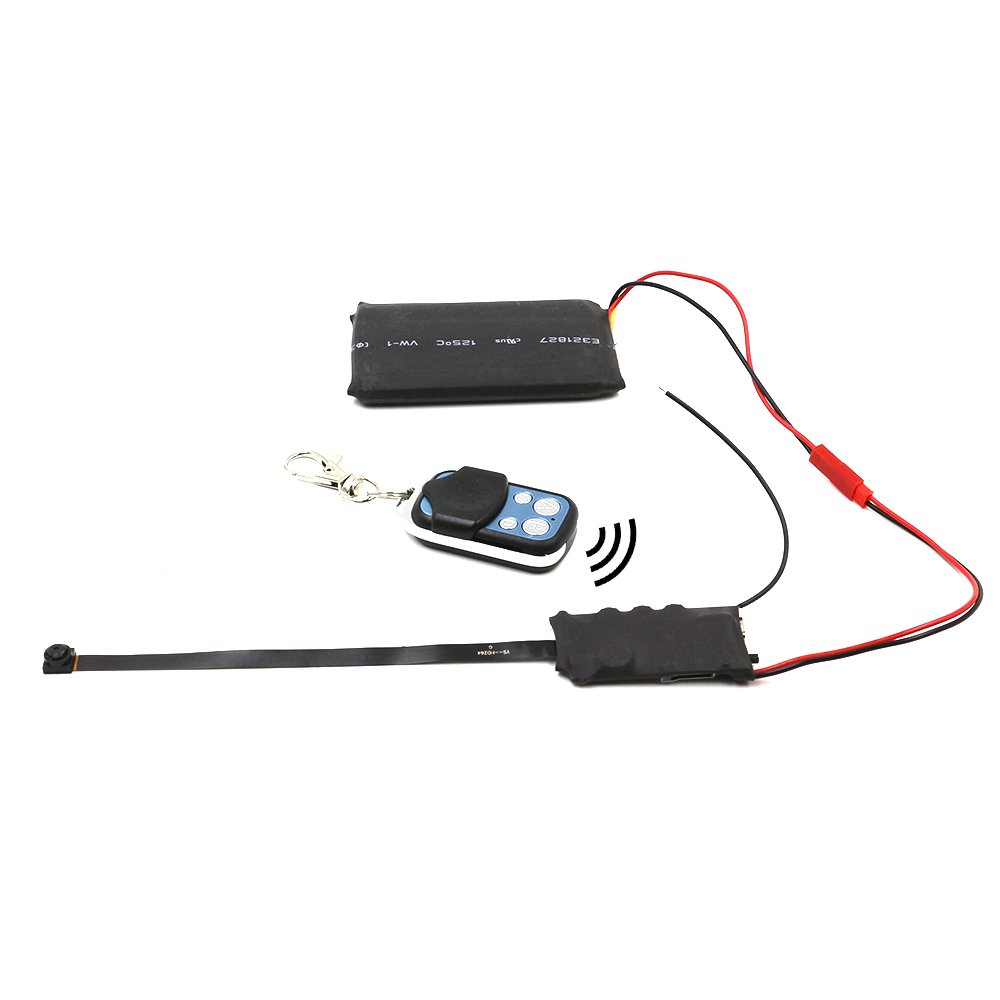

• How to use the remote control: A → Power on / off B → Movie shooting of 1280 x 720 C → Image shooting D → Movie detection shooting of 1920 x 1080.
• The blue part of the remote control surface can be peeled immediately because it is a cellophane like a protective material
• Included in the package: 1 * Body; 1 * Battery; 1 * Mouser; 1 * USB Cable; 1 * Japanese Instruction Manual

Product information:

Shipping Weight: 158 g

Package Dimensions: 6.60 x 7.70 x 12.29 cm
