-. Binding : Personal Computers
-. Brand : Seeedstudio
-. EAN : 0752128110092

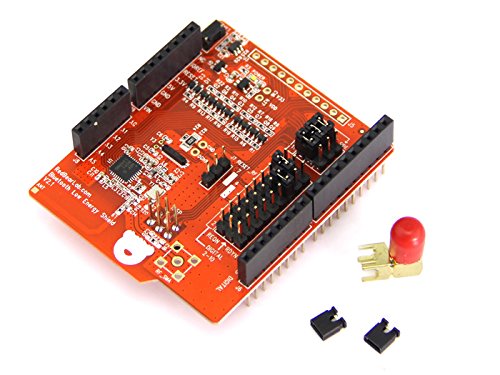

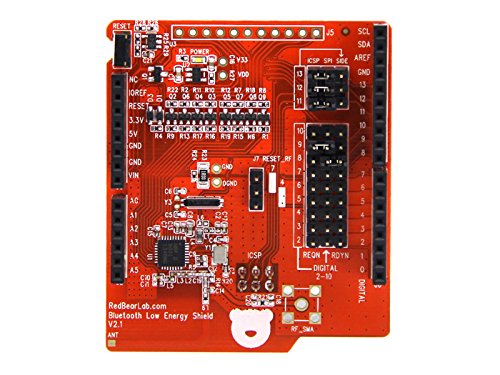

-. Feature : 1. Besides the on-board PCB antenna， option to use SMA connector for external antenna (soldering is required). 2. Flexible REQN and RDYN pins selectable from pin 2 to 12， these pins are fixed at 8 & 9 for BLE Shield v1. 3. / Reset button also resets the Arduino board， and vice versa. 4. ICSP header provides Vcc (for other shields to get power source). 5. ICSP header now passes through (for other shields to connect to the SPI). 6. / Shield's reset is controllable by Arduino pin 4 or 7. 7. Reset signal to the shield is now active low (i.e. pull low to reset the shield). 8. Added test points for power consumption measurement of the nRF8001 chip (soldering is required). 9. / Added circuitry and test pin (J9 NC) for measurement of instant working current (using logic analyzer， 1mA = 100mV).
-. Label : SeeedStudio
-. Manufacturer : SeeedStudio
-. Model : 103990055
-. MPN : 103990055
-. PackageQuantity : 1
-. PartNumber : 103990055
-. ProductGroup : Personal Computer
-. ProductTypeName : COMPUTER_COMPONENT
-. Publisher : SeeedStudio
-. Studio : SeeedStudio
-. Title : SeeedStudio - Bluetooth 4.0 Low Energy - BLE Shield v2.1 - Arduino Compat/ - DIY Maker Open Source BOOOLE
-. UPC : 752128110092


DIMENSION INFOMATION
Product Dimensions : 0(Width) x 0(Length) x 0(Height)
Shipping Weight : 0.22 pounds
