Product Description

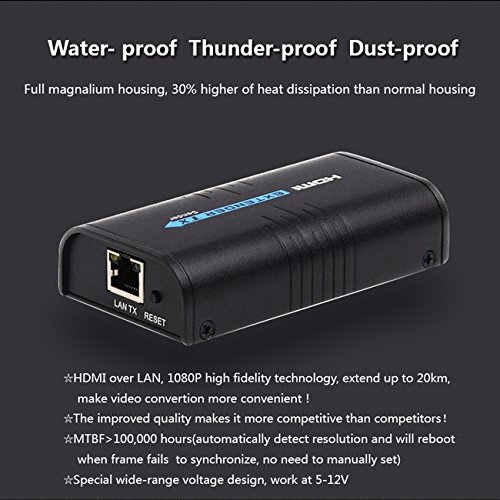

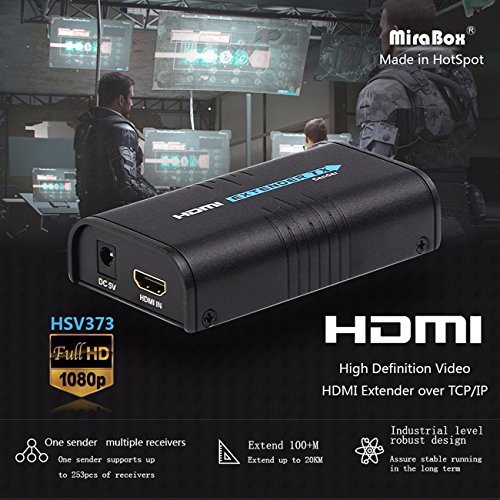

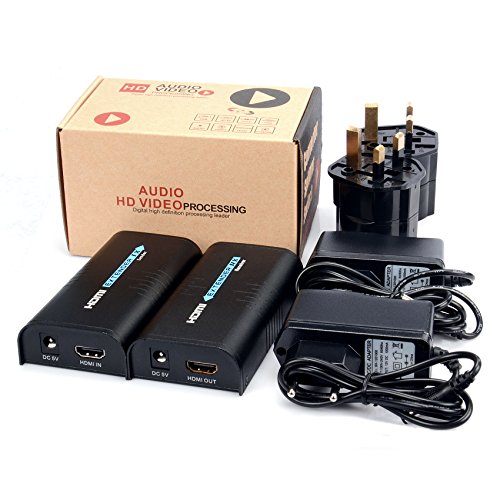

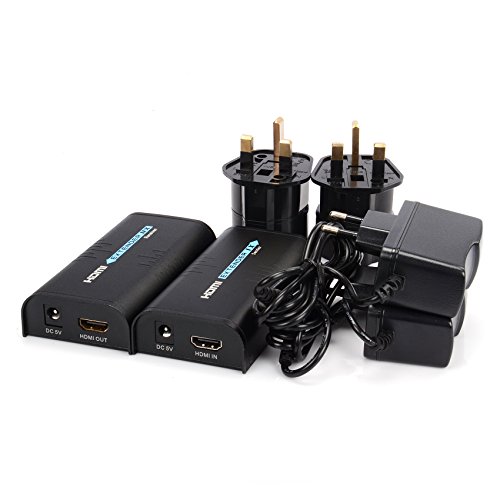

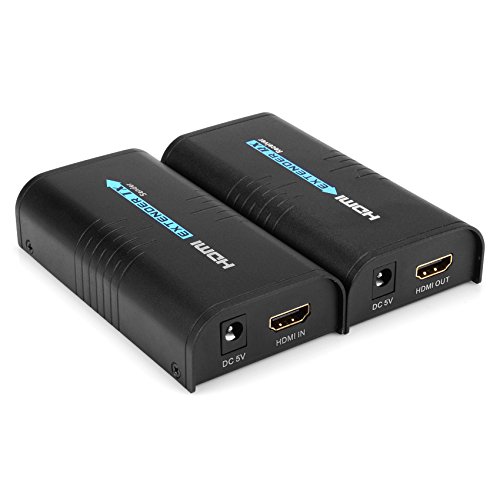

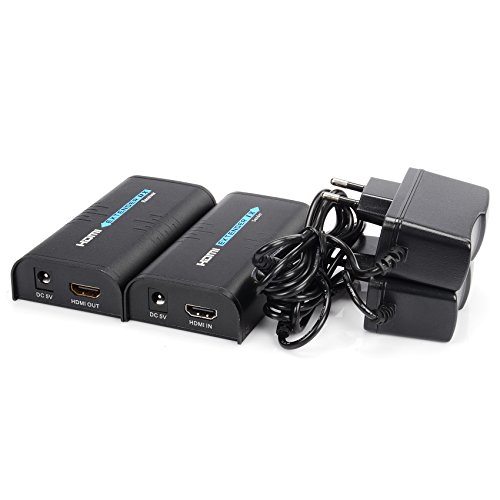

HDMI Extender Over Cat5/Cat5e/Cat6/Cat6e Rj45 Support 1080P 253 PCS Of RX Cascade, Transmitter And Receiver Extend Maximum 20KM

Introduction
This HDMI Extender Ethernet is designed to convert HDMI signal to standard TCP/IP and transimit by internet cable or Lan.With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,Sky HD box, HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments

Features

1. Apply M-JPEG technology to process image compressing. 2.The loss of image quality is very small.
3. HDCP compatible.
4. It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
5. It can transmit by Lan.
6. Support Lan bandwidth: 100M
6. Support Lan bandwidth: 100M
7. Extend 120m longer by adding one more ethernet router
8. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.
9. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from 1 pcs of SENDER support maximum 253 pcs of RECEIVER (over Switch)

Technical Specification

Power Supply:1 pc×DC 5V/1A
Supports Resolutions:480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz
Working Temperature: -40°C - 80°C
Link Connector(Sender/Receiver): UTP/STP CAT5e/6
Power Consumption:3W(max) each
Relative Humidity:20% ~ 90%

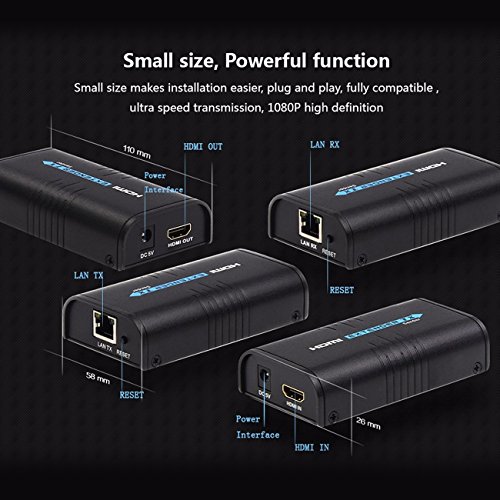

Dimensions:110×58×26mm
Weight:129g
