Studio : EyeNetra Inc

Publisher : EyeNetra Inc

Product Description

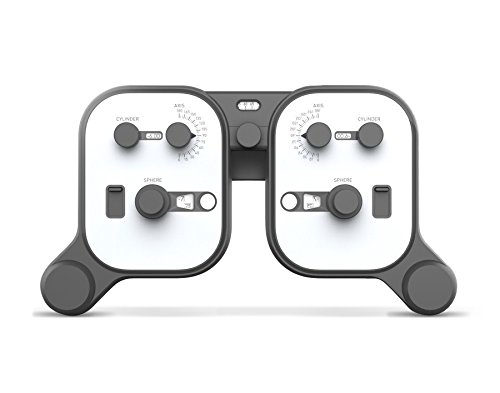

Running visual acuity tests has never been so simple. With a quick setup, an eye care professional can easily validate and refine refractions. The Netropter operates for both distance and reading tests as well as monocular and binocular readings and fully replaces trial lens kits. It is designed to be used in the patient's hand instead of on a supporting structure. It is light-weight and the lenses are molded and polished with high-precision tools to get them the closest to their labeled power.


Technical Specifications
- Technology: Trial Lens Stack (25 lenses per eye)
- Measuring Wavelengths: ~350nm to ~750nm (Broadband)
- Sphere Range: -10.75 to 5.00D, 0.25D increment
- Cylindrical Range: 0 to -6D, 0.25D increment
- Axial Range: 0 to 180, 1 degree increment
- Pupillary Distance Range: 52 to 72mm, 1mm increment
- Visual Field: ~20 Degrees (14mm aperture)
- Acuity Measurements: Binocular and Monocular
- Vision Test Type: Distance and Readers
- Device Dimensions: 5.0cm x 7cm x 10cm (550g)
- External Processing Unit: None
- Setup Time: 30 seconds
- Calibration Requirements: None
- Power Requirements: None (Manual Setup of Lenses)
- Specialized Furniture Requirements: None (Handheld)
- FDA Status: Product Listed as Class 1 exempt
- Clearance in Europe: CE marked per applicable requirements of Europe's Medical Device Directives
