Item Descriptions:

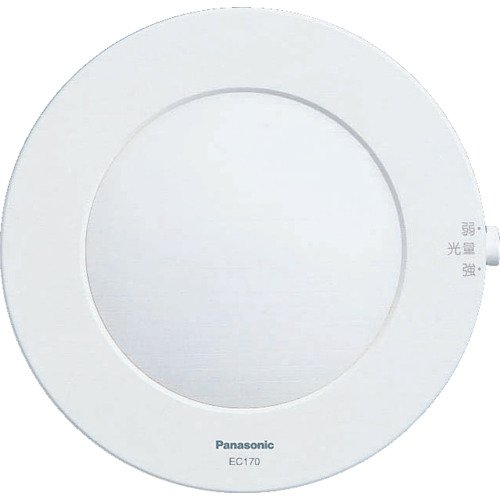

◆ Notice with chime sound and flash lamp When you press a push button for chime at the time of visiting, you can inform you with chime sound and flash lamps, and also to those with disabilities.
◆ The flash lamp flashes from the front and side of the main unit, and light is emitted over a wide range.
♦ If you connect a push button for contact you can call from a bathroom or toilet.
◆ Since the chime sound comes with an auto stop, it stops ringing automatically even when the push button is pressed.
◆ Volume · Light intensity can be adjusted.
(The volume will be silent.) * Flash lamp can not be used off and can not be used.
◆ There is a knockout part at the top and bottom of the main body, so exposed wiring is also possible.
/ ■ Specifications ■ Power supply: AC 100 V (50/60 Hz) Power consumption · · Standby: 3.5 W · Ringing: 12 W size (Approx.): Outer shape 168 × depth 49 mm Mass (approx): 400 g Volume · · ·
Ping-pong sound: large (70 dB or more), small (50 dB or more), cut · boar sound: large (65 dB or more), small (45 dB or more), ringing time · · · ping-pong sound: (twice · 3 times)
6 seconds (auto stop) · Boo sound: While push button is pressed (but it stops automatically in about 2 minutes) Flash lamp: flash light of xenon lamp (strong / weakly adjustable) Accessories: mounting wood screw × 2, mounting bracket
(Included in the main body) Applicable model · · For chime: EG 365 P, EG 372 P, EG 375 P, EG 342 · P, EG 345 · P, EG 331 · P, EG 335 · P, EG 121 · P · For contact: WQ 4501, WS 65611 K, WS 65311, WS 65771
, WTF 4409 W * You can not connect push buttons (WS 66772, WS 66712 K, etc.) with calling LED indication.
/ ※ This one can not be used by itself.
Push buttons are sold separately.
※ Please check the corresponding model, please order.
* Ceiling mounting is not available.
Features:
- Gleaming chime
- When pushing the push button for chime at the time of a visitor, we can inform you with chime sound and flash lamp, and also to the handicapped person etc.
- ※ The flash lamp can not be used off and on ● The flash lamp flashes from the front and sides of the main unit, and light is emitted over a wide range.
- ● If you connect a contact pushbutton you can call from a bathroom or toilet.
- ● Volume and light intensity can be adjusted.
- (The volume will be silent.) * ● Since the chime sound comes with an auto stop, it stops ringing automatically even when the push button is pressed.
- Ringing time ● Ping-pong sound (2 times) (3 times): about 6 seconds (auto stop) ● Boo sound: While pushing the button (but it automatically stops in about 2 minutes)
- Flash lamp ● Specification Flash light of xenon lamp (strong / weakly adjustable)
- For handling, qualified electrician is required.
- ● Since there are knockout parts at the top and bottom of the main body, exposed wiring is also possible.
Product information:
Shipping Weight: 498 g
Package Dimensions: 7.01 x 17.40 x 17.40 cm
