Notification
___________________________________________________

This product is currently sold in the U.S.A
So this product is shipped directly from the U.S.A
Delivery time is 7 to 14 days.
We will do our best to ensure safe and fast delivery.
 ___________________________________________________

[Important check]
Please check when purchasing electronic products.
We ship All the electronics from America.
All electronics are 110v in America
This is american 110v item,too
If you don't use a transformer, the product will break down
You have to use a transformer for this product.
Transformer (110v to 200~240v)
thank you
___________________________________________________

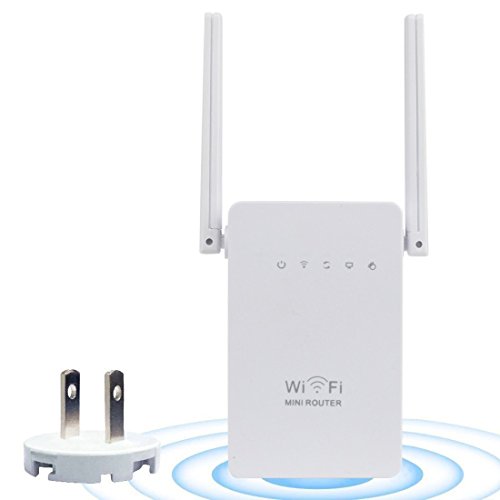

MINI WIFI Router, 300Mbps Wifi Range Extender Repeater Amplifier Wireless-N W-lan Signal Extender Booster 802.11n / b / g Netzwerk wireless Repeater / Router / AP wifi booster with WPS







Product Description

Wireless Setup
1.Plug router into wall. Wait approx. 1 minute to establish a signal till see steady blink(Wlan)
2. On your phone/tablet/laptop/PC connect to wifi signal which name is "Wireless-N" (NOT your existing Wifi)
3. Open your browser and enter 192.168.1.254 on address bar
4. Username and password are both "admin" after login
5. Click on the desired mode of operation then click on "Save"
6. Select your existing Wifi network and click "Apply"
7. Change the Repeater SSID(if you want) and Security key to EXACTLY match the SSID and password of your Wifi network. Click "Apply".

Specifications:
Wireless Standard:802.11n/b/g
Frequency Band: 2.4 GHz
Supported Voltage:110V-240V
Wireless Speed: 300Mbps(RX/TX)
Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS

What's in the package:
1 x Mini 300Mbps Wireless-N Wifi Router
1 x RJ-45 Ethernet Cable
1 x User manual

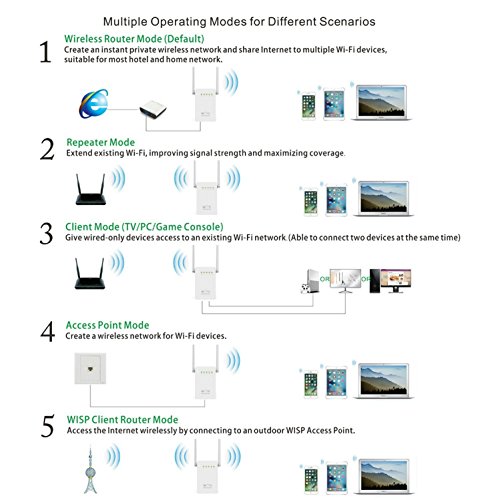

1.Wireless Router Mode:
Create a wireless network and share Internet to multiple Wi-Fi devices.
2.Repeater Mode:
Extend wireless range.
3.AP Mode:
Connect wired network and share the Internet with friends.

Feature

1. Universal Compatibility - Work with any wireless device/network/router. 300Mbps Wireless Data Rates ideal for video streaming, web browsing, and Internet calling
2. Multiple Operation Modes - Wireless Router Mode, Repeater Mode, Access Point Mode, and WISP Client Router Mode
3. Easy to Install and Use - Small size and wall-mounted design make it easy to deploy and move with flexibility. Simply pressing WPS button to ensure the network is safe
4. Two Ethernet ports (WAN & LAN) allow the Extender to function as a wireless adapter to connect wired devices
5. Ideal for home office,hotel, starbucks and bookstore application. A portable travel extender possess repeater/router/AP mode
Brand : Smartwifi
EAN : 0611536443331
Package Dimensions(LxWxH) : 12x12x9cm ; 113 g
