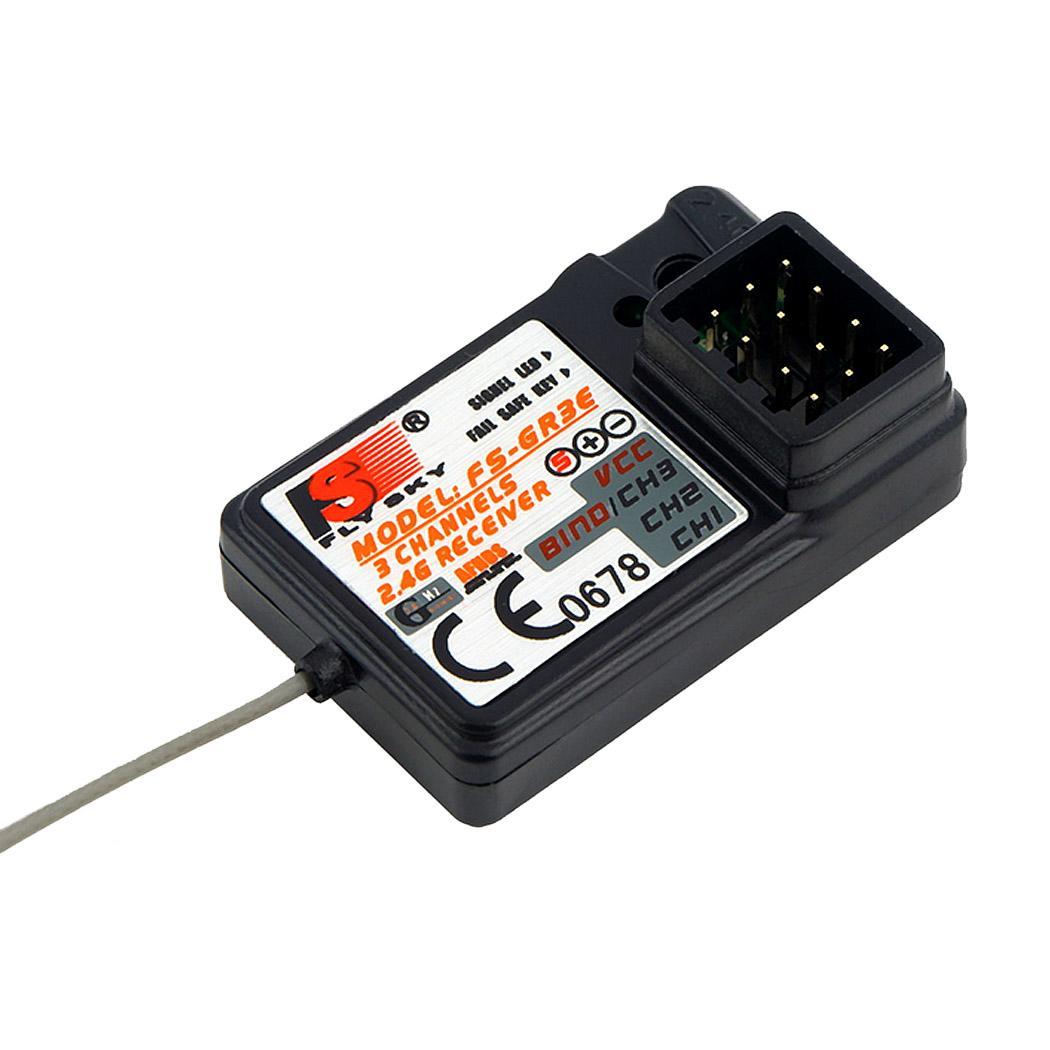

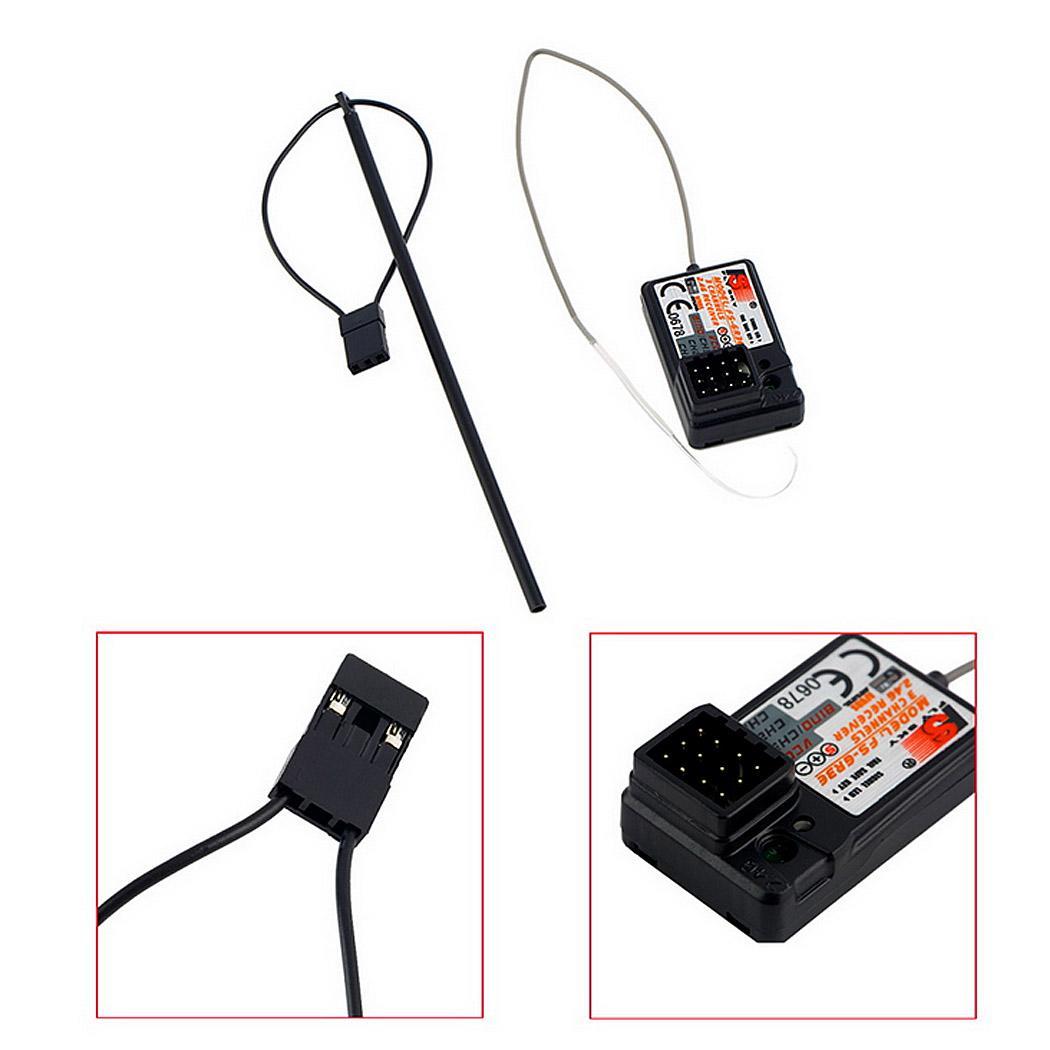

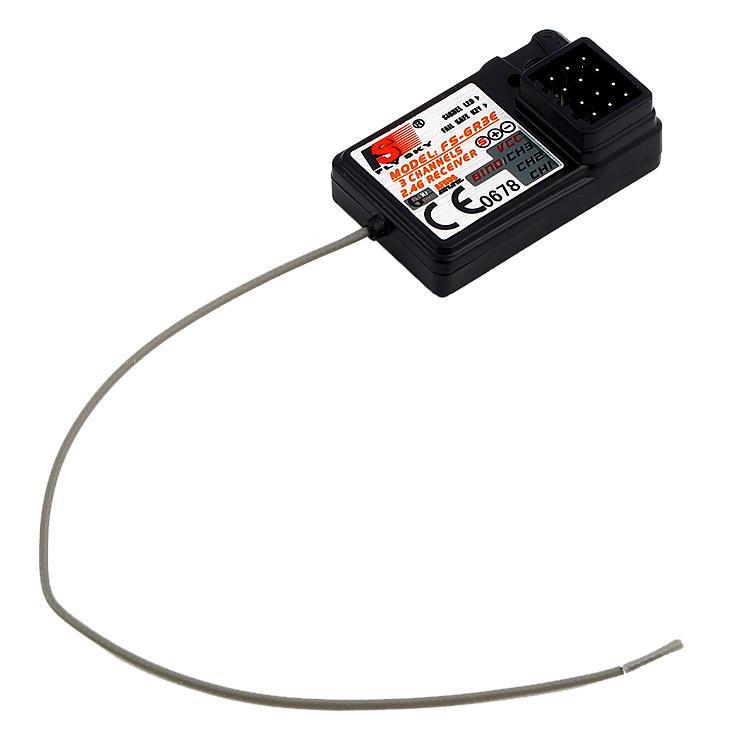

Product details of SuperCart The Standard FS-GR3E 2.4Ghz 3-Channel Receiver for Rc CarAuto Boat New

Dear Buyer,Thanks for You Purchase ,IfYou Are Satisfied with Our Product ,Could You Please Leave Us 5Star Feedback ? That's Very Important for Us ,Thank You Very Much.

100% Brand New.

Size: 35.5 x 22 x 13mm/1.4 x 0.9 x 0.5inch (L x W x H) Ant length: 180mm

Color: Black Net

Weight: 2g

Channels: 3 channels

Model type: Airplane, glid

Modulation: GFSK

Code type: PPM

Frequency: 2.4G

Certificate: CE FCC Power: 5VDC(1.5AAA x 4)not included)

Compatible with FS 2.4Ghz SurfaceTransmitter, very easy to bind.

Matching (Code)

A. Install the battery to 2.4Gtransmitter and shut it down.

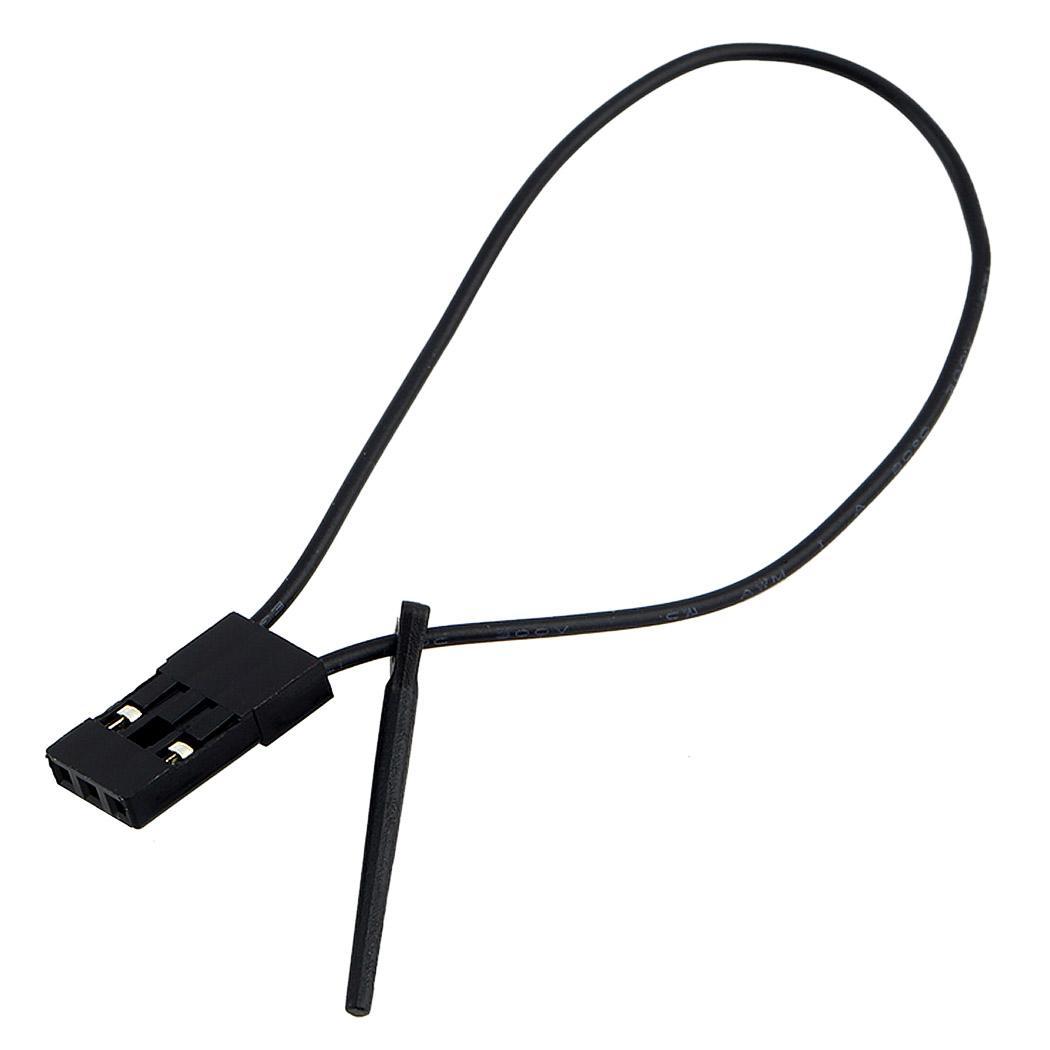

B. Insert the matching lines to thechannel BIND/CH3 port of the receiver.

C. Connect the receiver battery to VCCport of the receiver, on the same time the two LED are

flashing and this means the receiverare going to the matching status.

D. Press and hold the button on thetransmitter, and then switch on the power supply.

E. Observe the LED on the receiver, iffind that the LED is not flash anymore and that means successfulMatched. (This process about 5s)

F. Release the match button on thetransmitter, take out the match line.

G. Install the server and thentest.

H. If the tests fail, please repeatthe action above.

G. If the tests success, then insertthe power supply port into VCC, match complete.

(The above ways of match is onlysuitable for FLYSKY 2.4G products)

Note: Due to the difference betweendifferent monitors, the picture may not reflect the actual color ofthe item. We guarantee the style is the same as shown in thepictures, but not the same performance on different bodies as onthe model. Thank you!

Specifications of SuperCart The Standard FS-GR3E 2.4Ghz 3-Channel Receiver for Rc CarAuto Boat New

• 1 x SuperCart The Standard FS-GR3E 2.4Ghz3-Channel Receiver for Rc Car Auto Boat New
