Product Description


What can you do in a few minutes?

Now I can tell you. You can find the satellite TV signal and high-quality picture signal that you want.

Are you crazy about the bad signal of football match channel and direct TV?

Do not worry, our product can give you a perfect enjoyment.

1.Description:

2.1 Inch LCD Screen Display

-Input Frequency :950~2150MHz

-Input Level :-65~ -25dBm

-Input Impedance :75 ohm

-Measurement Type: signal strength,quality;ber;pwr

-Sound for Locking Signal

-Support DISEQC 1.0 /1.1 and 22khz Tone

-LNB Power Supply:18/13V(IMax 300mA)

-Beep Integrated

-7.4V/800mAh Lion Battery Included

-Max Operating Time:3 hours

-12V/1.2A DC Adapter

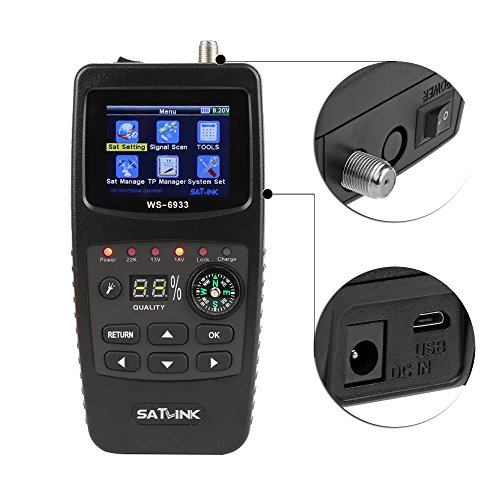

-USB Port For Software Upgrades

2.Specification:

-Connector Type: F Type ?

-Input Frequency; 950 to 2150 MHz?

-Signal Input Level: - 65 to -25 dBm

-Band Switch Control : 22KHz?

-LNB Supply:13V/18V, IMax 300mA?

-Demodulation Type: QPSK,8PSK?

-LCD Type : TFT Positive transflective?

-Number of Dots: ?240(RGB)*320?

-Active area (WxH);? 36.72(W) * 48.96(H)MM2?

-Connector: ? USB ?

-Data protocol : USB to RS-232?

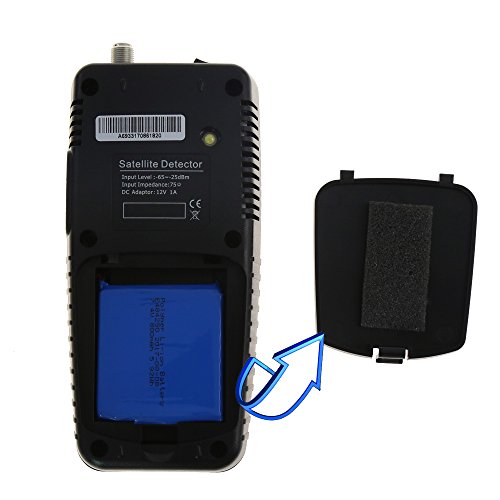

-Li-Ion Battery:7.4V/800mAh?

-Adapter：OUTPUT :DC12V/1A, INTUPT :100-240VAC 50/60Hz?

-Power consumption: Max. 5W?

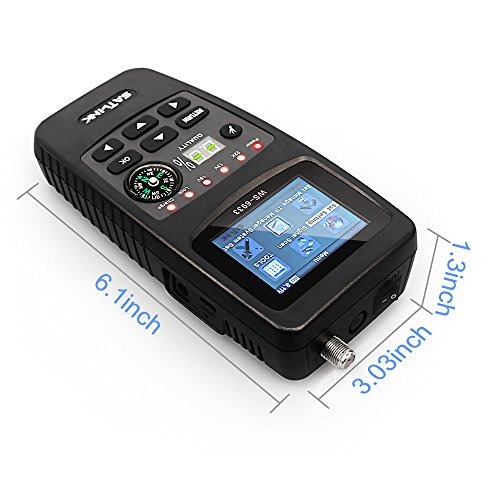

-Size (W x D x H): 8x16x4(cm3)?

-Net Weight ; 0.25kg?

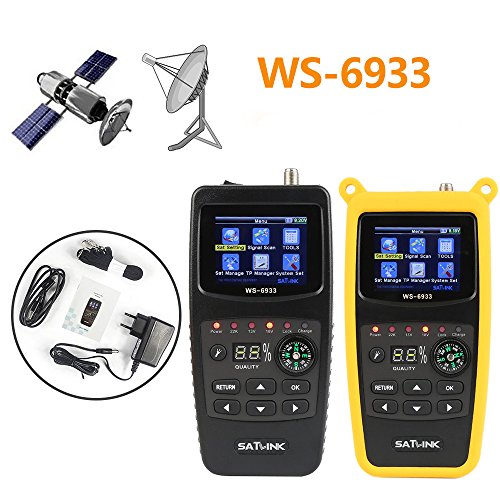

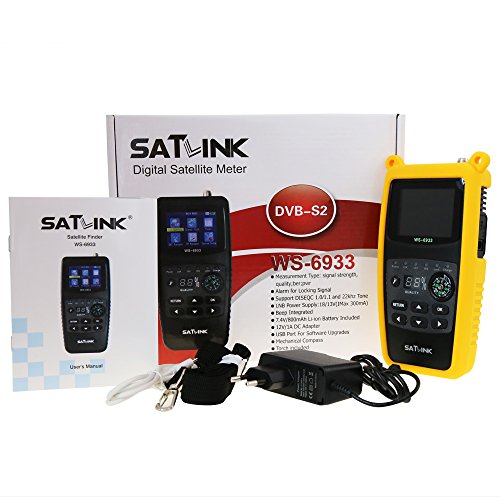

3.Package Include:

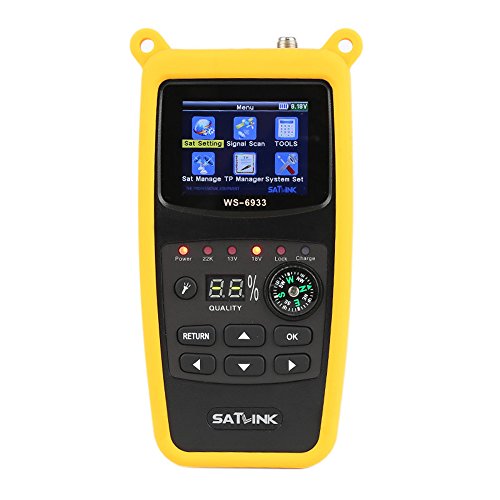

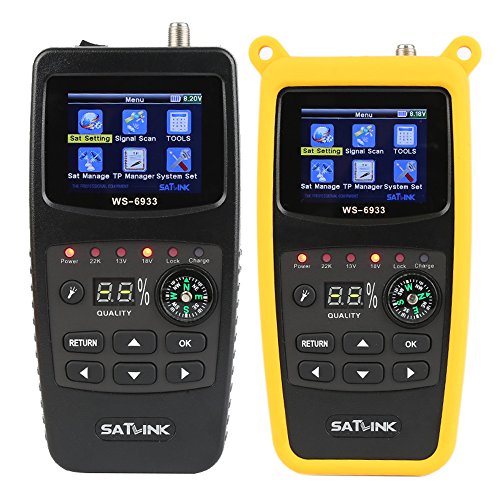

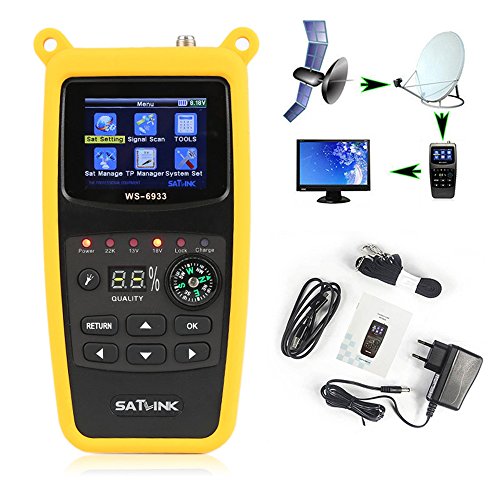

-1 x Satlink WS-6933 Satellite Finder

-1 x Silicone case

-1 x Charger

-1 x User Manual (English)
