Descriptions:
100%Brand New and High Quality

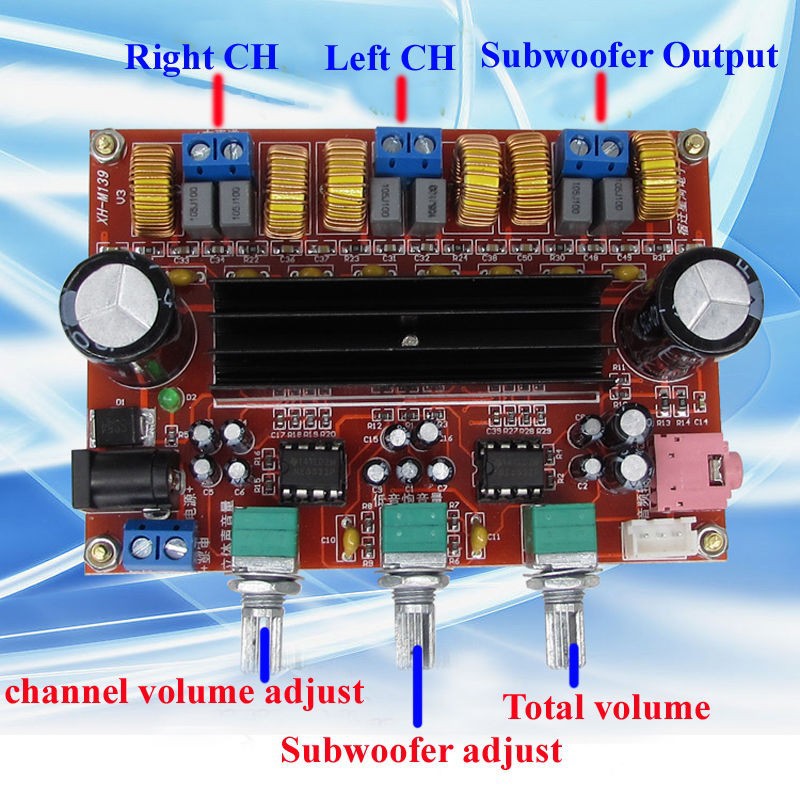

The amplifier board adopts two imported TPA3116D2 digital amplifier chip as the core，one piece as left and right channel power amplifier，other piece as pre-bridge briver with NE5532 subwoofer ，with a small ，high effeciency，high power characteristics.
Product name:2.1-channel audio amplifier
Chip Select:TPA3116D2
Supply voltage:DC 12-24V
Output power:50W*2+100W Subwoofer*1
Output Impedance:4-8ohm
Frequency range:14-100Khz
SNR:100db
Number of channels:3(left channel，right channel，subwoofer)
Switch frequency:1.2MHz
Size:100*70*30mm
Packaging
1pcs*DC12V-24V 2*50W+100W XH-M139 2.1 Channel digital Subwoofer Amplifier Board Chip TPA3116D2
';
- Unit Type:
- piece
- Package Weight:
- 0.140kg (0.31lb.)
- Package Size:
- 15cm x 15cm x 10cm (5.91in x 5.91in x 3.94in)
