Item Descriptions:

color:

black

Product introduction

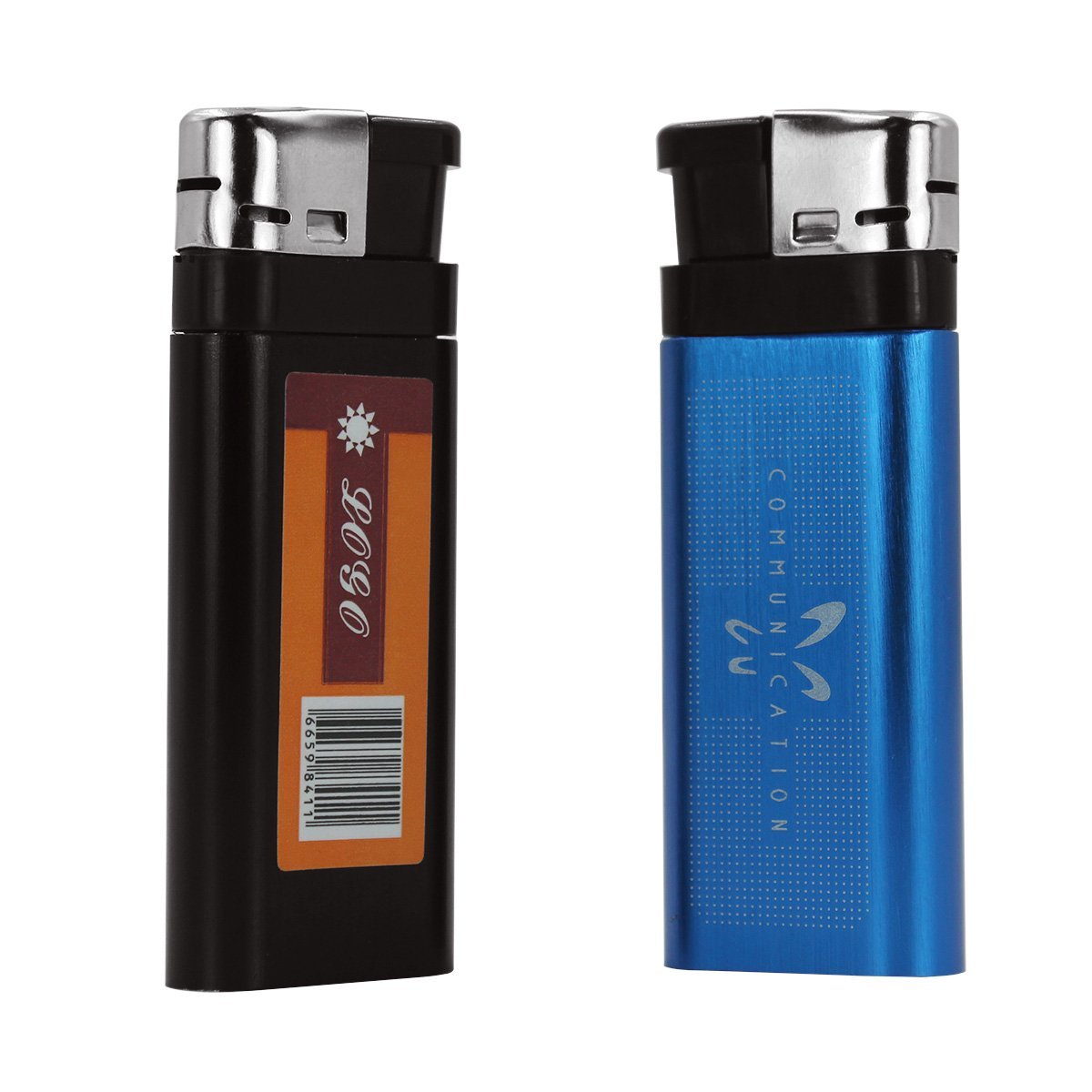

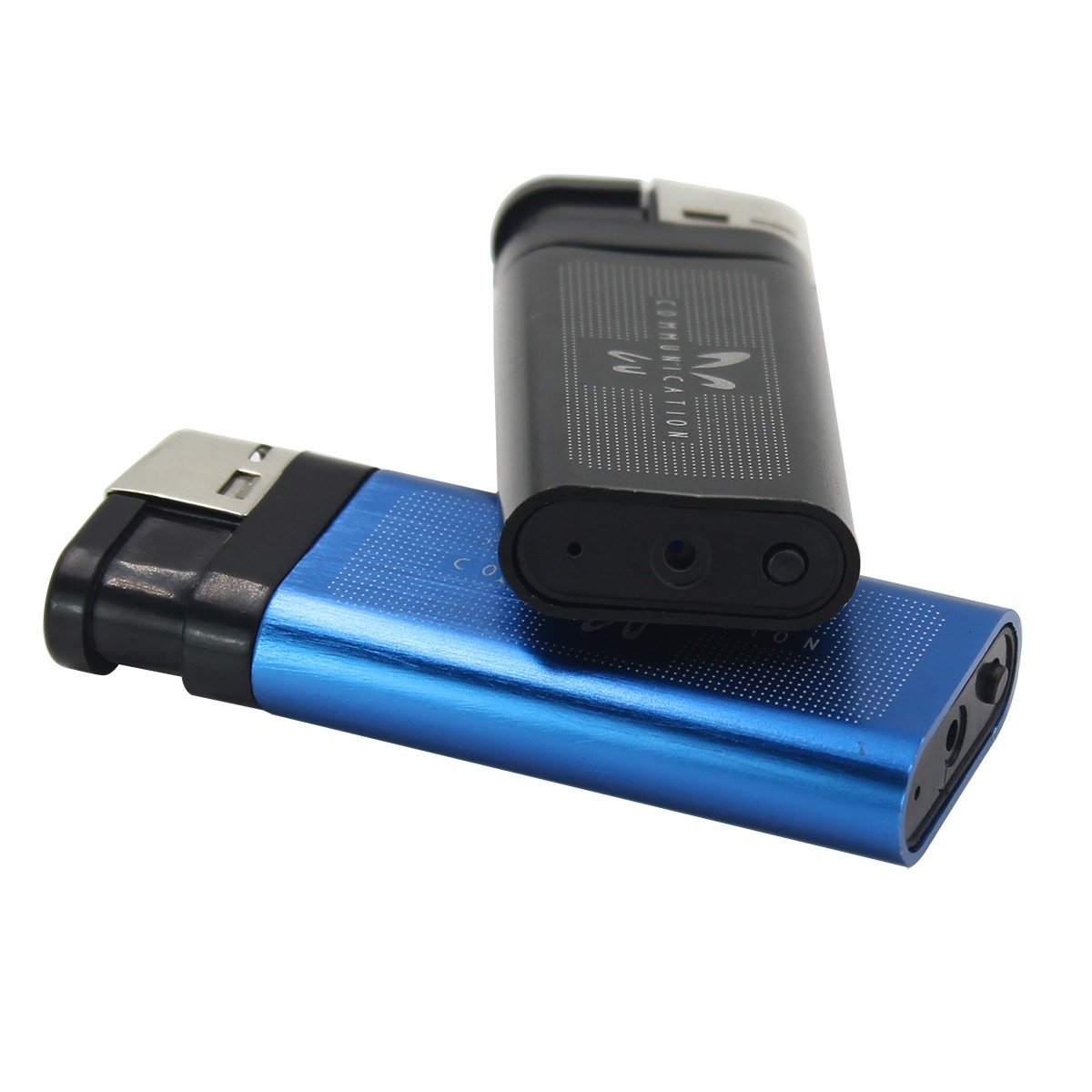

For lighter type video cameras, movie shooting, still image shooting and single recording are possible.

Although it is an ordinary writer, if you slide the cap, it is a USB memory.

Since we do not know almost all the shooting buttons and status LED lamps, only you who knows how to use can check the current status.

It is recommended when you want to take a movie secretly during an important meeting you can not overlook.

Built-in battery in the main unit, continuous shooting time of animation is about 1 hour.

You can take out movies and take still pictures quickly.

Product Specifications

[Movie file] 720 × 480pix AVI format [still image file] 1280 × 960 pixel JPG format

[Low subject illuminance] 1.0 Lux [Frame rate] 30 FPS

[Built-in microphone] High sensitivity microphone 【Interface】 MINI 5 pin USB

[Memory] microSD card compatible with 32GB ※ microSD card is not included in this product.

In case

[Continuous operation time] About ~ 80 minutes (continuous recording) [Continuous operation time] About ~ 130 minutes (continuous recording)

※ It is a standard of continuous operation at the initial full charge.

* The recording and recording time varies depending on the environment of the customer's use.

[Charging time] Approximately 90 to 120 minutes * It is a standard of battery performance at the time of initial full charge.

※ Operating time varies depending on the customer's environment · location of use.

In case

* Battery running time is the theoretical value and it does not guarantee operating time.

In case

【Supported OS】 Windows 10 / 8.1 / 8/7 / VISTA / XP / 2000 / Me (Operation verified) 【Battery】 lithium polymer rechargeable battery 【waterproof】 non-waterproof

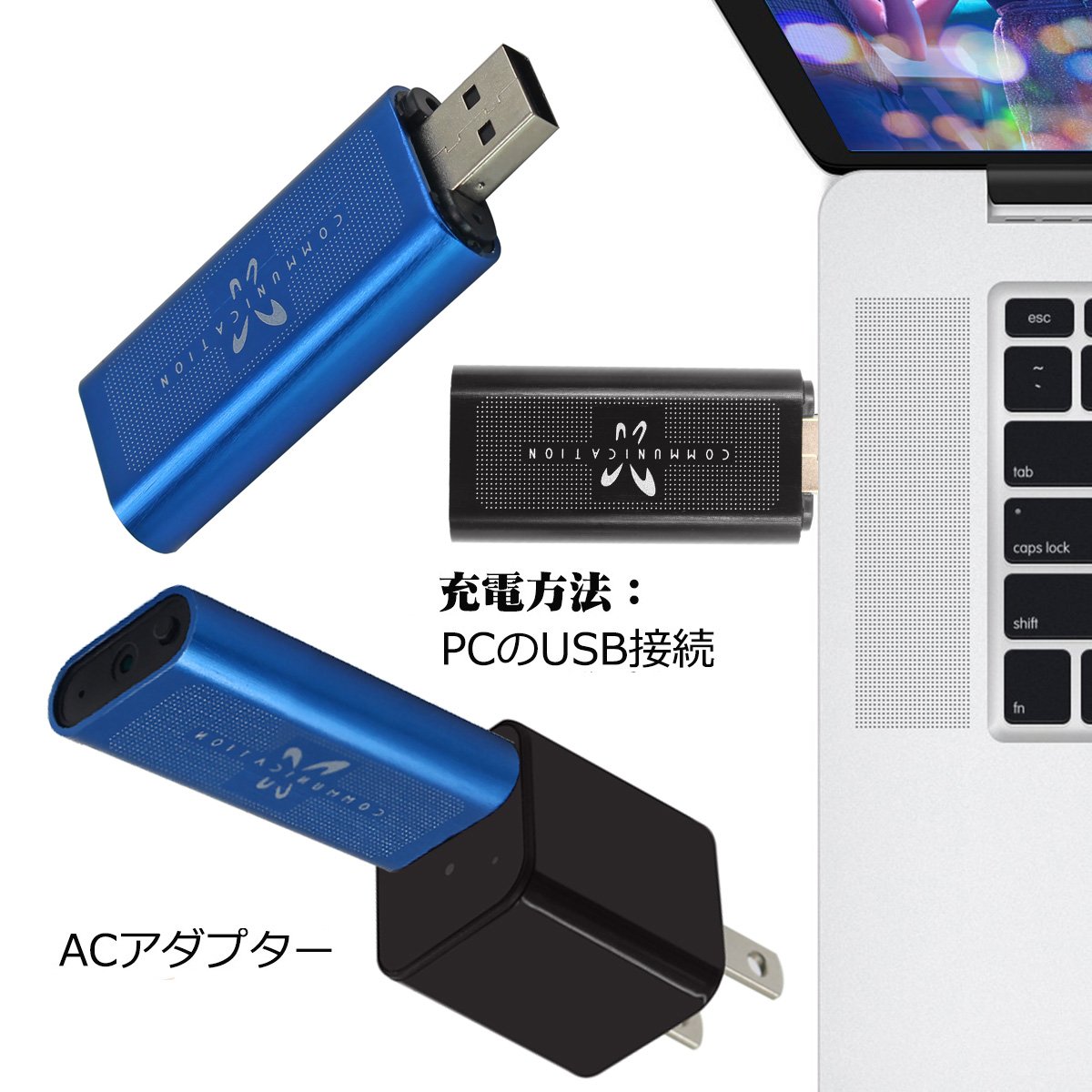

Charging method

1) With the power off, the product can be charged directly by connecting it directly to the personal computer with the USB terminal.

2) With the power off, the product itself can be charged directly by connecting the 5 V charger directly with the USB terminal.

Single recording:

If you press and hold the ON / OFF button for a long time and the red lamp lights up in the standby state, when you press and hold the ON / OFF button for a short time, after flashing the blue lamp twice, recording disappeared.

photography:

When the red lamp lights up in the standby state,

Mode button

Short press

, There was one vibration, and when the red lamp flashes once, I took a picture.

Recording:

When the red lamp lights up in the standby state,

Press and hold mode button

, Twice vibrations, recording can start when the red lamp flashes twice and then disappears.

【About reproduction】

Whether switch ON standby or switched off, when connected to a PC, it can be used as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted in the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

USB equipment is recognized and data can be transmitted.

Presentation:

a. If you can not recognize the PC after connecting the device to the PC or do not pop up the mobile icon even after 30 seconds, reset this device and insert it again.

b Recommend that you use the microSD card reader to directly read and play the video file.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

If c.microSD is not recognized, format it.

Date setting:

METHOD: Connect to the PC with a USB cable and open the file "time.txt" with "DEVICE AND DRIVE", set the time in the document as "2016.10.10 00: 00: 00" like this

Please, please complete the set and start the camera.

reset:

This device can be reset to this device if it becomes freeze, button invalid, it can not be used normally, and so on.

Please insert it in the reset hole with a kind of pin, reset it if the indication lamp is annihilated.

After resetting, it can be used normally.

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting / Still picture shooting / Vibrating function / Recording lamp off Model / Single voice recording / One push easy operation / WEB camera / High sound quality microphone / Date change function.
• 【Realistic appearance】 Movie shooting with a lighter type camera will be possible at the highest level still picture 1280 * 960 pix, movie resolution 720 × 480pix 30 fps.
• 【Looks like an ordinary writer】 It is almost impossible to know the shooting button and the status LED lamp, so only you know the usage status can check the current status. Since it is a small crime prevention hidden camera, you can carry it anywhere, change angle
• Super easy.
• [Single recording function] Single recording function installed.
• It is possible to record not only movies and pictures but also audio only as well as a voice recorder. All of the video & camera & recording is realized with this product.
• 【MicroSD model】 microSD supports up to 32GB (microSD card is not attached, please prepare separately), 300mAh rechargeable battery, so convenient as minutes of negotiations etc for a long time.

Product information:

Shipping Weight: 99 g

Package Dimensions: 4.80 x 9.19 x 11.40 cm
