1pcs 1 MHz ~ 1.1 GHz Frequency Counter Tester Measurement For Ham Radio

$`5NEE{A)_D2H8_[A([$~%}8$

Specification:

1 MHz ~ 10 MHz: superior 60mVpp

10 MHz ~ 60 MHz: superior 60mVpp

60 MHz ~ 1.1 GHz: not tested

3) . Frequency reference
5032 package 13.000 MHz Warming voltage controlled crystal oscillator ( VC - TCXO) ， frequency stability is ± 2.5 ppm

IF settings
The minimum frequency is adjustable in steps of 100 Hz， frequency range 0 ~ 999.9999 MHz， can be set to plus or minus IF mode

working voltage

DC input: DC 9V ~ 12V
working current

The backlight is enabled: ≤ 55 mA backlight disabling: ≤ 55 mA
Display

maximum of 8 digit display
physical dimensions

Length * width * height: 58mm × 32mm × 27mm

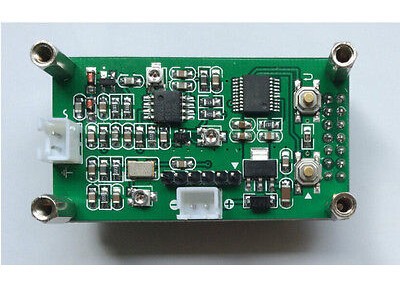

Board interface

RF INPUT ( measuring signal input ): XH2.54-2P side outlet port

ICSP INPUT (MCU programming interface ): XH2.54-6P pins

POWER INPUT ( Power Interface ): XH2.54-2P side outlet port
package: 1pc module
