Product Description

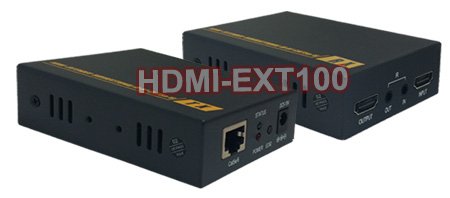

HDMI DVI Over CAT5 CAT6 IR Remote Extender Kit
This low-cost HDMI extender kit uses CAT-5 or CAT-6 cables for transmitting HDMI signal up to 50 meters or 160 feet.

This HDMI extender kit supports IR remote extension along with HDMI feeds at the same time. It could also be used as a stand alone IR remote over Cat5/6 kit.

No signal loss guaranteed and maintain the same sharp and crisp clear images running through Ethernet cables.

Easy Installation

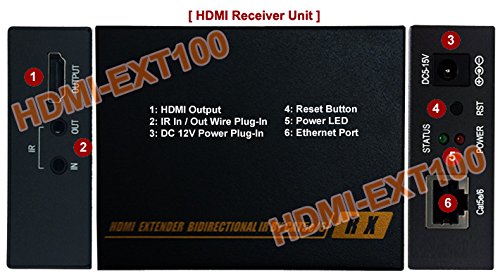

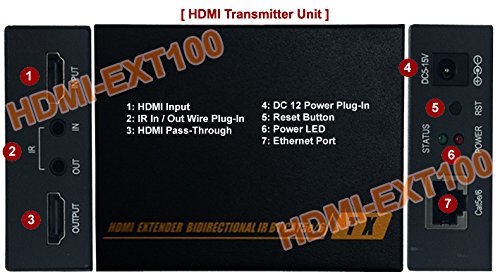

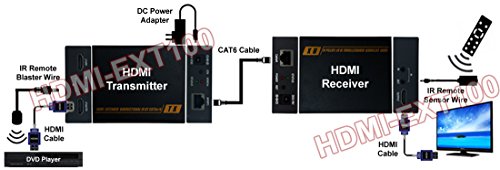

The installation is very easy. The HDMI transmitter unit connected to the HDMI video source. The paired HDMI receiver module placed at the receiving equipment such as LCD TV, LCD projector and so on.

At the end, the transmitter and receiver will be linked using standard Cat5e or Cat6 cable so the installation is all done.

Active HDMI Equalizer Amplifier Circuitry
Both the transmitter and receiver units have active HDMI equalizer and booster circuitry built in to ensure error free signal transmission.

The maximum effective transmission range will be achieved by using CAT-6 cable. The effective range will vary based upon the HDMI signal resolution:

• Cat5e Cable Length/Resolution:
  • 45m/150FT for 1080p or 1920x1080 pixels
  • 50m/160FT for 1080i, 720p, 1280x720, 1600x1200, etc.
  • 40m/130FT for 480p, 800x600, 102x768, etc.
• Cat6 Cable Length/Resolution:
  • 50m/160FT for 1080p or 1920x1080 pixels
  • 60m/200FT for 1080i, 720p, 1280x720, 1600x1200, etc.
  • 70m/230FT for 480p, 800x600, 102x768, etc.

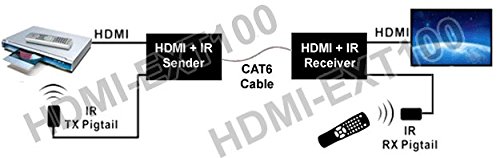

IR Remote Over Cat5 Cat6 Extension
This HDMI extender kit also supports IR remote extension along with HDMI feed at the same time or used as a stand alone IR remote over Cat5/6 kit.
