Item Descriptions:

Product introduction

● Can be driven with AA batteries ● Built-in high quality sound stereo condenser microphone ● User interface allowing intuitive operation ● Lightweight design that can be carried in the case of an instrument ● Chromatic tuner, built-in metronome ● Two external

Input terminal ● Recording on SD / SDHC card ● High-speed data transfer with USB 2.0 ● UNDO / REDO function ● Track editing function ● Equipped with a tripod hole that can be mounted on a camera tripod (DP-006) ● Phantom power supply available

Two DP-008EX inputs (DP-008EX) ● Equipped with input effects (DP-008EX) ● Mastering effect (DP-008EX) ● Easy mastering function (Auto Analysis Mastering)

-008 EX)

From Amazon

High sound quality built-in microphone at any time, multiple recording, easy transfer to DAW.

A sketch pad of music whose choice of recording place is not a necessity of a song writer.

<Start recording casually anytime>

■ Battery-drivable multi-track recorder

In music production, multitrack recording that can be recorded and adjusted for each instrument is essential, but many multitrack music production equipment requires AC power, so it can not be taken out and used.

Meanwhile, the idea of ​​a song often comes down when you are not preparing, such as outdoors or outing.

Since driving with four AA batteries is realized, even if there is no AC power source, you can record the chorus arrangement that came down to the head.

In addition, connecting the optional external battery pack BP - 6 AA makes it possible to further extend the driving time outdoors.

Built-in high-quality stereo condenser microphone that can record without preparations

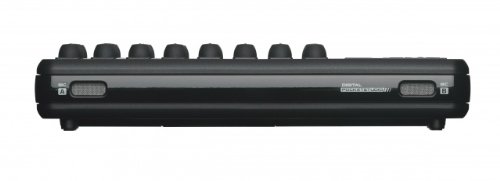

Two omnidirectional condenser microphones are mounted on the front of the main unit.

It is possible to record instruments that require microphones, such as vocals and acoustic guitar at any time.

Tuning was carried out by elaborate listening evaluation of the mounted condenser microphone.

We introduced the expertise of developing a linear PCM recorder with high evaluation in the market, and completed the built-in microphone with high sound quality.

Since it is an omnidirectional microphone, it can be installed more easily than a unidirectional microphone, and it is possible to record high quality sound with simple setting.

Intuitive operation cassette User interface like MTR

We chose to use the sketchpad as a target, and we chose not to use unused features.

As a result, it realizes simplicity like cassette MTR, so it is possible to start recording smoothly anytime, anywhere, when melody comes down.

Each track has its own LEVEL / PAN knob.

In addition to this, a knob for manipulating the send level to the reverb effect which is frequently used is added.

It is possible to adjust each track without operating on the screen.

Lightweight design that can be carried in a case of an instrument

Even devices that do not require power supply will hesitate to carry all the time unless it is light.

"DP-008EX" realizes a lightweight, compact design of 610 g, even though it has many dedicated operators for intuitive operation.

You can put it in the guitar case or bag at any time.

■ Chromatic tuner, built-in metronome

Built-in chromatic tuner and metronome to reduce loads when carrying.

Ready for one set.

The metronome pronunciation can be selected only during recording playback or recording, and the tempo can be set in a wide range from 20 to 250.

The volume control of the metronome is also possible.

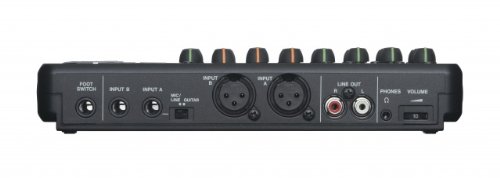

■ Two input terminals to which external microphones and electric acoustic guitar can be connected

In addition to vocals and acoustic guitars, two input jacks by a phone jack are also equipped to accommodate line instruments and electric acoustic guitars.

You can also connect portable devices such as portable music players as instruments.

* Conversion cable to standard phone jack is required depending on instruments and equipment

<Auxiliary function that expands the range of production>

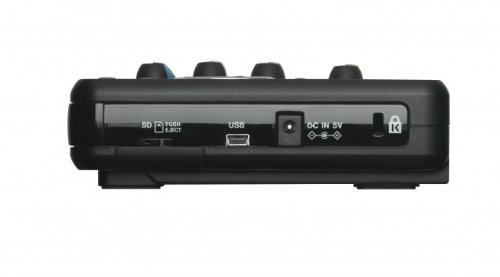

■ Recording on SD / SDHC card, High speed data transfer with USB 2.0

SD / SDHC card with high versatility is adopted as a recording medium.

Availability is also outstanding by adopting commonly used media in general.

It can be used according to the environment such as dividing SD card for each song like a cassette MTR, leaving one large capacity card attached.

Moreover, it can connect directly with the personal computer via USB 2.0.

It is possible to transfer the recorded idea to the personal computer at high speed even with the SD card attached.

2GB SD card is attached.

■ UNDO / REDO function that allows you to overlap ideas freely

While MTR of destruction editing is abundant, TASCAM 's PORTASTUDIO / POCKETSTUDIO series adopt a nondestructive editing method, so free undo is possible.

If there is a mistake in performance, you can easily return to the previous state, so you can record one after another without concern for mistakes.

In addition, since it has the UNDO HISTORY (UNDO history) function, it is possible to designate the state before several steps and restore it.

Without concern for mistakes, we can actively and repeatedly draw ideas.

■ File import / export in WAV format

It supports import (import) and export (export) of WAV format files.

Import karaoke files produced with DAW and record various types of melody.

You can use it for exporting the best take and pasting it on the DAW.

It supports both monaural and stereo format files.

■ Track editing function for simple editing, such as cutting silent parts

Track editing function that can be used for cutting silent parts and duplicating tracks etc. is installed.

The quality of the song is greatly improved with a little editing, such as cutting noise at the beginning of the song.

<DP-008EX capable of responding to advanced production>

■ Phantom Two power supply capable XLR inputs

Since it is possible to supply phantom power even in the battery drive state, it is possible to use your favorite condenser microphone at any time.

※ Please note that the battery operating time will be shorter than when the phantom is off.

■ Input effect that can record and record sound

The input effect for recording with the input sound conditioned, such as stretching the high region of the dynamic microphone and emphasizing the outline of the vocal, is carried.

Besides equalizer, dynamics effects (compressor, de-esser, exciter) are also installed.

It is possible to record vocals and basses with a compressor.

■ 2 track band shearing equalizer on each track

Even in the demo sound production of the song, it will be a more attractive demo song by finishing it as a good sound even a little.

Since 2 equal band equalizers are mounted on all 8 tracks, it is possible to adjust the sound quality according to the track.

After recording you can optimize the positional relationship with other tracks.

HI can be set from 1.7 kHz to 18 kHz, LOW can be set from 32 Hz to 1.6 kHz, and it can be adjusted within the range of +/- 12 dB.

■ Reverb effect with beautiful echoing of acoustic and vocal

Vocals and acoustic guitar, etc. Reverb effect that is convenient for processing of tracks that sound more attractive by sounds.

You can select optimum reverb from 6 types.

When reverb is applied, it is easy operation only by turning the dedicated knob of each track.

It is possible to select the type from Hall 1/2, Room, Studio, Plate 1/2, and it is possible to adjust the reverb time and master level.

You can set the reverb according to the song.

■ Auto Analysis Mastering function which can easily create a master file with sound pressure feeling

Equipped with a convenient Auto Analysis Mastering function when you do not know the mastering method or want to send a demonstration in the middle.

By simply selecting NATURAL or MAXIMUM, it is possible to automatically detect and set the optimum setting value, and create a master file with speedy sound pressure feeling.

function

· 8 monaural tracks

· 2 track simultaneous recording / 8 track simultaneous playback

· Two XLR inputs capable of supplying phantom power

· Built-in microphone sensitivity is switched between LOW / HIGH 2 steps

· RCA stereo line output

· Independent LEVEL / PAN / REVERB knob for each track

- Input effect that can record and record with sound

· 2 tracks shelving equalizer on each track

· Reverb effect with beautiful sound of acoustic and vocal

- Mastering effect that enhances the quality of the stereo master

· Easy mastering function (Auto Analysis Mastering) that allows easy creation of master sound file with sound pressure feeling

· Foot switch terminal with polarity switchable

· 20 mW / ch stereo mini jack headphone output

· 128 x 64 dot matrix LCD with backlight

· Up to 6.5 hours continuous operation with 4 AA batteries (eneloop use, recording)

· Recording in 16 bit / 44.1 kHz format

· Stereo master track equipment

· SD / SDHC card (up to 32 GB) is adopted for recording media

· Omnidirectional stereo condenser microphone built-in

· INPUT A corresponds to direct input of guitar

· AC power operation by optional AC adapter PS-P520

- It can operate for an additional long time by optional external battery pack BP - 6 AA

· Direct locate function by jog wheel

· Repeat playback between IN and OUT points

· Track bounce function to group tracks

· UNDO / REDO (UNDO HISTORY) function

· Chromatic tuner / metronome function

· High-speed file transfer with PC using USB 2.0

· Backing up and restoring songs

· Track WAV file import / export (stereo / monaural)

· WAV export of stereo master file

· 2 GB SD card included

Features:

• Please enter model number Confirm this is compatible:

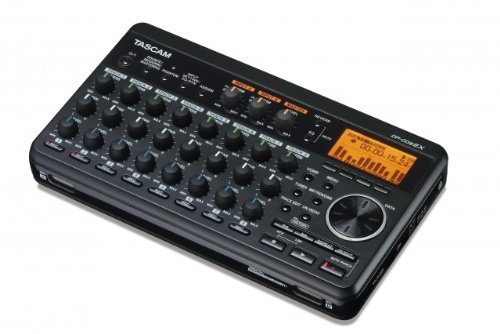

• DIGITAL POCKETSTUDIO "DP-008EX" is a multitrack recorder capable of battery operation with 8 tracks.
• Easy operation like cassette MTR is realized.
• Preparation for recording is completed in just 2 steps after turning on the power including preparation of the microphone.
• Each track is equipped with a dedicated operating element.
• Because it adopts the input monitor, it is possible to record the melody that came down quickly without feeling the stress that you can not hear the sound when you want to record.
• Since POCKETSTUDIO series adopts nondestructive editing, it is possible to easily return to the state before operation by UNDO / REDO.
• You can record and overlap melodies you came up with without worrying about mistakes.
• It is lightweight and compact design, so it can be carried anytime, so it is also ideal as a music sketch pad for songwriter to go out.

Product information:

Shipping Weight: 1079 g

Package Dimensions: 9.60 x 17.70 x 30.51 cm
