Item Descriptions:

Product introduction

The SE - U 55 SX 2 is equipped with USB / digital input / output / analog input / output terminals, plays music data in the PC with high quality, as well as an audio interface that can import music assets such as records, cassettes and MD into the PC

is.

Designed beyond the boundaries of PC audio, such as built-in "VLSC" circuit that Onkyo introduced digital and analog technology cultivated with high-end audio and elimination of pulse noise and clock circuit that dramatically reduces jitter value

We are applying.

It adopts a self-power method which can also use with stable operation and PC less, digital connection of digital TV and game machine is also possible.

From Amazon

High quality reproduction of digital music in PC

If you connect the PC and the SE - U 55 SX II via USB, it can be processed with audio dedicated circuit without being influenced by noise inside the PC and can be enjoyed with the high quality sound which can not be thought of as the PC environment from the connected powered speaker etc

I will.

High quality recording of music assets such as records, cassettes, MD to PC

By saving records, cassettes, MD etc to the PC digitally, you can save for a long time with suppressed aged deterioration.

You can transfer music libraries saved on your PC to digital audio players and enjoy them.

With PC less, connect digital equipment, enjoy high quality sound as single item DAC

Connected to equipment with digital output such as digital TV and CD player.

High-quality sound reproduction can be realized by high performance D / A converter and original circuit "VLSC (R)".

With PC less, connect various music equipments, use it as audio selector

Adopting a self-powered method that feeds power from an AC adapter.

With PC less, you can use it as an audio selector by connecting to a digital TV, CD player, etc.

"High-performance D / A converter" that converts digital sound source in PC into high-quality analogue is installed

In "DAC" which converts digital sound source to analog sound source, PCM1796 made by "Bar Brown" which is highly evaluated by the good quality and adopted also for high-end AV center is installed.

The signal-to-noise ratio realized 115 dB (20 kHz AES 17 LPF, A-Weighted) over single item CD player.

It is possible to realistically reproduce even the fine nuances of the sound and convert the digital sound source to a beautiful analog waveform.

High precision "clock circuit" which greatly reduces jitter value built-in

Clock oscillator with highly accurate crystal oscillator with oscillation frequency deviation ± 10 PPM, which dramatically reduces jitter (waveform fluctuation) value with about 5 times higher accuracy than usual ± 50 PPM (one part of one)

Circuit "built-in.

As a result, noise generation due to time lag of signal transfer caused by synchronizing with PC clock (crystal oscillator) and jitter value with low accuracy are improved.

It dramatically improves the real existence of music and the space depiction ability, and realizes high-quality sound reproduction comparable with ordinary audio equipment.

Onkyo's patented technology "VLSC (R)" circuit is installed to achieve high-level playback quality

"VLSC (R)" circuit is a revolutionary circuit that greatly suppresses pulse-like digital noise generated during D / A conversion.

By realizing the generation of a smooth music signal which dramatically reduced the pulse noise which could not be realized with the conventional low pass filter, the reproduction quality of the digital sound source including the compressed sound source has been dramatically improved.

In "SE-U 55 SX II", the left and right independent and full symmetrical arrangement of the entire circuit, dedicated independent power supply, high performance output coupling capacitor are mounted, and the analog reproduction quality has been improved.

Supports HD high-quality sound source "24bit / 96kHz" signal

Corresponds to 24bit / 96kHz music signal which has expressive power far exceeding the amount of information of CD (16bit / 44.1kHz) with both digital input and output.

Moreover, by using a high-performance sound chip for the A / D converter, it achieves high specification of 114 dB SN ratio.

In addition to vibrant vocals and deep instruments' sounds, detailed information such as the breathing of artists and the sense of air in the recording studio is reproduced without limit.

Connection with PC, as well as a variety of input / output terminals that can also be connected to audio equipment

Equipped with a USB terminal, 3 digital inputs / 2 outputs, 1 analog input and 1 output.

Moreover, gold plating treatment is applied to analog input / output and coaxial input (COAXIAL IN) to prevent aged deterioration.

In addition, three digital inputs are equipped with a "digital input auto selector" function that automatically detects the digital input signal and switches the input.

It is possible to connect and play back PC's digital sound source with powered speaker etc. with high quality sound without deterioration or transfer / save analog sound source such as cassette which we saved until now to PC.

Regardless of digital / analog, you can exchange all music data freely.

* When copying protected data, you can not record data when SCMS (Serial Copy Management System) compatible equipment is digitally input.

* It is not possible to record signals from the digital output of SE-U 55 SX II.

Adopted "self power system" which can be used both as an audio selector and as a single product DAC

Adopts a complete self power feed method from an AC adapter that does not rely on power supply from PC.

Even if the PC is not running, it can be used as an "audio selector" by a combination of audio devices,

It can also be used as a "single item DAC" to convert high-quality analog sound via this unit, such as a CD player with digital output.

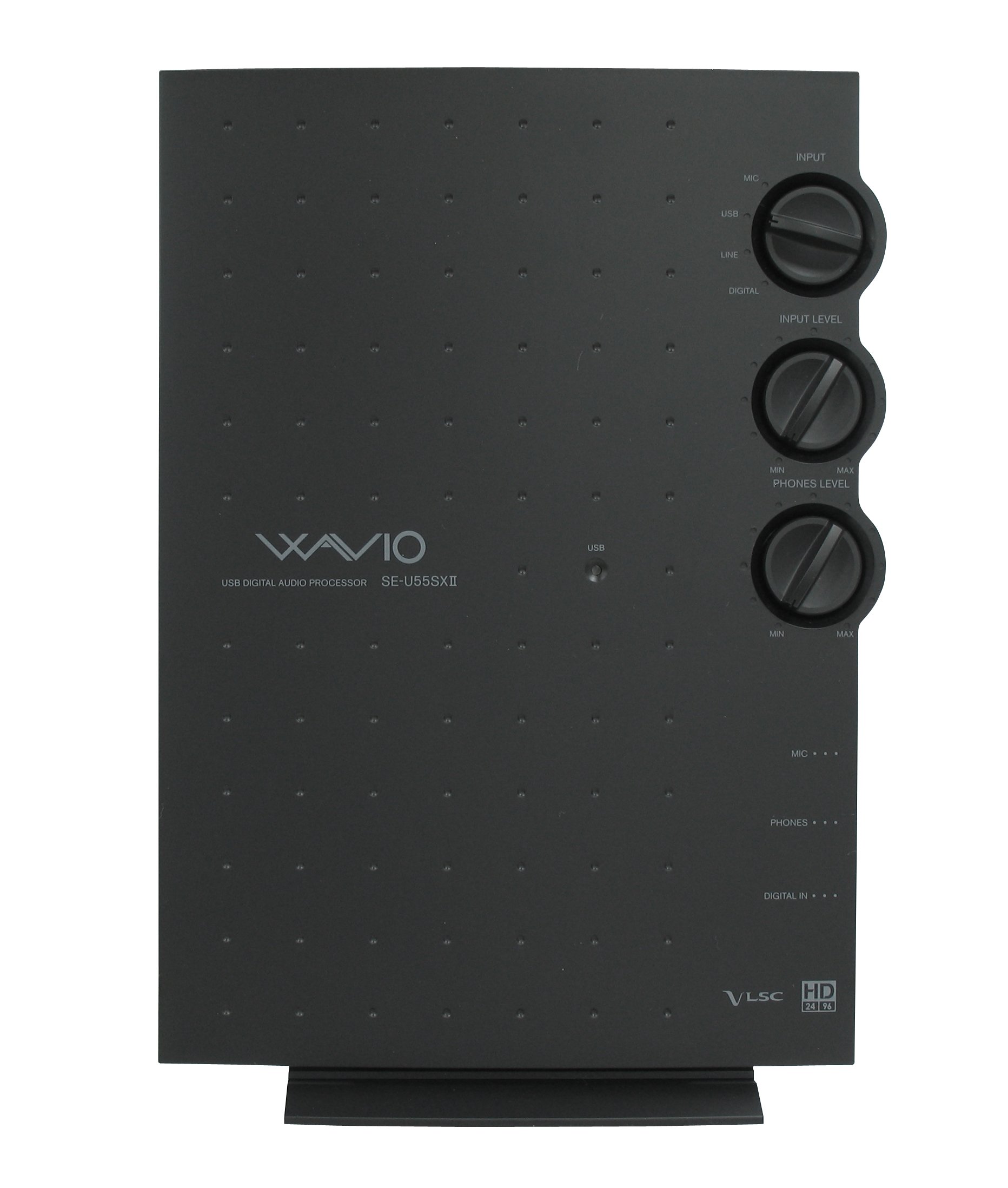

Design that combines usability and beauty

Designed by a designer of audio equipment, pursue a form with a sense of luxury and presence.

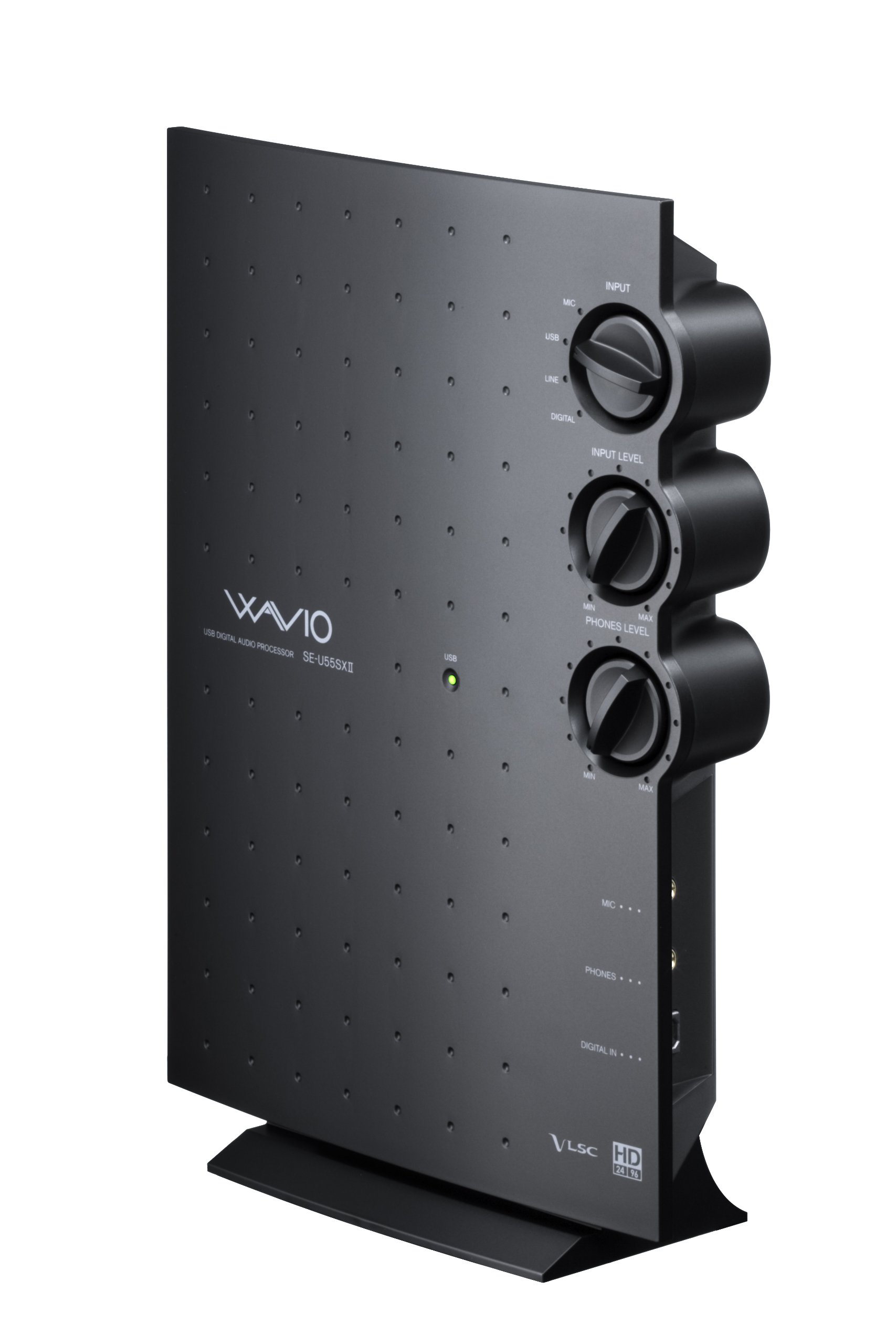

It corresponds to a vertically placed and horizontally placed with a slim body that can choose the installation location.

Easy to use large dial

Volume and selector adopted large dial type knob.

It is improving operability.

Bundle recording / editing software 'DigiOnSound 6 L .E. For ONKYO'

DigiOnSound 6 L. E. for ONKYO is a recording / editing software compatible with various file formats including MP3, WAVE, WMA 9, AAC, Ogg Vorbis.

Easy-to-understand Japanese user interface makes it easy to rip, record, and edit music CDs.

Moreover, it is a domestic music software equipped with an effect launcher function which can easily select various effects such as a function that can remove the noise of a record and a cassette.

It is best for preserving precious analog sound source.

Furthermore, it supports non-destructive editing which can work while checking editing status.

Features:

• Please enter model number Confirm this is compatible:
• Digital / analog Connecting all music data, USB digital audio processor that reproduces the original sound field feeling of sound
• Supported OS: Windows 7 (32 bits / 64 bits), Vista SP 2 or later (32 bits), XP SP 3 or later (32 bits)
• Input / output terminals: LINE IN × 1 (stereo RCA), LINE OUT × 1 (stereo RCA), DIGITAL IN × 3 (light 2, coaxial 1), DIGITAL OUT × 2 (light 2), USB port × 1 (type B)
• , Microphone terminal × 1 (3.5 mm / mono), headphone terminal × 1 (3.5 mm / stereo)
• SN ratio: 115 dB (USB → LINE OUT)
• Frequency response: 0.3 Hz to 44 kHz (LINE OUT)

Product information:

Shipping Weight: 1514 g

Package Dimensions: 10.39 x 21.41 x 35.99 cm
