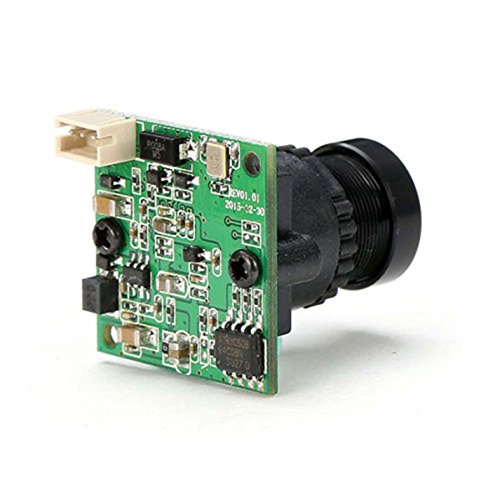

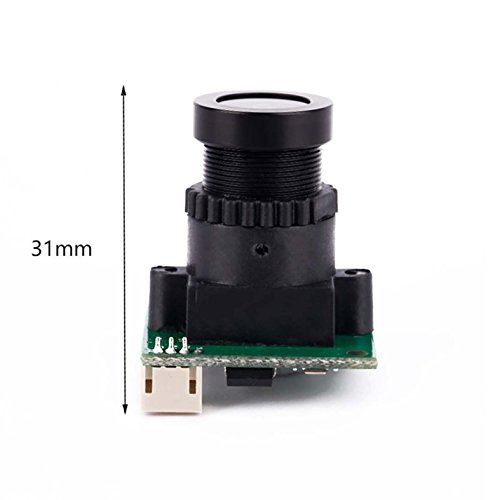

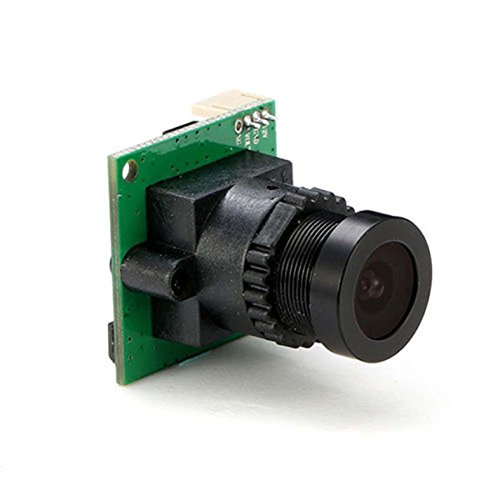

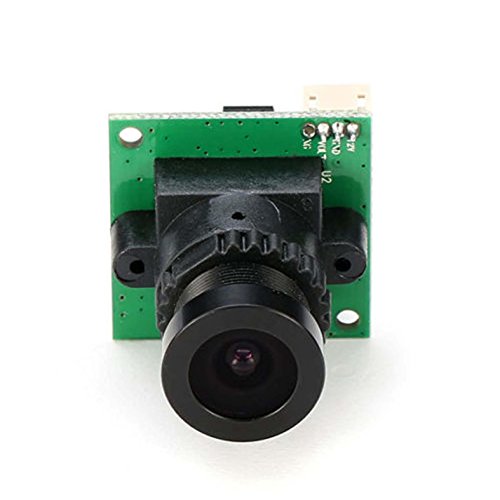

powerday700TVL 1/4 CMOS FPV Camera　NTSC 2.8mm Lens FPV Camera for Mini Drone QAV180/QAV210/QAV250/ QAV270/QAV280 FPV Quadcopter








Product Description


-Use for Mini Drone QAV180/QAV210/QAV250/ AV270/QAV280 FPV quadcopter, also can use as Security Camera.
-Item Name: 700TVL 1/3 CMOS FPV Camera
-Type: CMOS
-Resolution (horizontal center): 700TVL
-Total pixels: NTSC: 1020H × 508V (52 million pixels)
-Effective Pixels: NTSC: 976H × 494V (48 million pixels)
-Signal System: PAL / NTSC
-Video Output: 1.0Vp-p / 75Ω BNC
-AGC: 0.25 / 0.50 / 0.75 / 1.00 four levels can be adjusted to up to 55dB
-White Balance: On / Off selectable
-Exposure mode: Electronic exposure
-Electronic Shutter: 1/50 (1/60) - 100000 seconds
-Gamma Correction: 0.45 / 1.0
-Synchronization: Internal synchronization
-Lens: standard 2.8mm lens
-Working voltage: DC12V (wide voltage, found 7.5-13V can work properly)
-Operating Current: 70mA (low power)
-Working temperature: -20 ℃ ~+60 ℃
-Humidity: 0% to 98%
-Weight: 9.5g

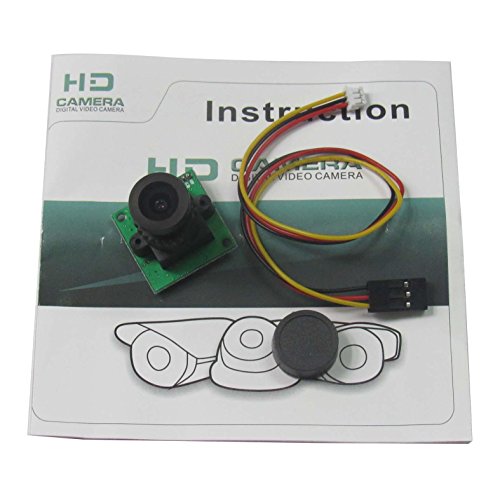

-Package Includes:
-1 x 700TVL 1/4 CMOS FPV Camera　PAL
-1 x Cable

Feature

for Mini Drone QAV180/QAV210/QAV250/ QAV270/QAV280 FPV Quadcopter
700TVL 1/4 CMOS FPV Camera NTSC
Total pixels: NTSC: 1020H × 508V (52 million pixels)
Effective Pixels: NTSC: 976H × 494V (48 million pixels)
Video Output: 1.0Vp-p / 75Ω BNC
Brand : powerday
EAN : 0712096461466
Package Dimensions(LxWxH) : 10x7x6cm ; 23 g
