Studio : Alston

Publisher : Alston

Product Description

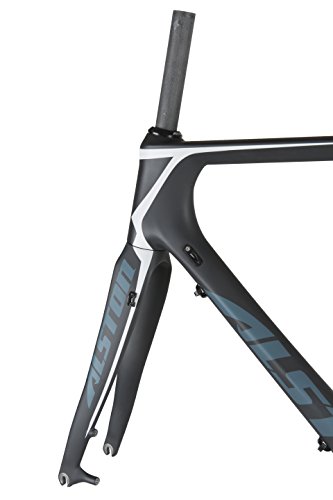

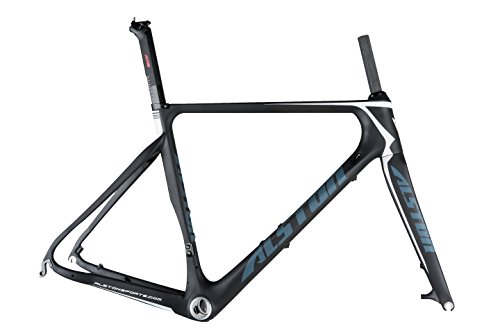

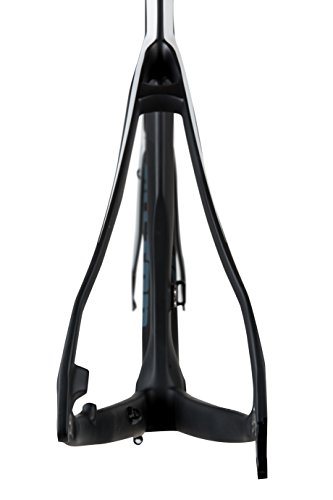

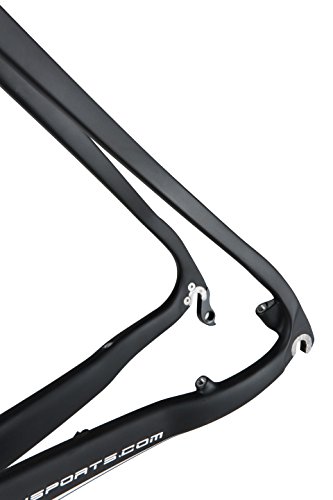

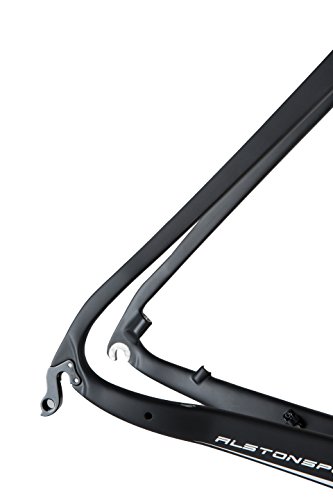

Product: Alston Carbon Fiber Road Bike 700C Disc Frame with Seat Post and Fork UD Grey Matt
Production Description:
Material:Full Carbon Fiber Toray T700
Weave:UD Matt
Wheel Size: 700C
Available Sizes:56

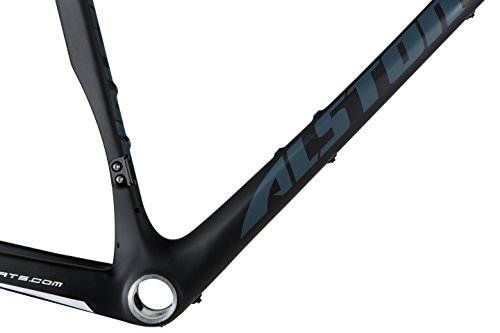

BB Type: PF30
Brake Type:disc break
Rear axle Spacing:135mm

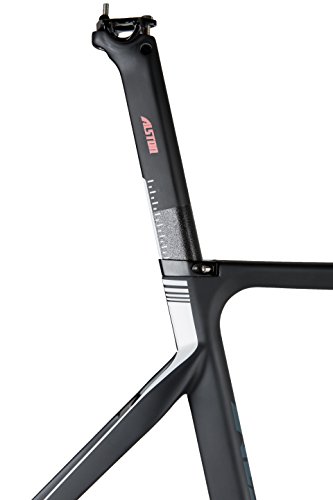

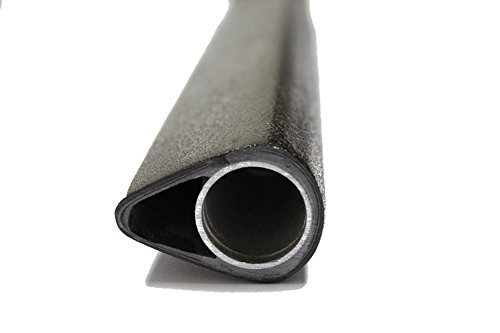

Seat post Size:Aero shape
Headset:1-1/8" 1-1/2"
Front axle(fork):￠28.6*￠23.6*300*1-1/2"*1-1/8"*355
Weight(53mm):frame 1100g,fork 420g,Seatpost 320mm:240g
Package included:
frame fork seatpost headset seatpost clamp
Geometry
Size:56cm
Top Tube Length (effective):560mm
Seat Tube Length: 531mm
Chain Stay (actual):410mm
Seat Tube Angle:73.5°
Bottom Bracket Drop:68
Head Tube Length: 147mm
Head Tube Angle:73.25°
Fork Offset: 43mm
Wheelbase: 990.5mm
BB to Front Wheel: 590.7mm
Alston carbon fiber Tech has 20 years production experiences in carbon fiber field and are the specialist in producing carbon fiber and carbon fiber related products.
Alston carbon fiber owns the complete production line from the carbon fiber filament to final product.
The carbon fiber we apply are weaving at the same factory with the high quality filament imported from Japan Toray.
Its design makes the handlebar and fork adjust in a perfect position
We offer 1 year warranty.
Alston carbon fiber bike products are great for all bike fans.
