Product Description

INTRODUCTION

Not just has the motor driver, Romeo is also designed to have extra power for servos which need more current. Romeo is also featured with DFRobot's standard 3Pin-out designed and compatible with Gravity series sensors and actuators. Hundreds of sensors are now plug-play with Romeo.

This is the first member in Romeo family that is born in 2009. It is not only the very first Arduino Robot Controller, but also the first Arduino-derived board in the market. The current version of Romeo is based on Arduino Uno. It has built in 2x2A DC motor drivers and socket for bluetooth / APC220 communications. The integrated io sensor pinout allows it connect hundreds of different Gravity compatible sensors and modules. It has servo connector which is a plug&play. It is the ideal controller to build your own robot.

Specification

DC Supply: USB Powered or External 7V~12V DC
DC Output: 5V /3.3V DC and External Power Output

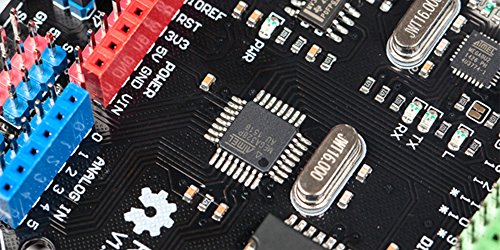

Microcontroller: Atmega328
Bootloader: Arduino Uno
Compatible with the Arduino Uno pin mapping
8 Channels 10-bit Analog I/O

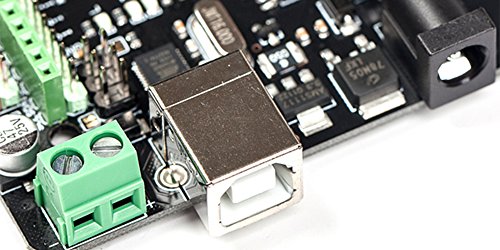

USB interface
5 key inputs
Auto sensing/switching power input
ICSP header for direct program download
Serial Interface TTL Level
Support Male and Female Pin Header
Integrated sockets for APC220 RF Module and DF-Bluetooth Module
Three I2C Interface Pin Sets (two 90°pin headers)
Two way Motor Driver with 2A maximum current

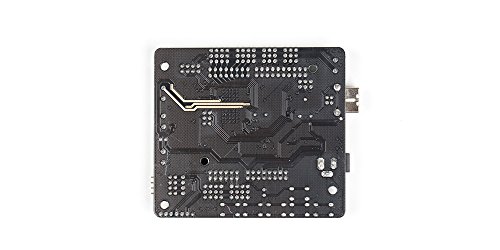

Gold plating pcb board
Size: 3.54"x3.15"x0.55"
Weight: 60 g

Shipping List

Romeo-All in one Controller x1

Feature

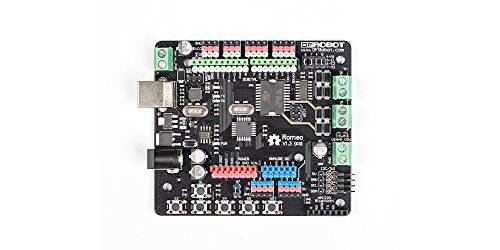

Romeo is an All-in-One Arduino compatible microcontroller especially designed for robotics applications from DFRobot
Romeo is a robot control board based on Arduino Uno. It has built in 2x2A DC motor drivers and socket for bluetooth / APC220 communications. The integrated sensor shield allows it connect hundreds of different sensors.
It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your Arduino-comaptible shields
The integrated 2 way DC motor driver and wireless socket allows you to start your project immediatly without the need for an additional motor driver or wirless shield
Brand : DFROBOT
Item model num : DFR0004
MPN(PartNumber) : DFR0004
EAN : 0752503167789
Product Dimensions(LxWxH) : 17x2x12cm ; 118 g
Package Dimensions(LxWxH) : 14x11x3cm ; 118 g
