Item Descriptions:

size:

3/4 inch

[Venturi type fertilizer ejector device]

1, When using, the amount of water will suck up the fertilizer by the water drop through the pipe (Venturi part) from "small" to "large" from "large" to "small".

2, Application: greenhouse, other small area spraying water etc.

【Characteristic】

● Three-dimensional one-time molding, rational structure

● Easy to connect with the entrance and exit by using external threads

● Easy connection with injection device kit

● If the fertilizer concentration is stable, no additional power is needed, saving you time!

● Siphon principle, easy to inhale a variety of liquid fertilizers, inject into irrigation pipes, irrigate water and fertilizer equally to crops.

● Engineered made of rust and resistant to most chemical substances ● High efficiency · Compact differential pressure injection device

● Economical and low cost

● Available on 3/4 "BSP entrance / exit connection

Product content: fertilizer injector, water pipe, flow regulator, filter

【specification】

Entrance / Exit Thread: 3/4 ''

Material: POM

Size: 139 * 72 * 33 mm

Tube length: Appr. 2.26 m

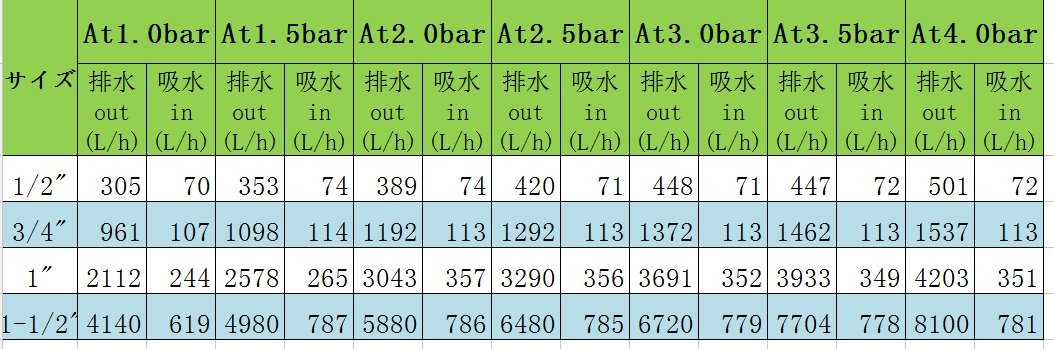

Flow range: 0.65 - 2.42 m 3 / h

Working pressure: 0.7 - 9.5 bar

Self absorption capability: 9 - 92 L / h

[Product content]

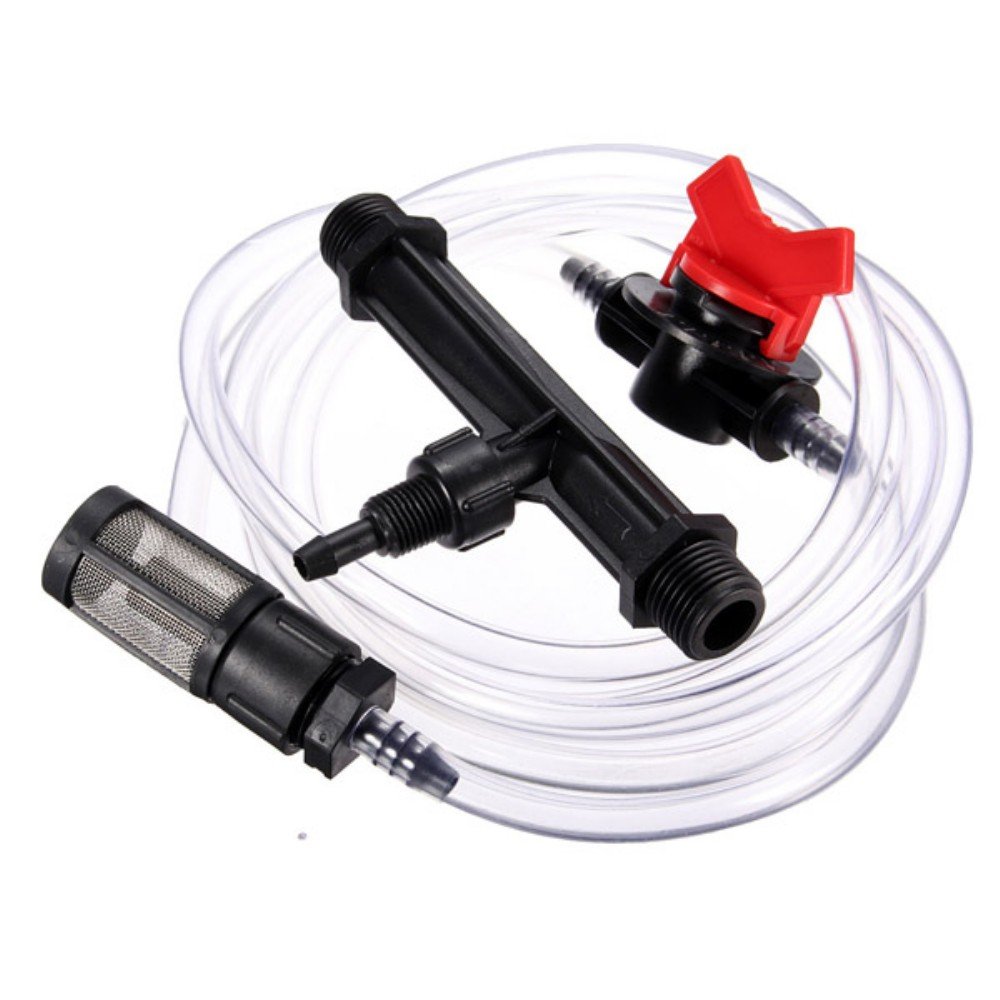

1 X 3/4 "irrigation venturi fertilizer injector

1 X Water pipe (with switch & filter)

Features:

• It was made with engineering rustic
• Excellent chemical resistance to most chemical substances
• 3/4 "Available for BSP entrance / exit connections

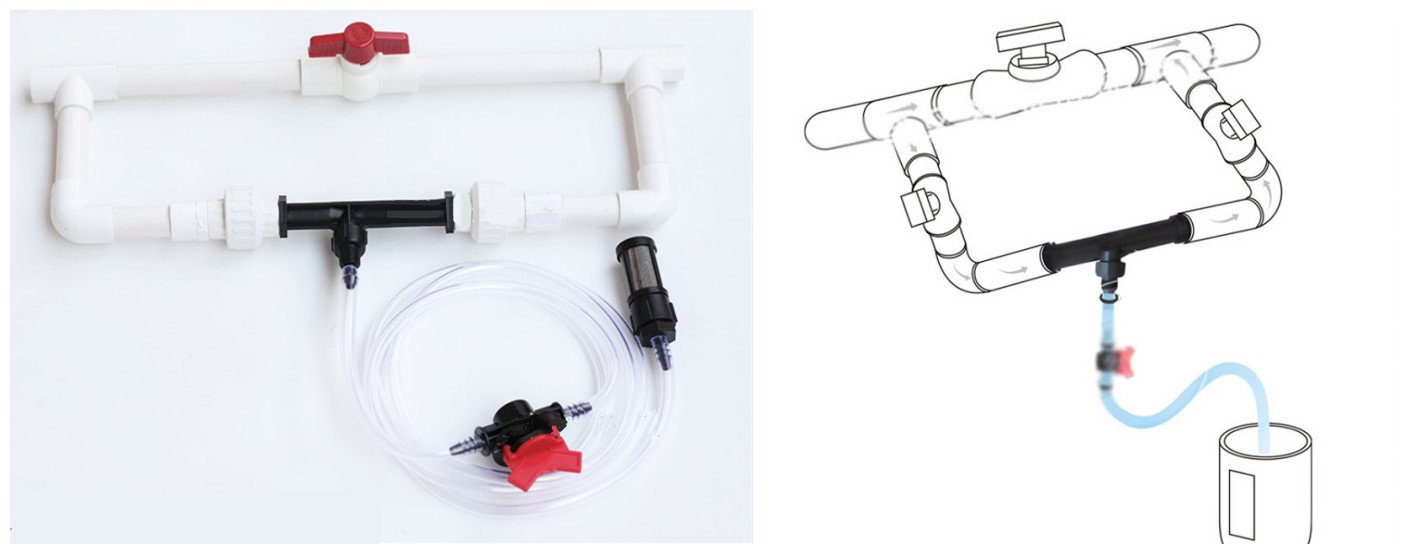

• Application: Fertilizer and chemical injection via drip or sprinkler irrigation system.
• Description of item: 1 X 3/4 "irrigation venturi fertilizer injector 1 X water pipe (with switch & filter)

Product information:

Shipping Weight: 181 g

Package Dimensions: 5.99 x 15.90 x 20.80 cm
